Front Fender Liner: Service and Repair

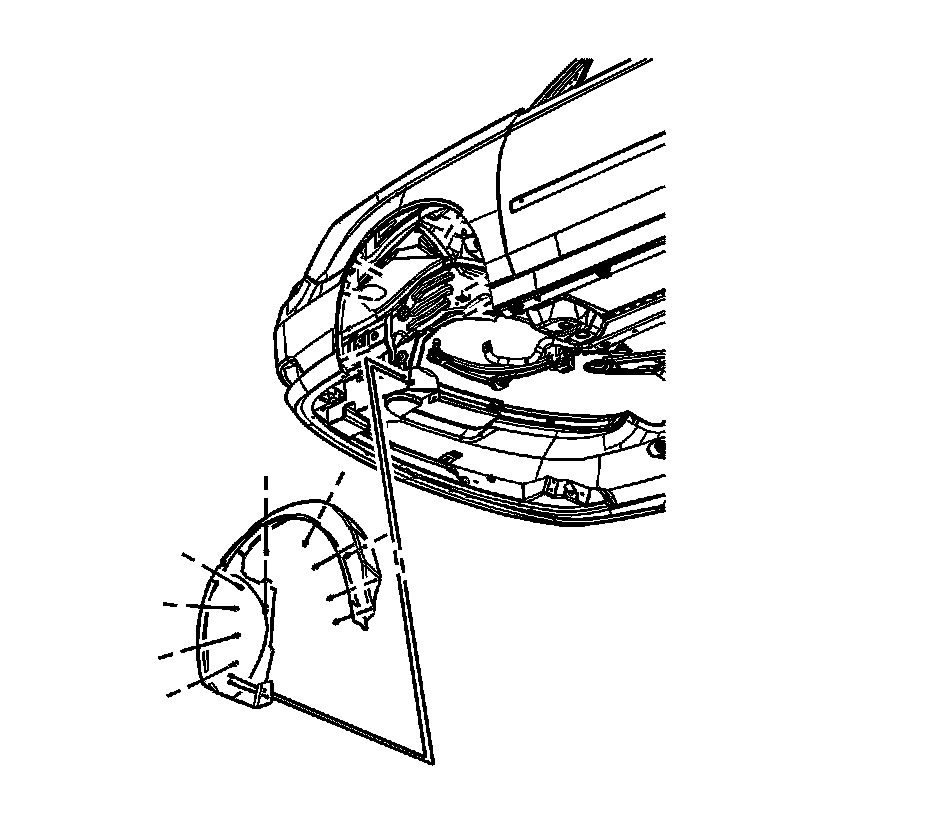

Front Fender Liner ReplacementRemoval Procedure 1.
Raise and support the vehicle. Refer to Vehicle Lifting.
2.
Remove the push-in retainers from the
front fender liner.
3.
Remove the
fender liner.
Installation Procedure 1.
Position the
front fender liner to the
fender.
2.
Install the
front fender liner with the push-in retainers.
3.
Lower the vehicle.
