Blower Motor: Service and Repair

BLOWER MOTOR REPLACEMENT

REMOVAL PROCEDURE
1. Remove the right closeout panel.
2. Remove the blower motor wire harness connector.

IMPORTANT: Cut through the case as straight as possible because the motor cup must be replaced. In order to prevent damage to the component, do not cut any deeper than necessary to remove the motor cup.

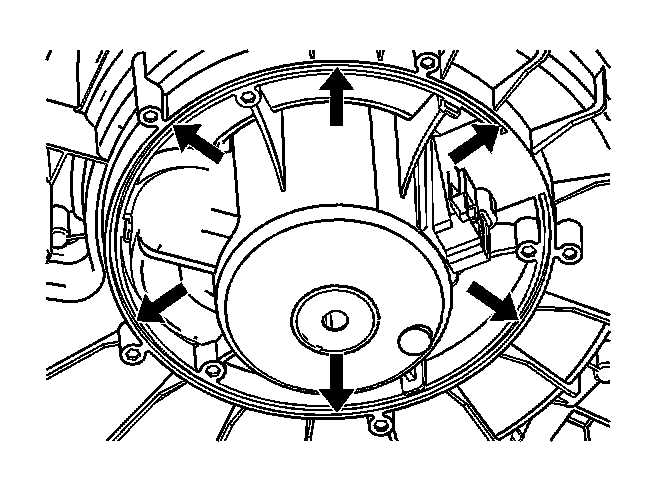

3. Cut out the blower motor using a utility knife in the narrow groove of the lower case.

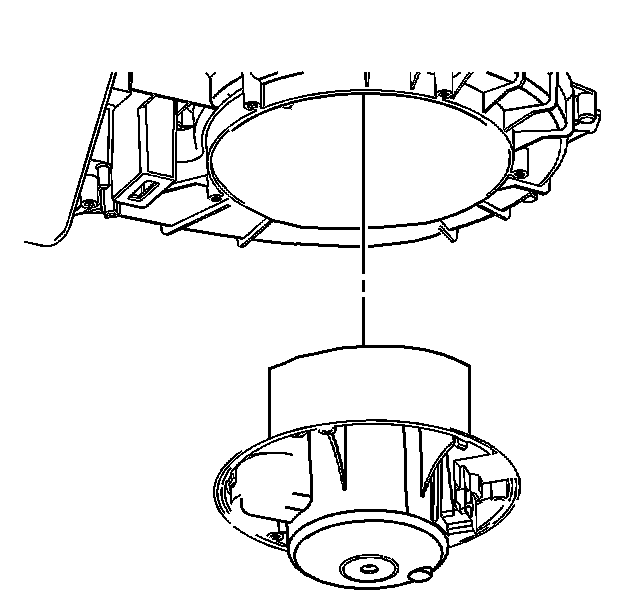

4. Remove the blower motor.

INSTALLATION PROCEDURE
1. Install the motor blower seal.

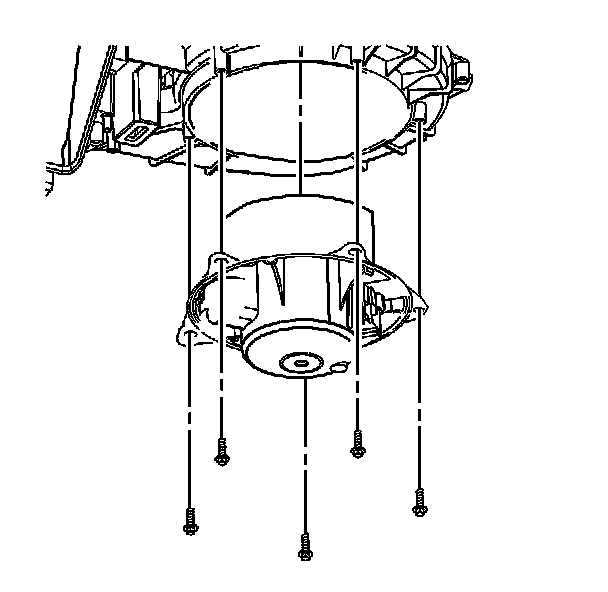

2. Install the blower motor.

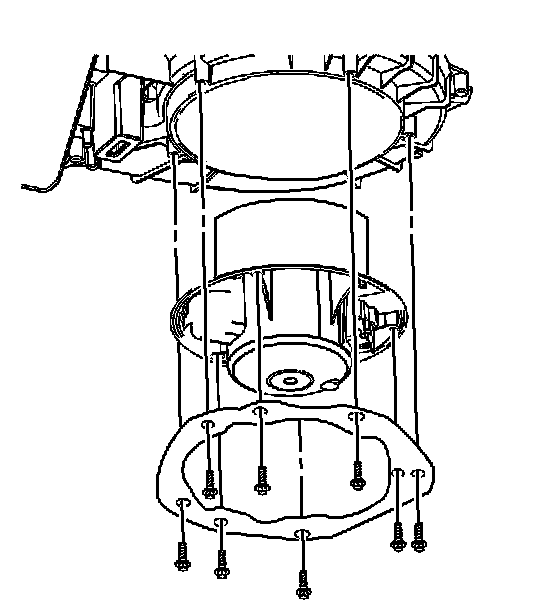

3. Install the blower motor attachment ring if reusing the blower motor.

NOTE: Refer to Fastener Notice in Service Precautions.

4. Tighten the blower motor screws.

Tighten
Tighten the screws to 1.5 N.m (13 lb in).

5. Install the blower motor wire harness connector.
6. Install the right closeout panel.
