Battery Tray Replacement
BATTERY TRAY REPLACEMENTREMOVAL PROCEDURE 1.

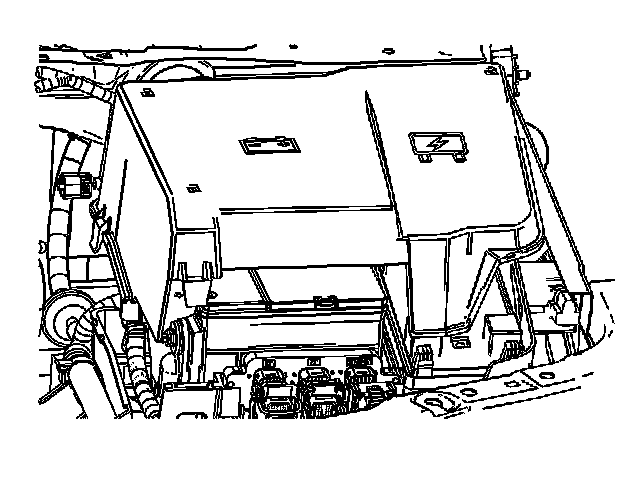

Remove the
battery tray cover and the battery.
2.

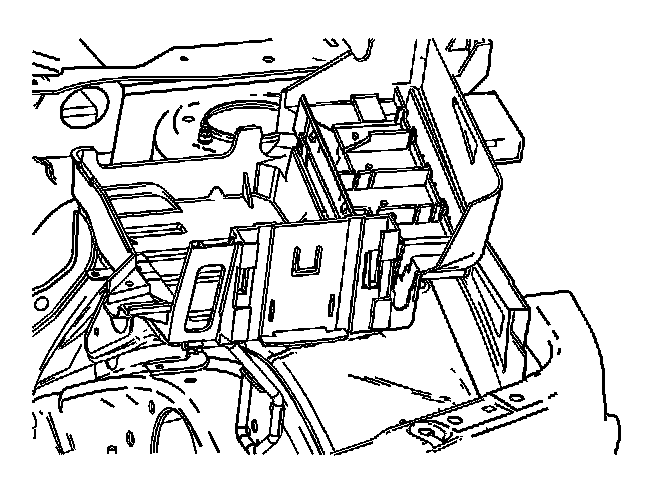

Remove the
battery tray bolts and remove the battery tray.
INSTALLATION PROCEDURE NOTE: Refer to Fastener Notice in Service Precautions.
1.

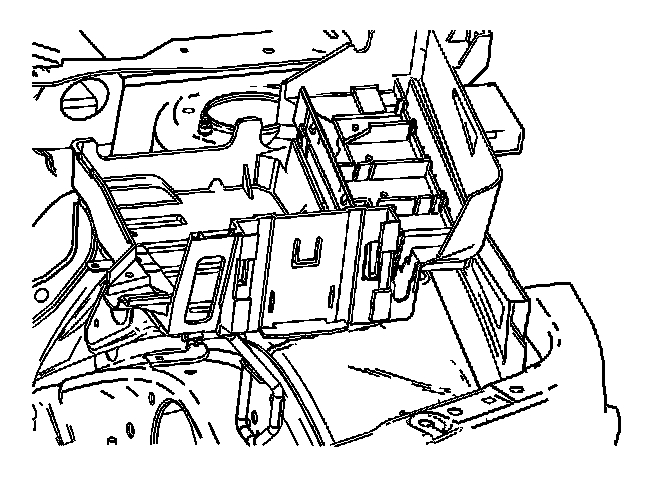

Position the battery bracket and tighten the bolts.
Tighten Tighten the
battery tray bracket bolts to
16 N.m (12 lb ft).
2.

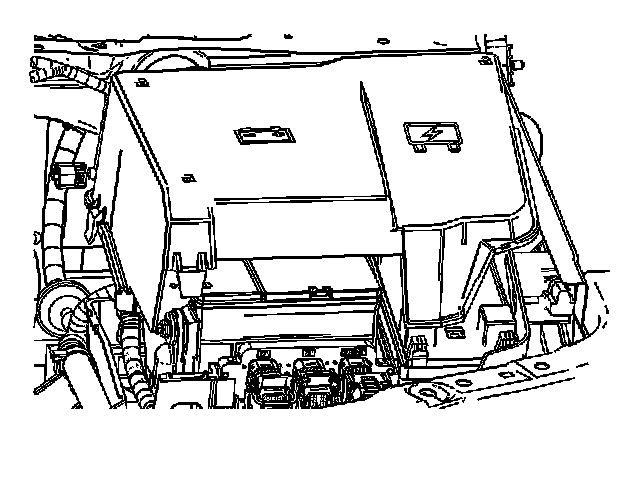

Install the battery and
battery tray cover.
