Home
>>
Chevrolet
>>
2004
>>
Malibu V6-3.5L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Crankshaft, Engine
Crankshaft, Engine

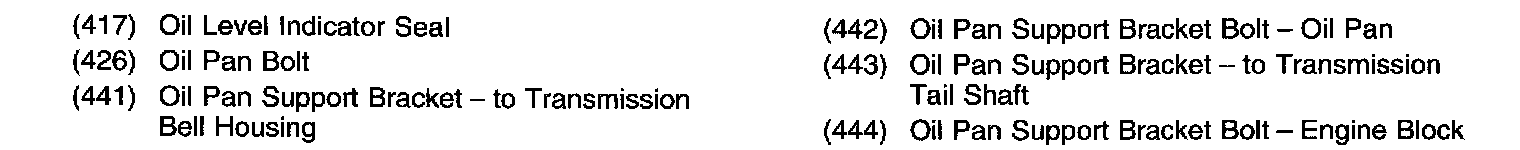

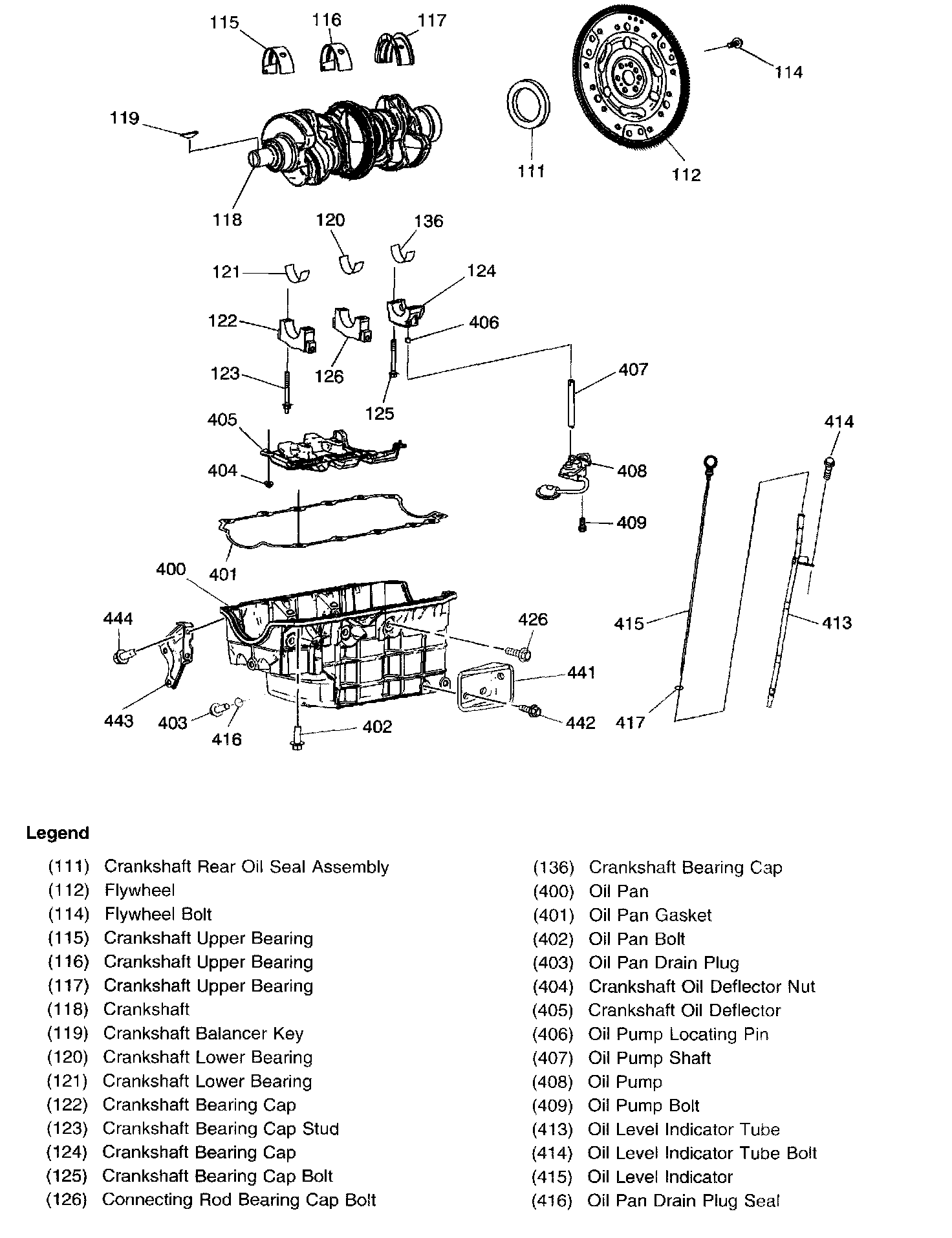

Disassembled Views
Crankshaft
and Components
