Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2004
>>
S10/T10 P/U 4WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Parking Lamp
>>
Diagrams
>>
Connector Views
Connector Views

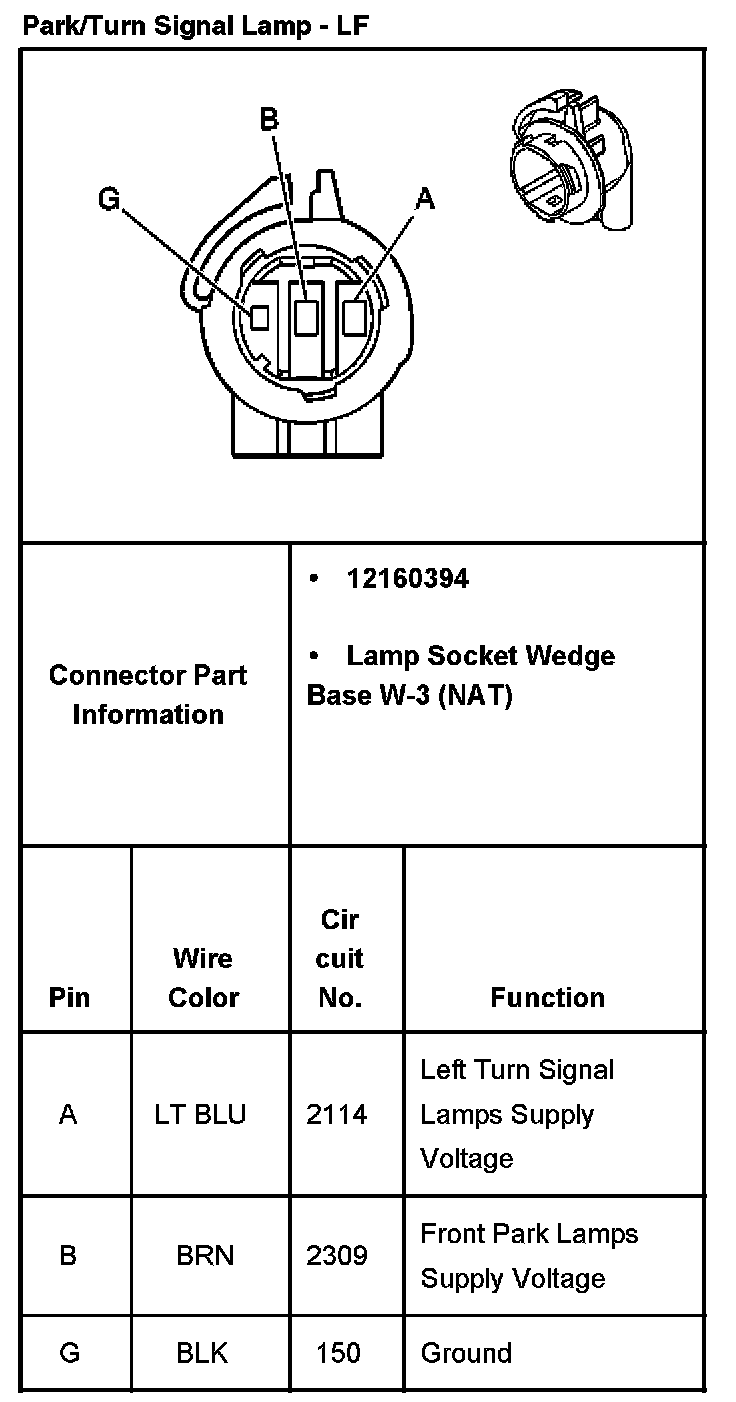

Park/Turn Signal Lamp - LF:
Park/Turn Signal Lamp - LR:
Park/Turn Signal Lamp - RF:
Park/Turn Signal Lamp - RR:
