Front Fender Liner: Service and Repair

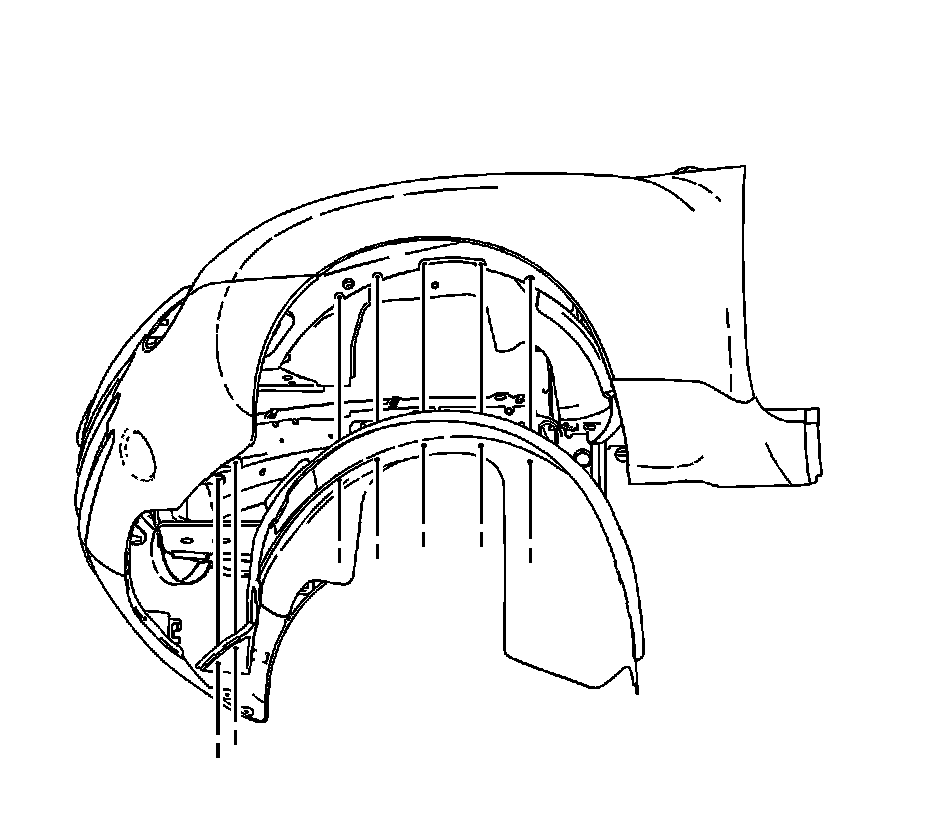

Wheelhouse Liner Replacement - Front

Removal Procedure





1. Remove the pushpins from the wheelhouse liner.
2. Remove the bolt that retains the wheelhouse liner to the rocker molding.




3. Remove the wheelhouse liner from the vehicle.



Installation Procedure





1. Install the wheelhouse liner to the vehicle.




2. Install the pushpins that retain the wheelhouse liner to the body.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the bolt that retains the wheelhouse liner to the rocker molding.

Tighten the bolt to 10 N.m (89 lb in).
