Crossmember Brace Replacement - Front



Crossmember Brace Replacement - Front

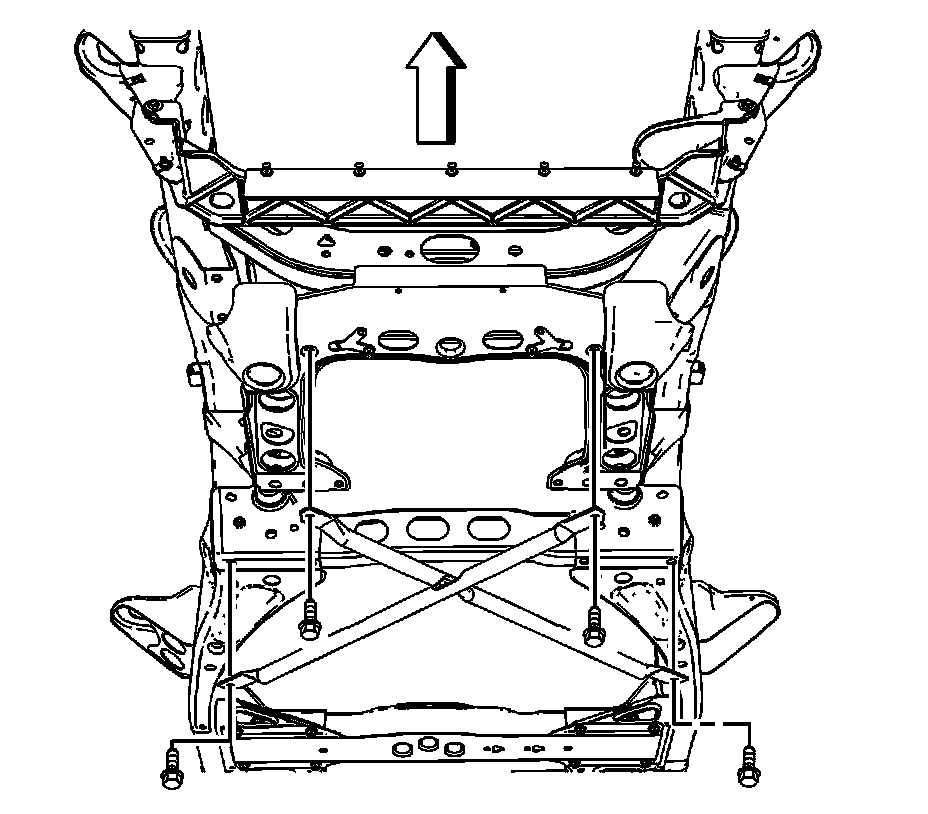

Removal Procedure





1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
2. Remove the front crossmember brace attaching bolts.
3. Remove the front crossmember brace from the frame.



Installation Procedure





1. Install the front crossmember brace to the frame.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the front crossmember brace attaching bolts.

Tighten the bolts to 50 N.m (37 lb ft).

3. Lower the vehicle.
