Keyless Entry Transmitter Battery: Service and Repair

TRANSMITTER BATTERY REPLACEMENT

REMOVAL PROCEDURE

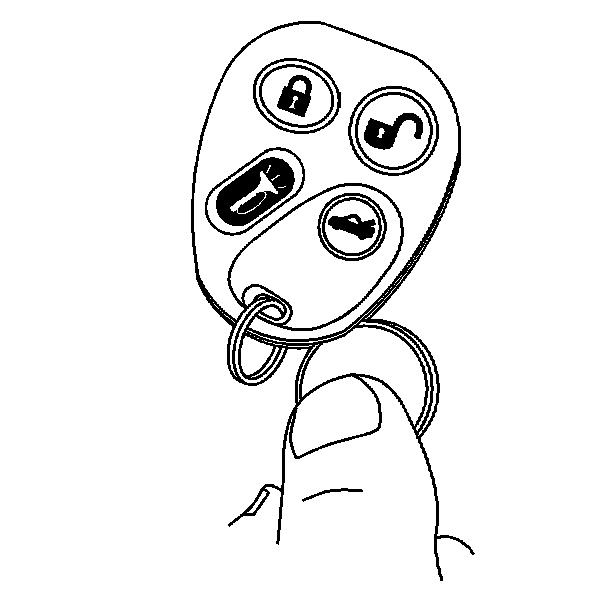

1. Insert a small coin between the 2 halves of the transmitter case at the slot provided near the key ring hole.
2. Twist the coin in order to open the case.

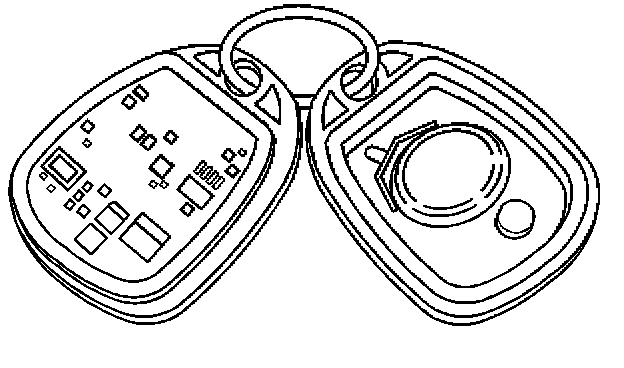

3. Open the transmitter case.

NOTE: Refer to Handling ESD Sensitive Parts Notice in Service Precautions.

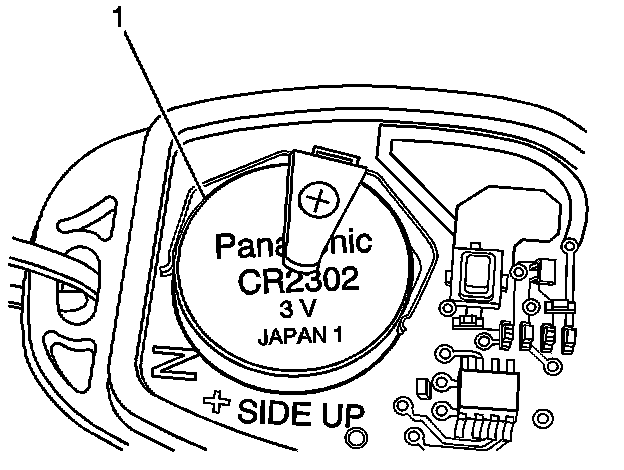

4. Remove the battery (1).

INSTALLATION PROCEDURE




1. Install the battery with the positive (+) side up. Use one 3 volt, type CR2032 battery, or the equivalent.
2. Ensure that the seal is in position.

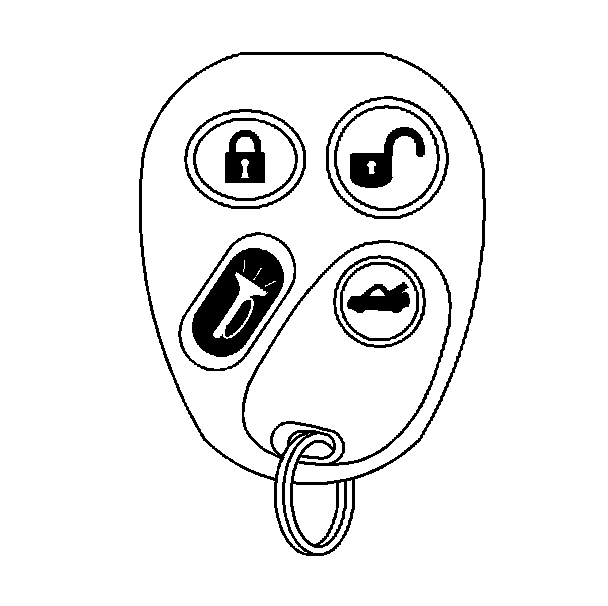

3. Align the 2 halves of the case together and squeeze the case closed until the tabs are fully seated.
