Passenger Seat Components
Passenger Seat Components

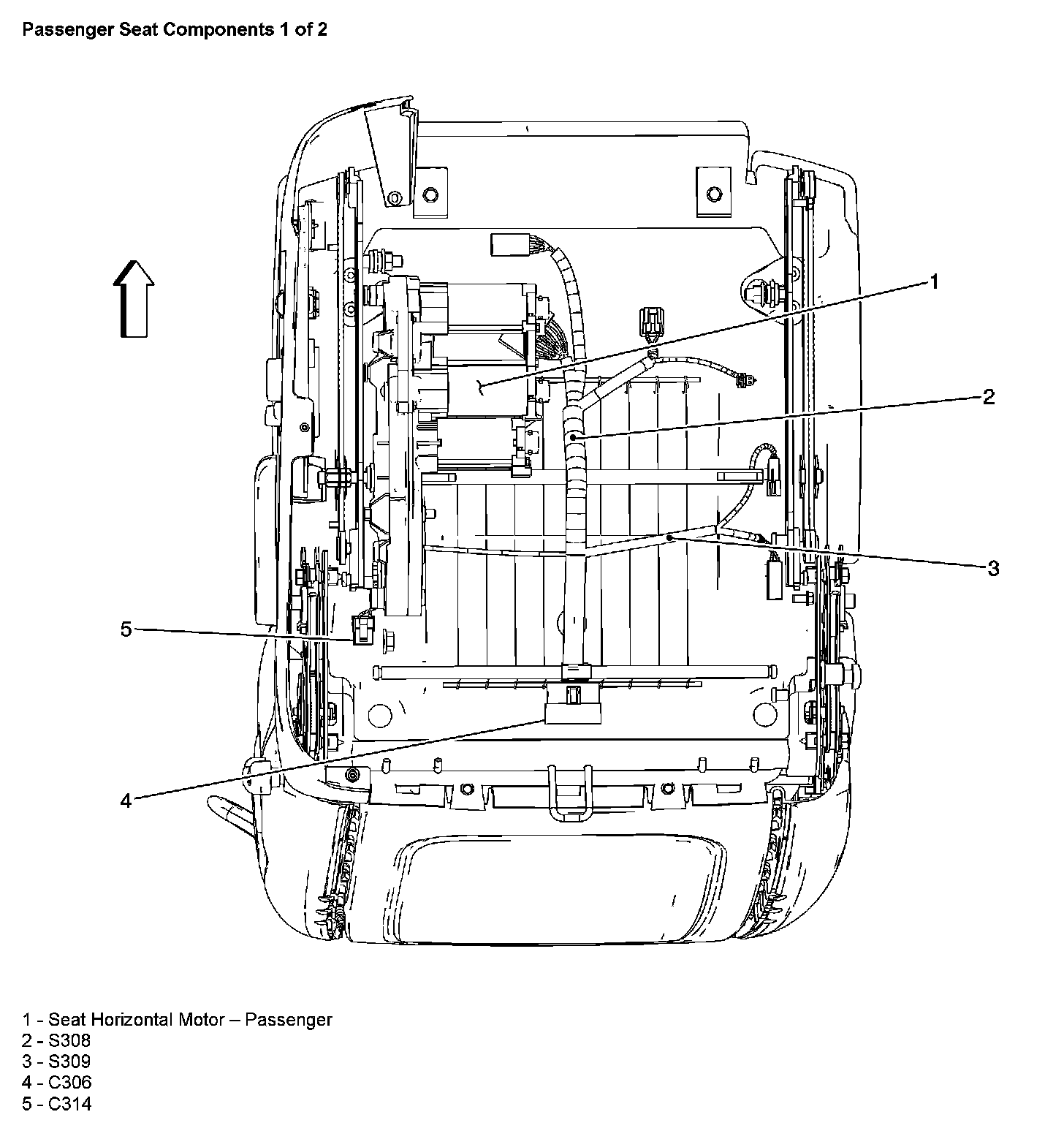

Passenger Seat Components (1 of 2):

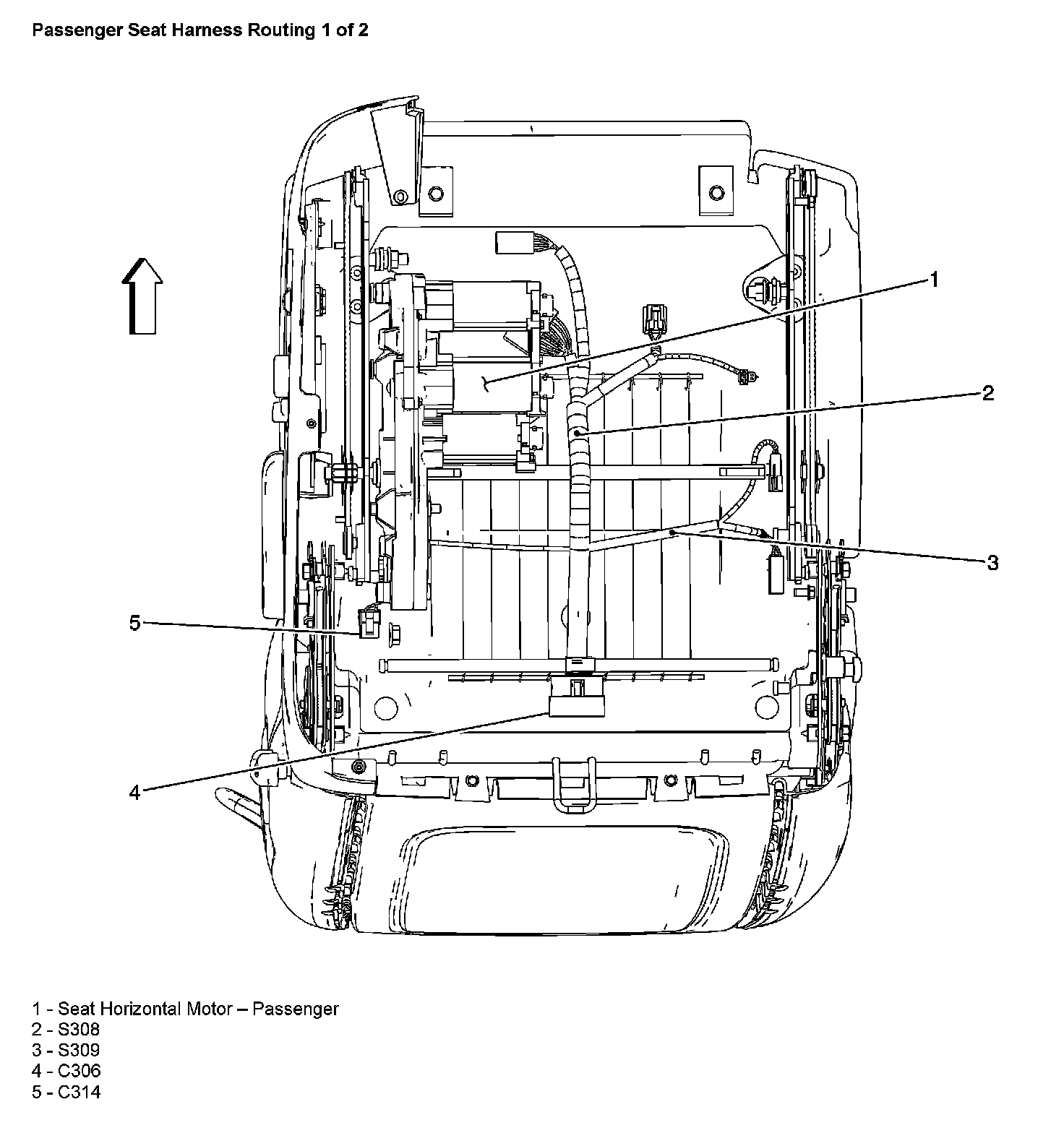

Passenger Seat Harness Routing (1 of 2):
