Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2004
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Power Seat Switch
>>
Locations
Power Seat Switch: Locations
Driver Seat Base Level Component Views:

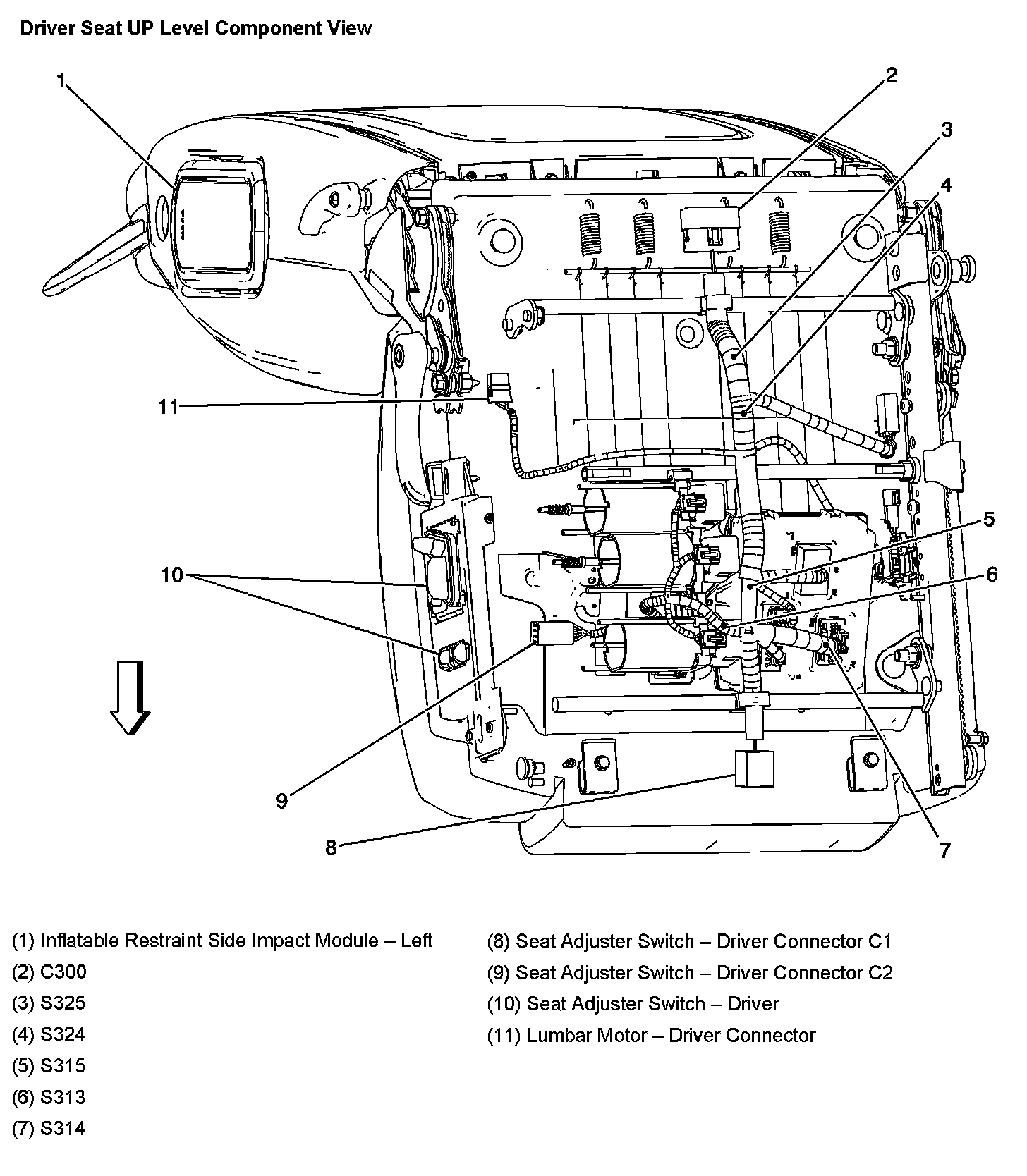

Driver Seat UP Level Component View:

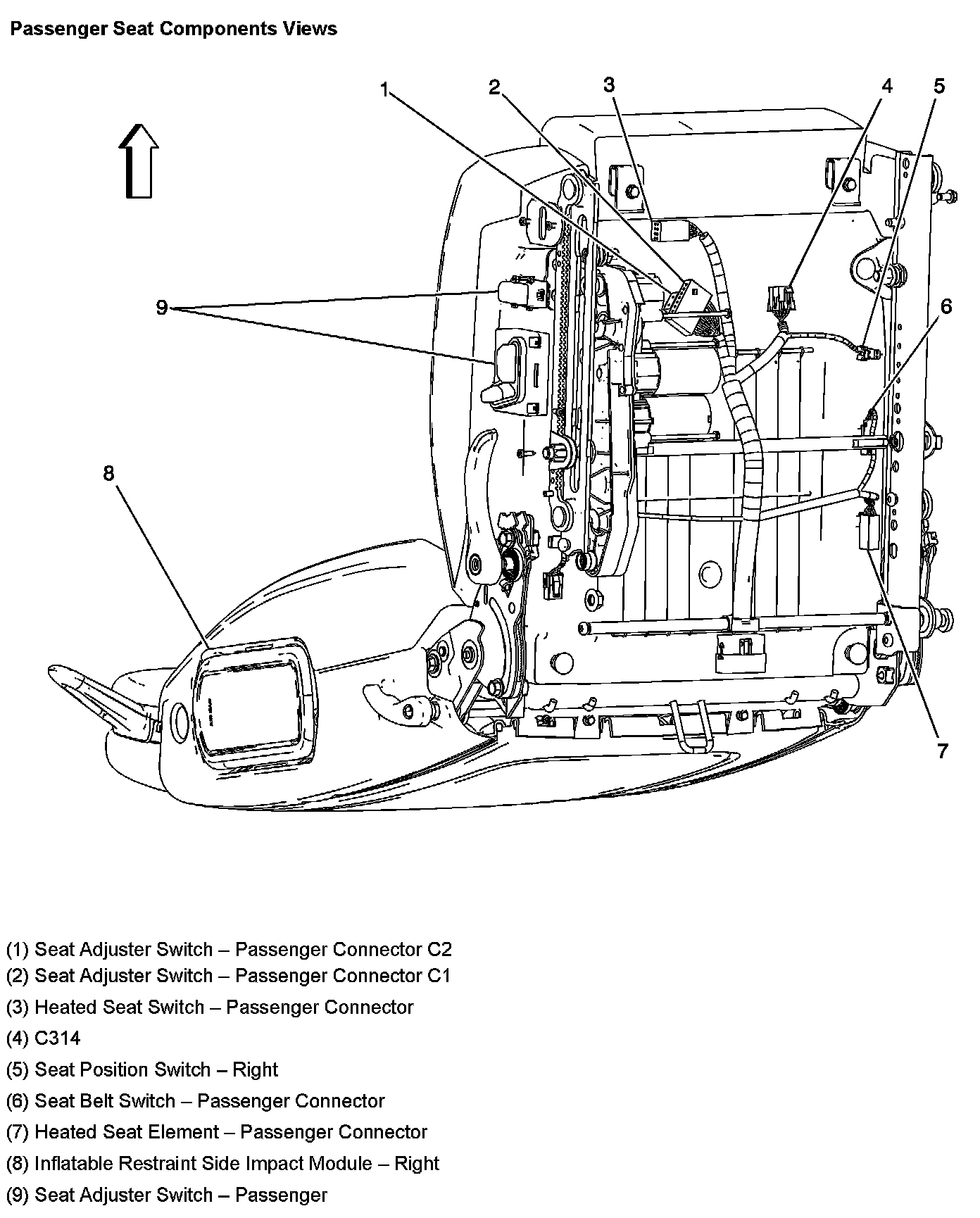

Passenger Seat Components Views:
