Finish Panel Replacement - Front Seat - Front



Finish Panel Replacement - Front Seat - Front

Removal Procedure

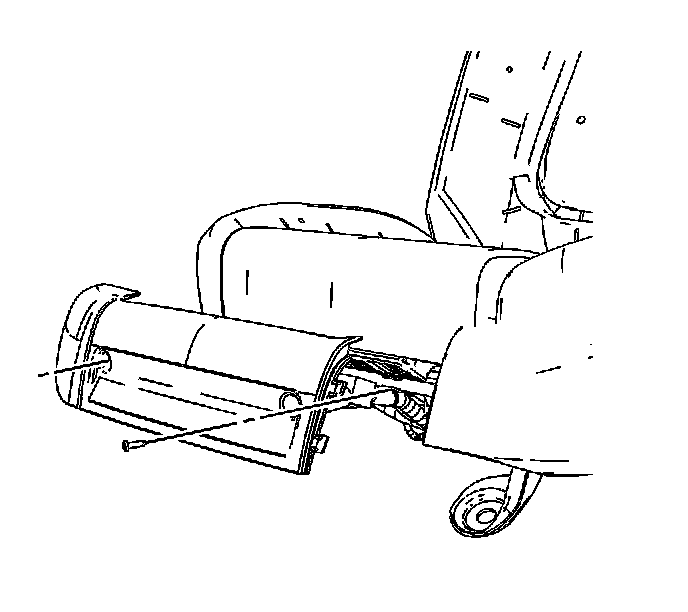

1. Remove the 2 front finish panel screws.
2. Pull the inboard edge of the panel out to release the retaining clip.
3. Remove the tabs from the slots in the outer trim panel.
4. Remove the front finish panel from the seat assembly.



Installation Procedure





1. Align the front finish panel to the seat assembly by hooking the tabs into the slots in the outer trim panel.
2. Align and install the inboard clip in the slot on the seat frame.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the 2 screws retaining the front finish panel to the seat assembly.

Tighten the front finish panel screws to 1.5 N.m (13 lb in).
