Hinge Cover Replacement - End Gate



Hinge Cover Replacement - End Gate

Removal Procedure

1. Open the rear compartment lid.




2. Lower the endgate.

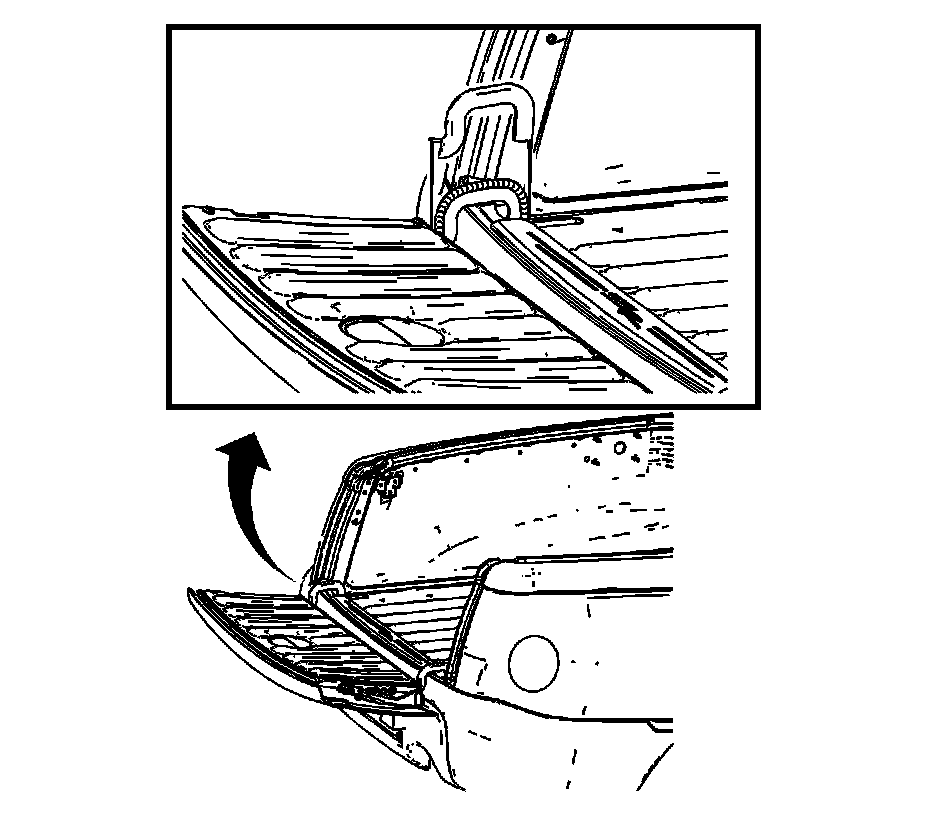

3. Grasp firmly onto the endgate hinge cover.




4. Pull upward to remove the endgate hinge cover from the hinge.



Installation Procedure

1. Ensure the center high mounted stop lamp (CHMSL) wiring is routed on the hinge properly.

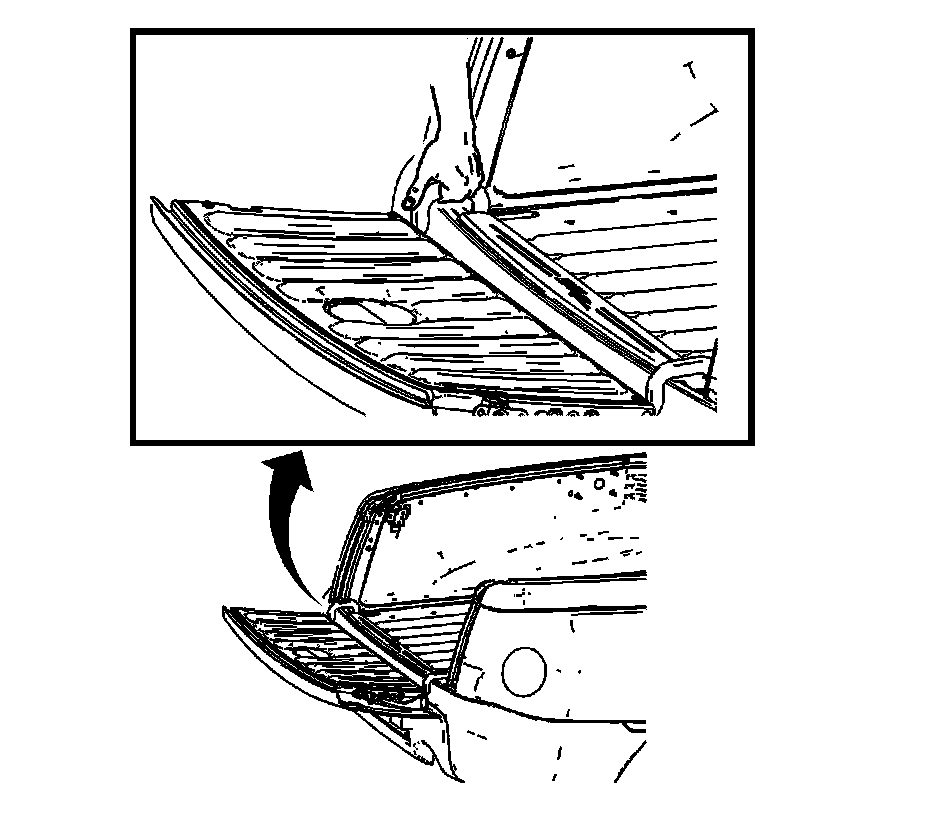

2. Align the endgate hinge cover to the hinge.




3. Push down firmly to seat the endgate hinge cover to the hinge.
4. Close the rear compartment lid.
5. Close the endgate.
