Traction Control Switch: Service and Repair

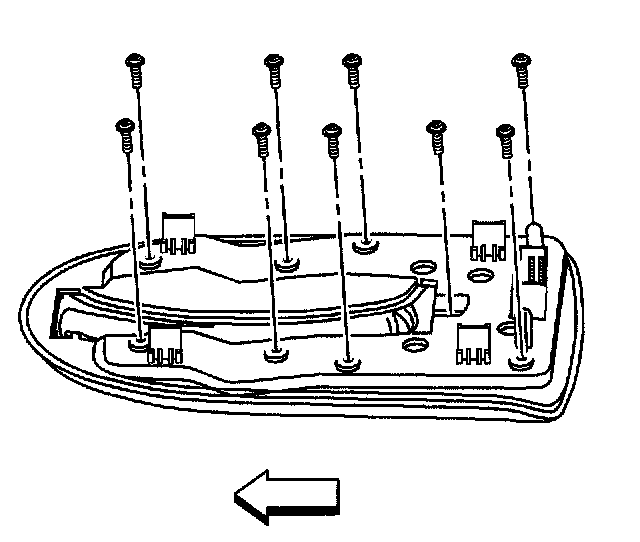

Traction Control Switch ReplacementRemoval Procedure
1. Remove the console shift lever bezel from the, console.

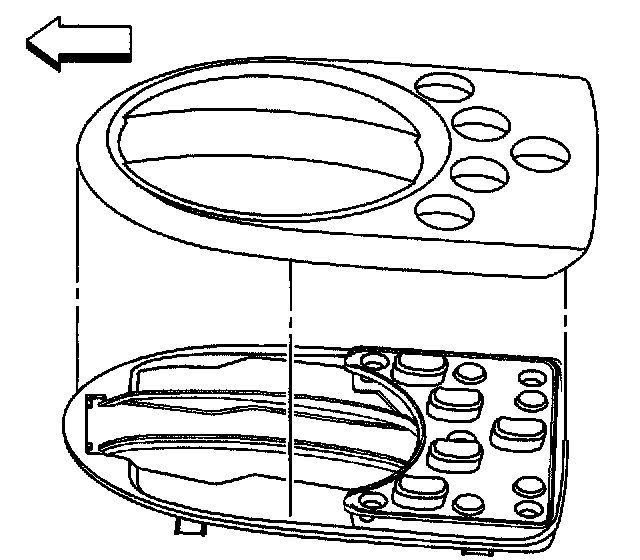

2. Remove the fasteners from the console shift bezel.
3. Remove the console shift bezel.

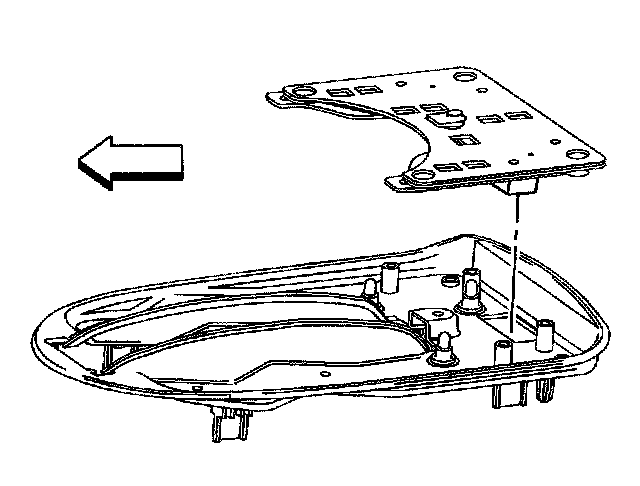

4. Remove the shift bezel switch membrane.

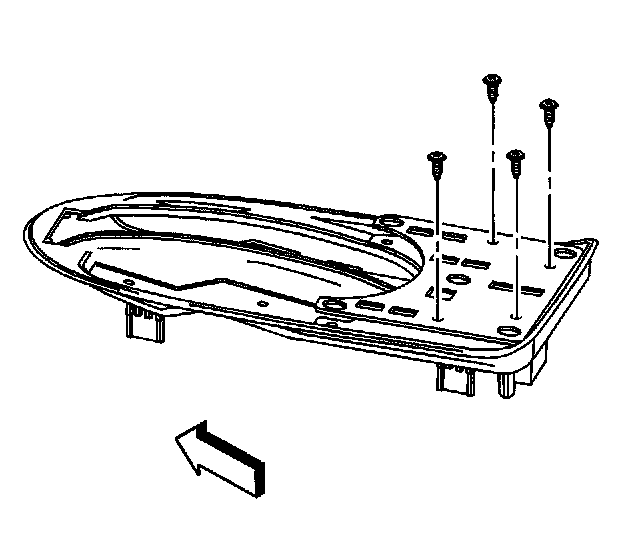

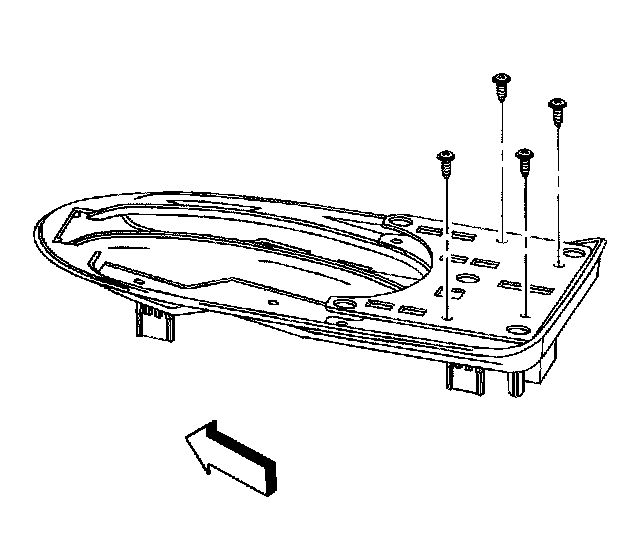

5. Remove the shift bezel switch assembly screws.
6. Remove the shift bezel switch assembly.
Installation Procedure

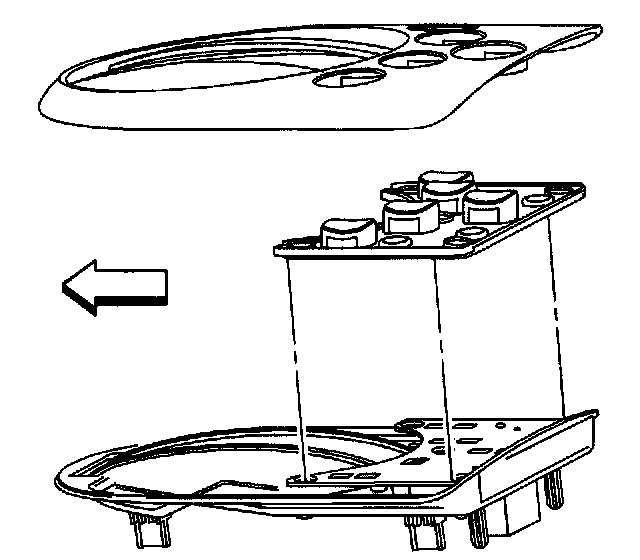

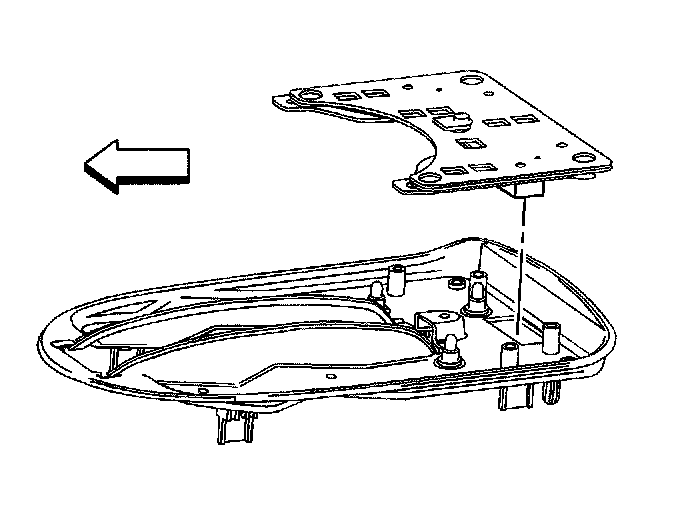

1. Install the shift bezel switch assembly into the console bezel.
Notice: Refer to Fastener Notice in Service Precautions.
2. Install the shift bezel switch assembly screws.
Tighten the fasteners to 2 Nm (18 inch lbs.).

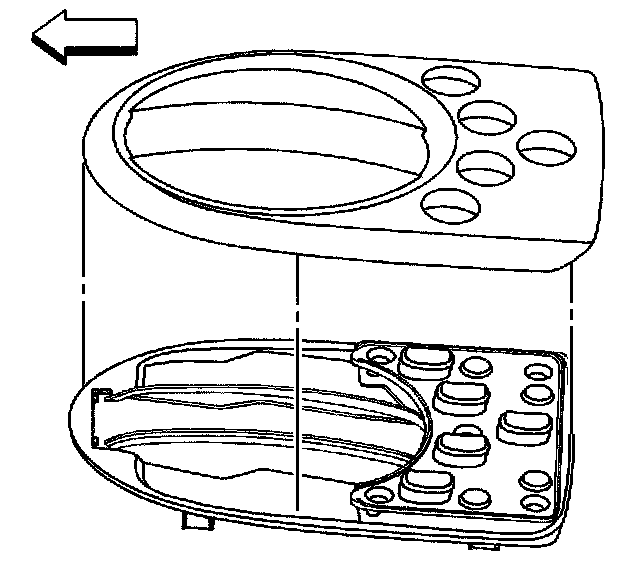

3. Install the shift bezel switch membrane.
4. Install the console shift bezel.

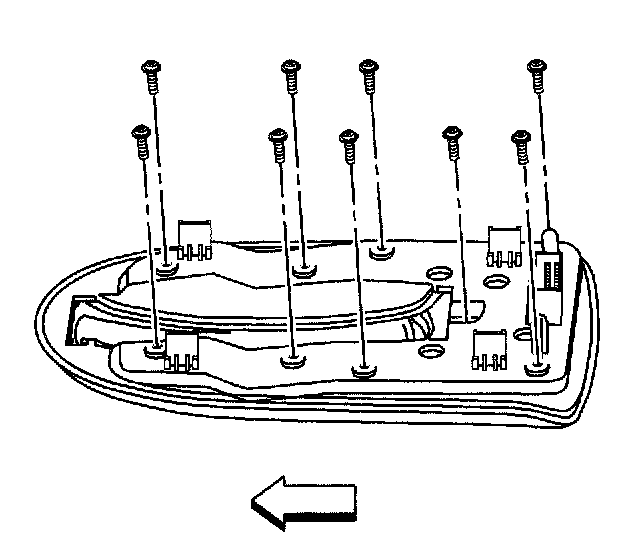

5. Install the console shift bezel fasteners.
Tighten the fasteners to 2 Nm (18 inch lbs.).
6. Install the console shift lever bezel to the console.
