Automatic Transmission/Transaxle
>>
Shift Interlock, A/T
Shift Interlock, A/T
Automatic Transmission Shift Lock Control Connector End Views

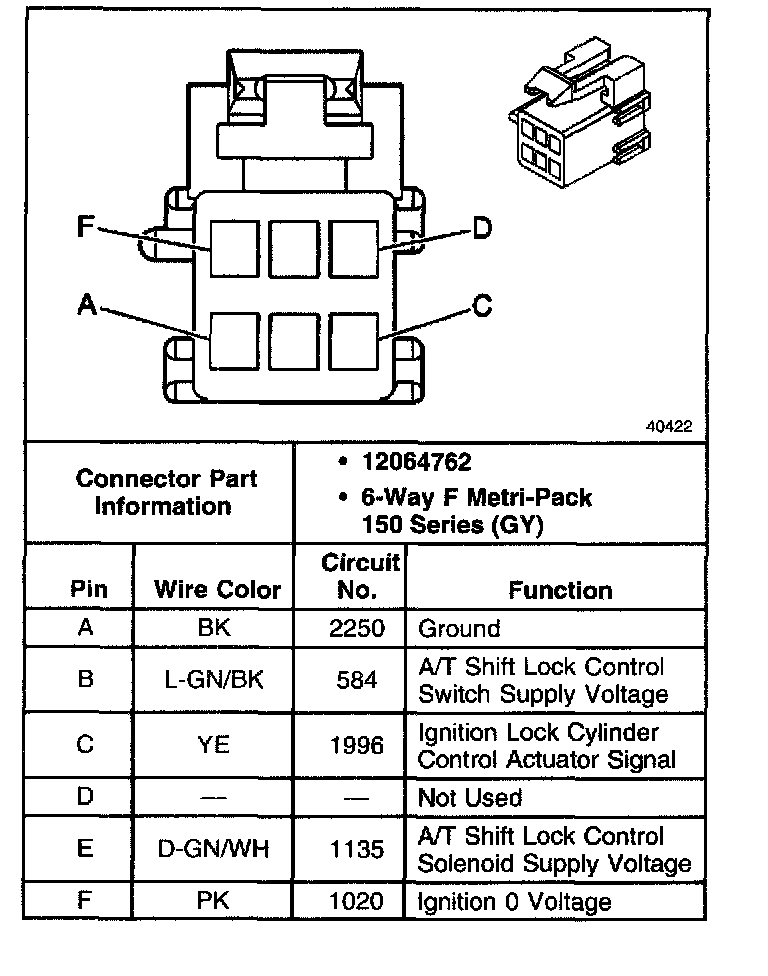

Automatic Transmission Shift Lock Actuator

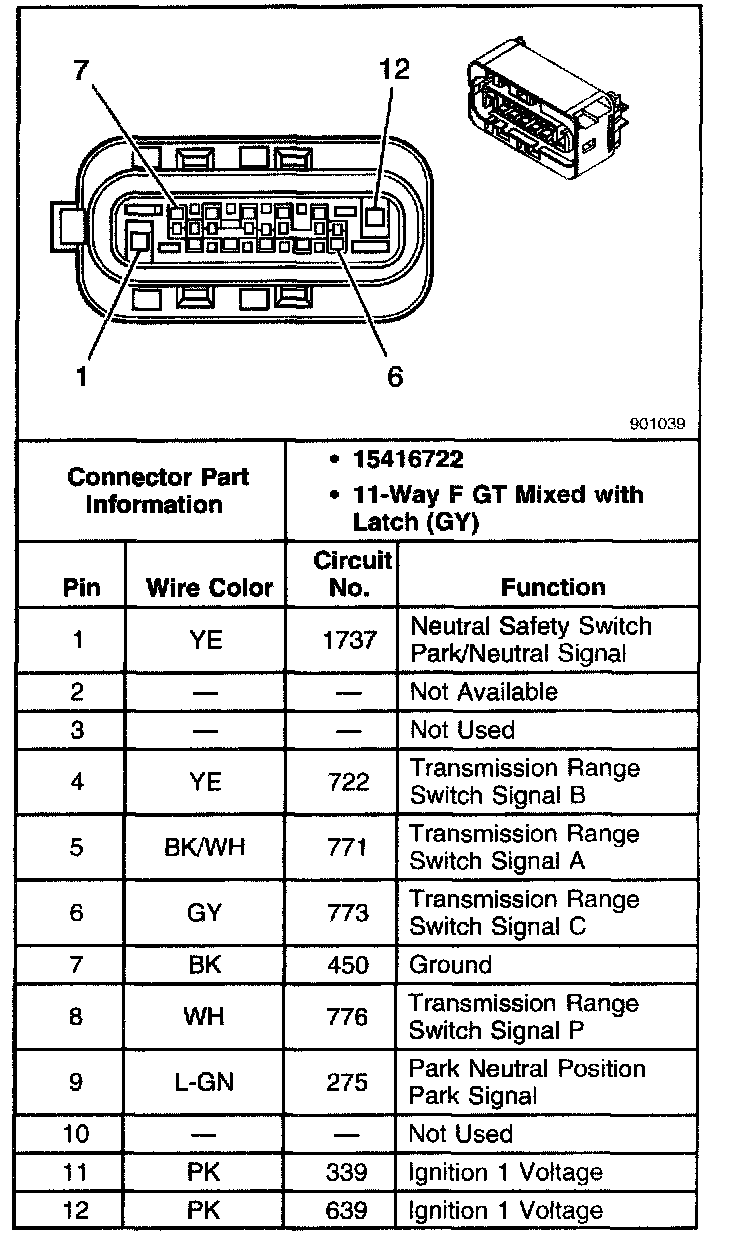

Park Neutral Position Switch (PNP)
