Auxiliary Power Outlet

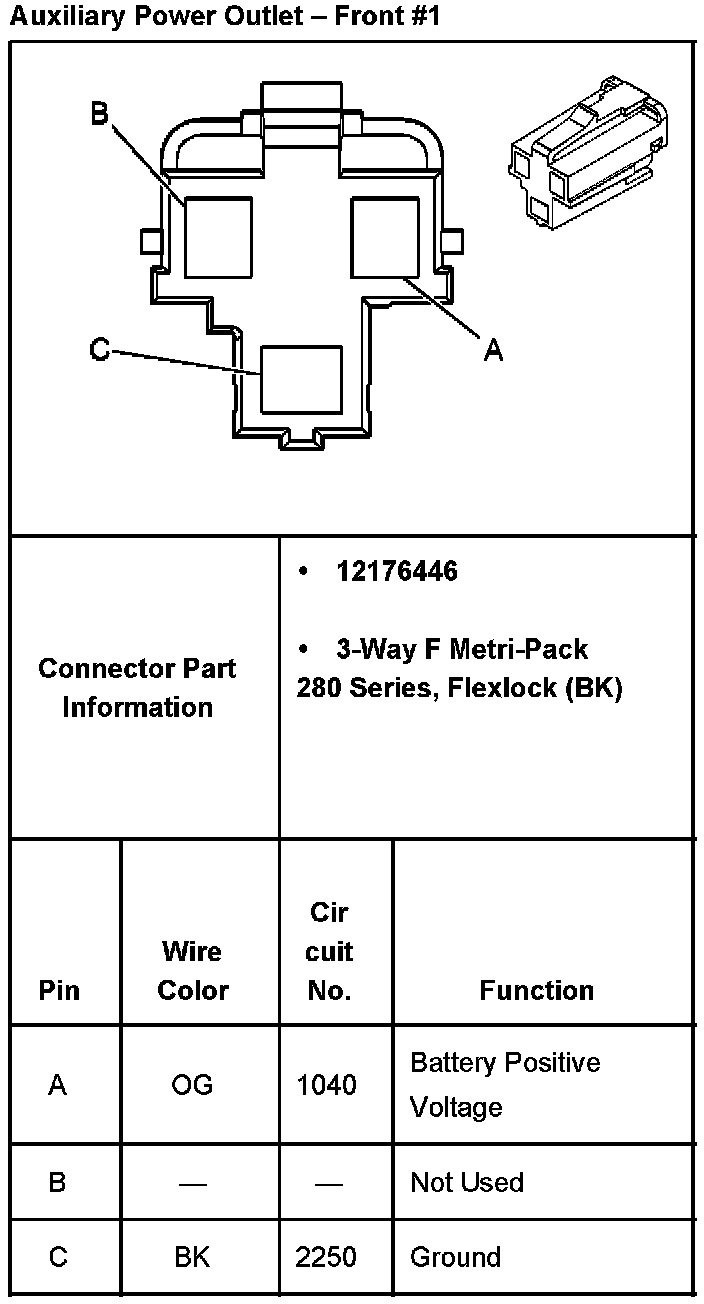

Auxiliary Power Outlet - Front #1:

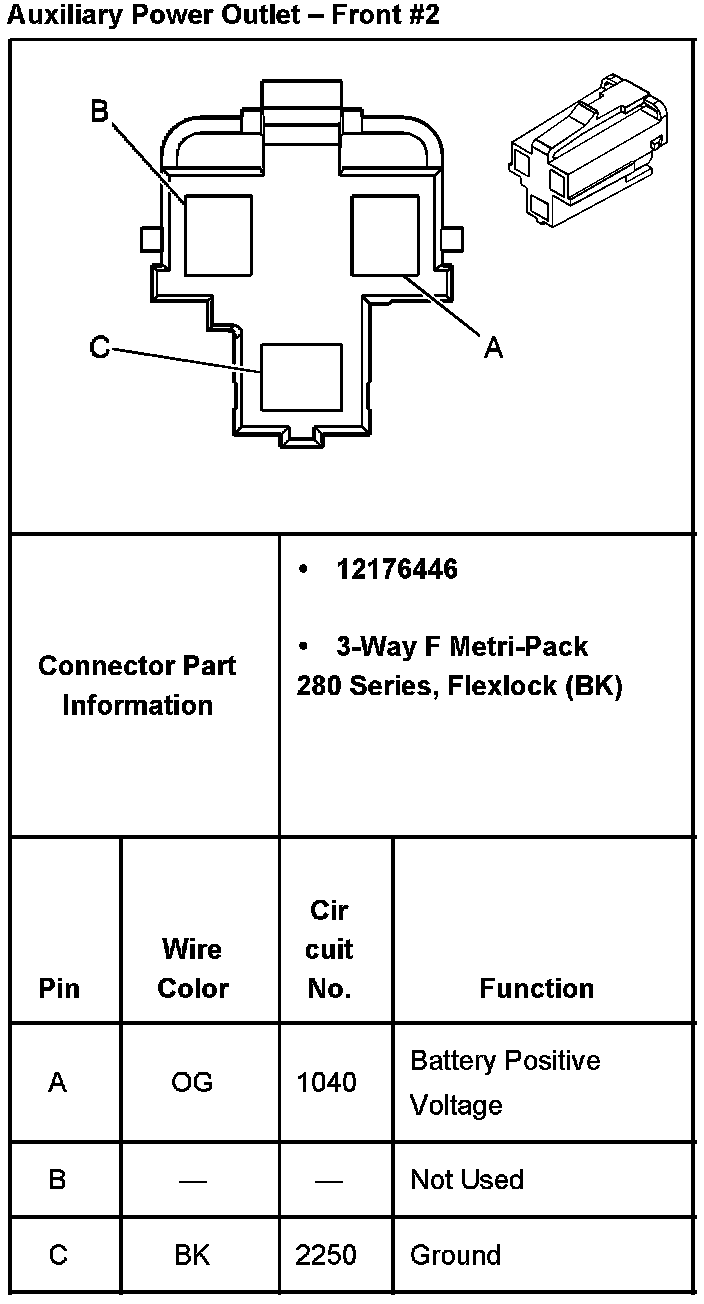

Auxiliary Power Outlet - Front #2:

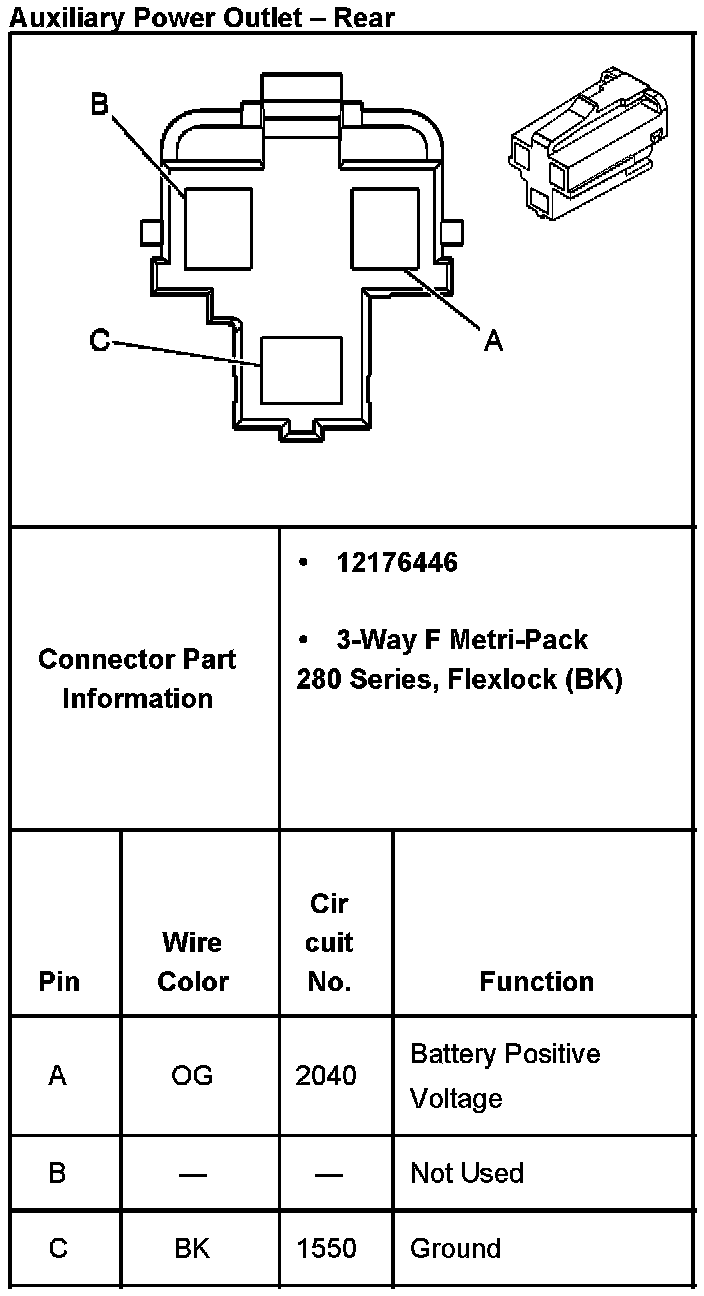

Auxiliary Power Outlet - Rear:
