Convertible Top Deck Lid Position Switch / Sensor

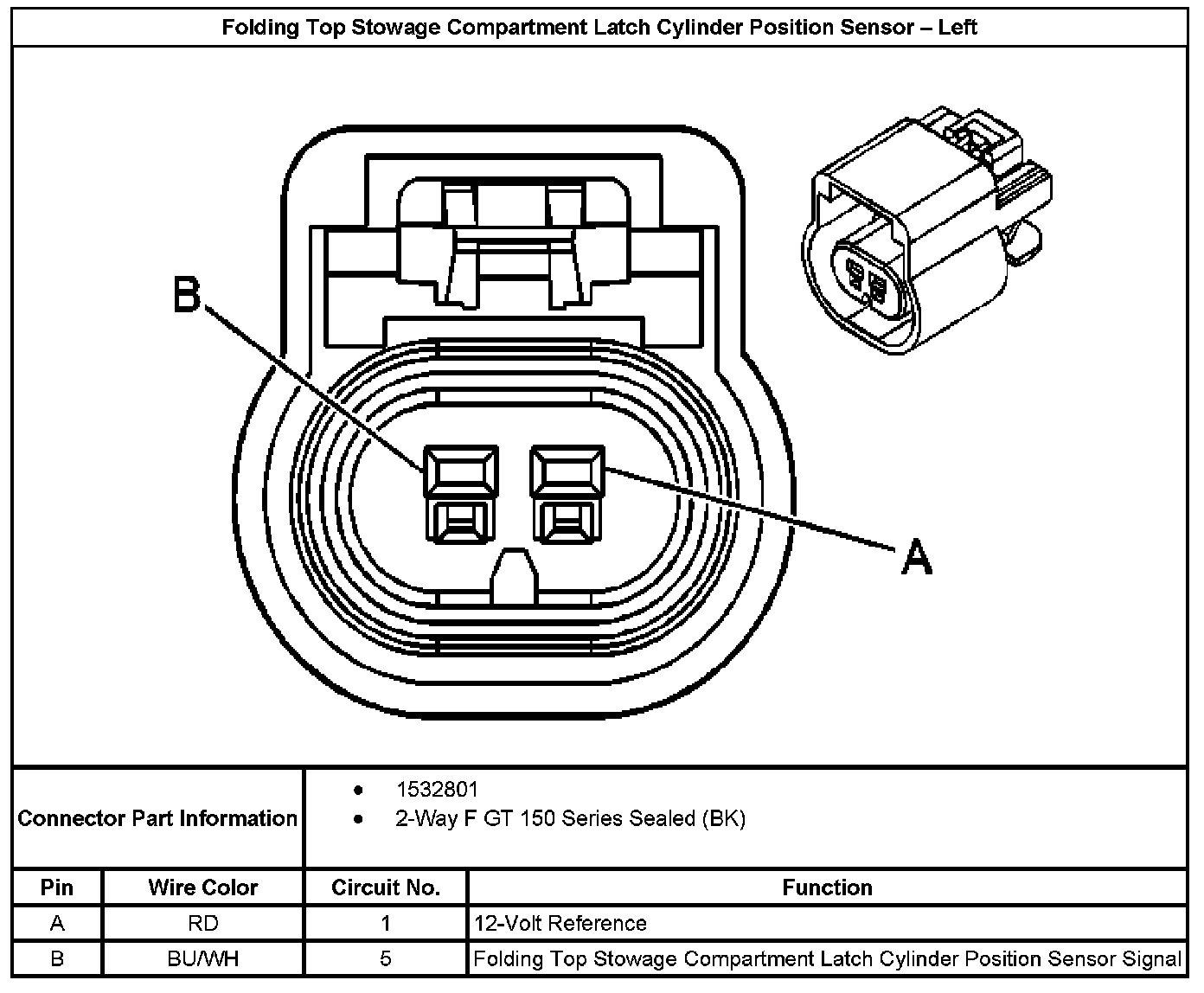

Folding Top Stowage Compartment Latch Cylinder Position Sensor - Left:

Convertible Top Deck Lid Position Switch / Sensor

Folding Top Stowage Compartment Latch Cylinder Position Sensor - Left:

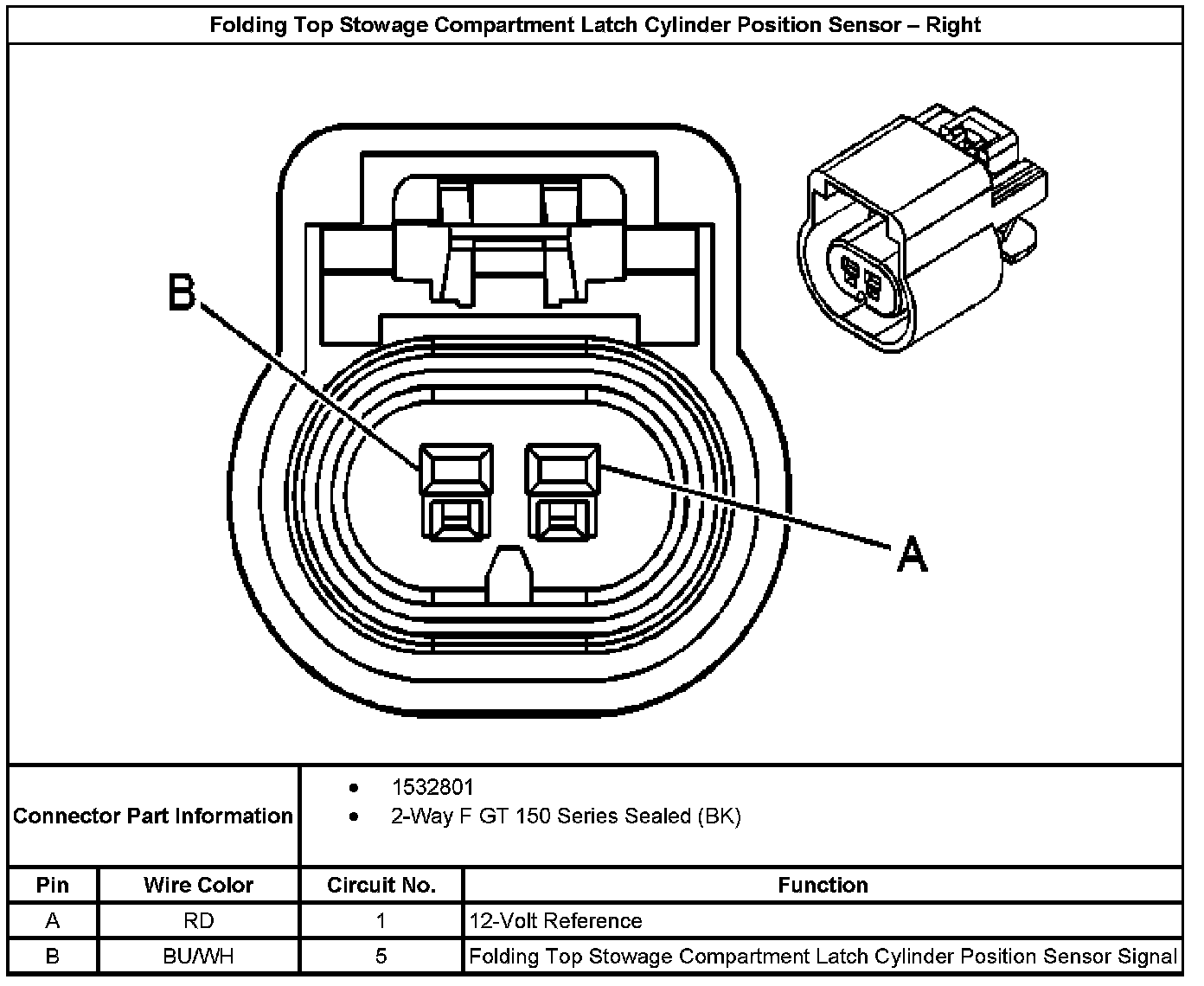

Folding Top Stowage Compartment Latch Cylinder Position Sensor - Right:

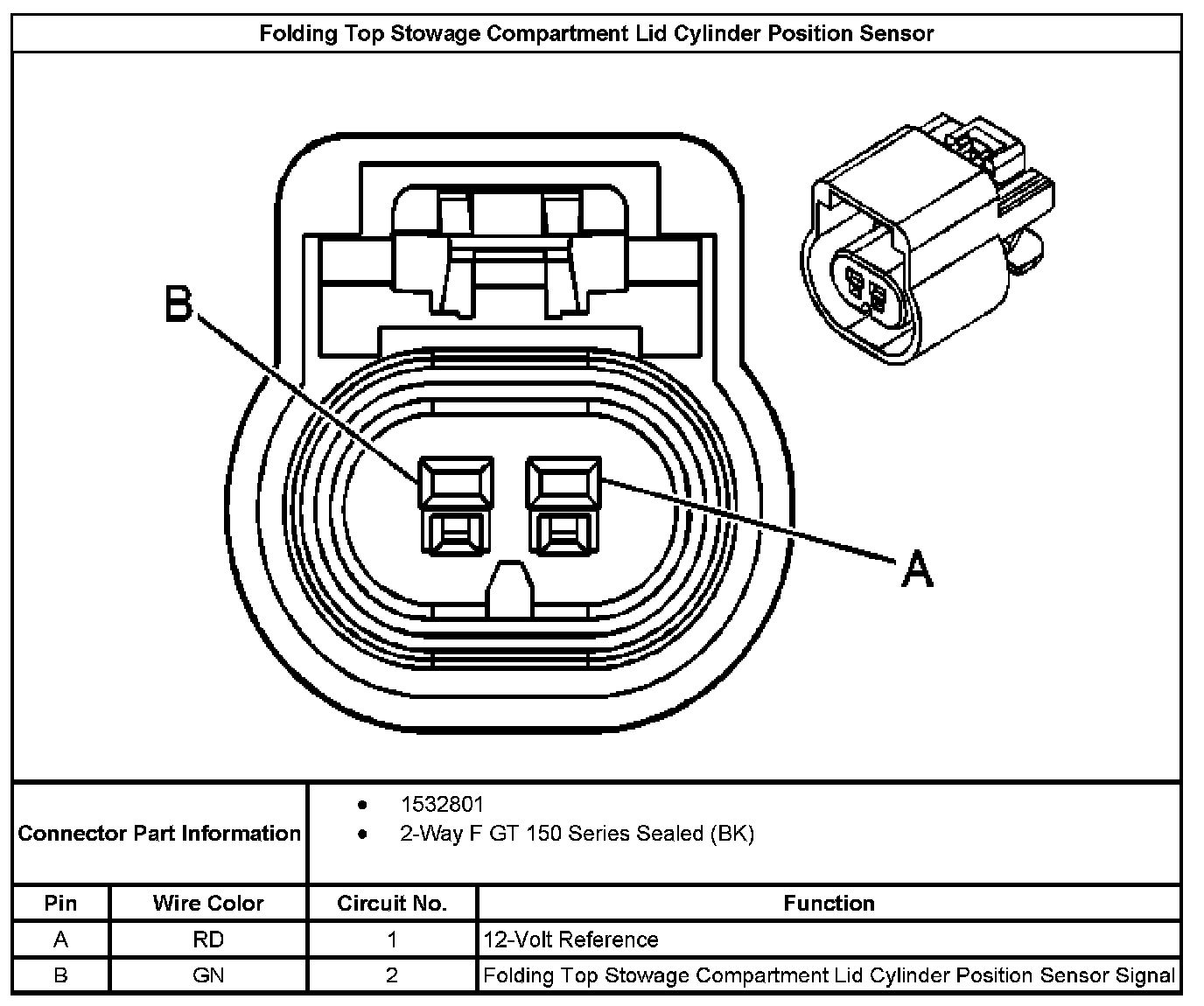

Folding Top Stowage Compartment Lid Cylinder Position Sensor:

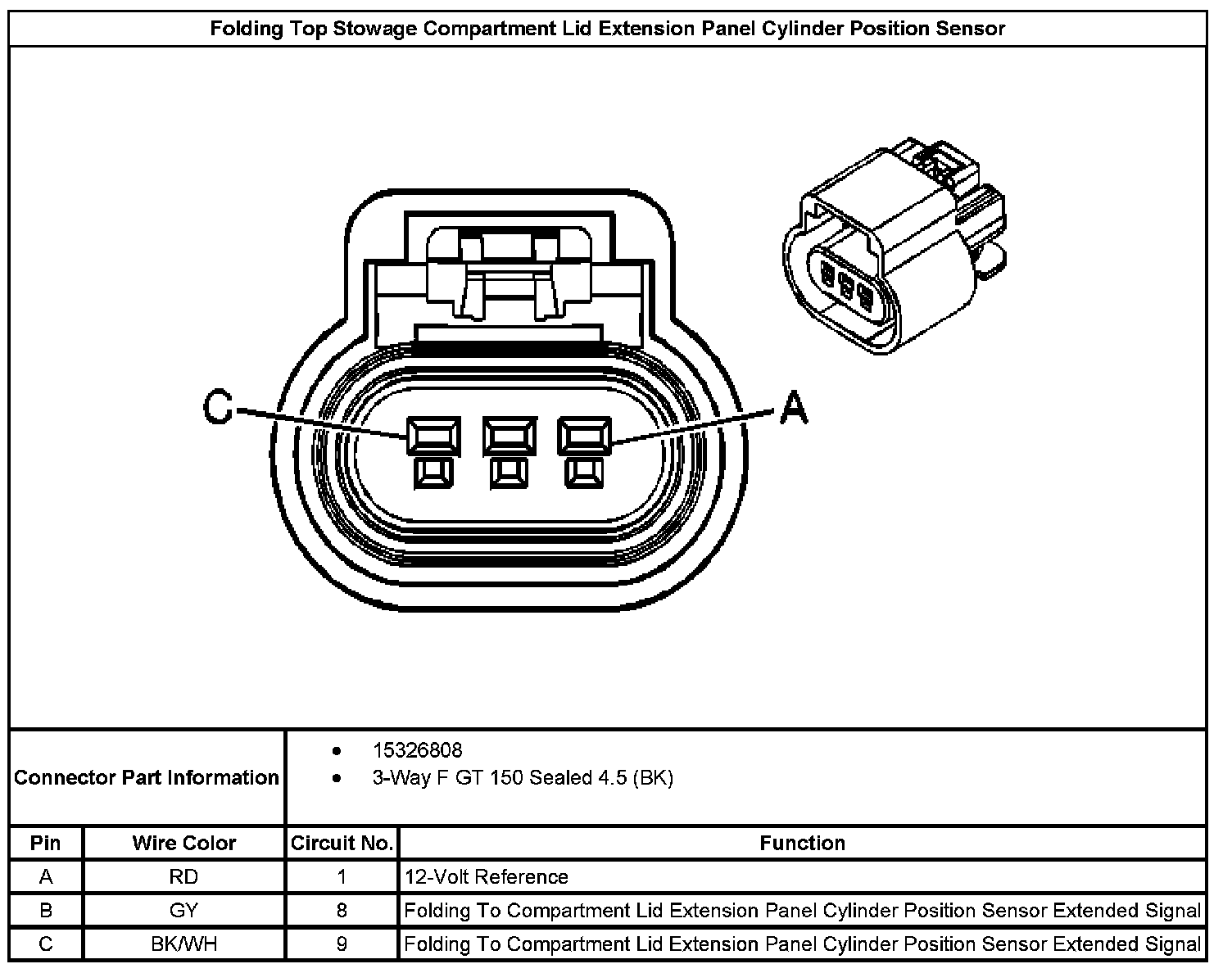

Folding Top Stowage Compartment Lid Extension Panel Cylinder Position Sensor:

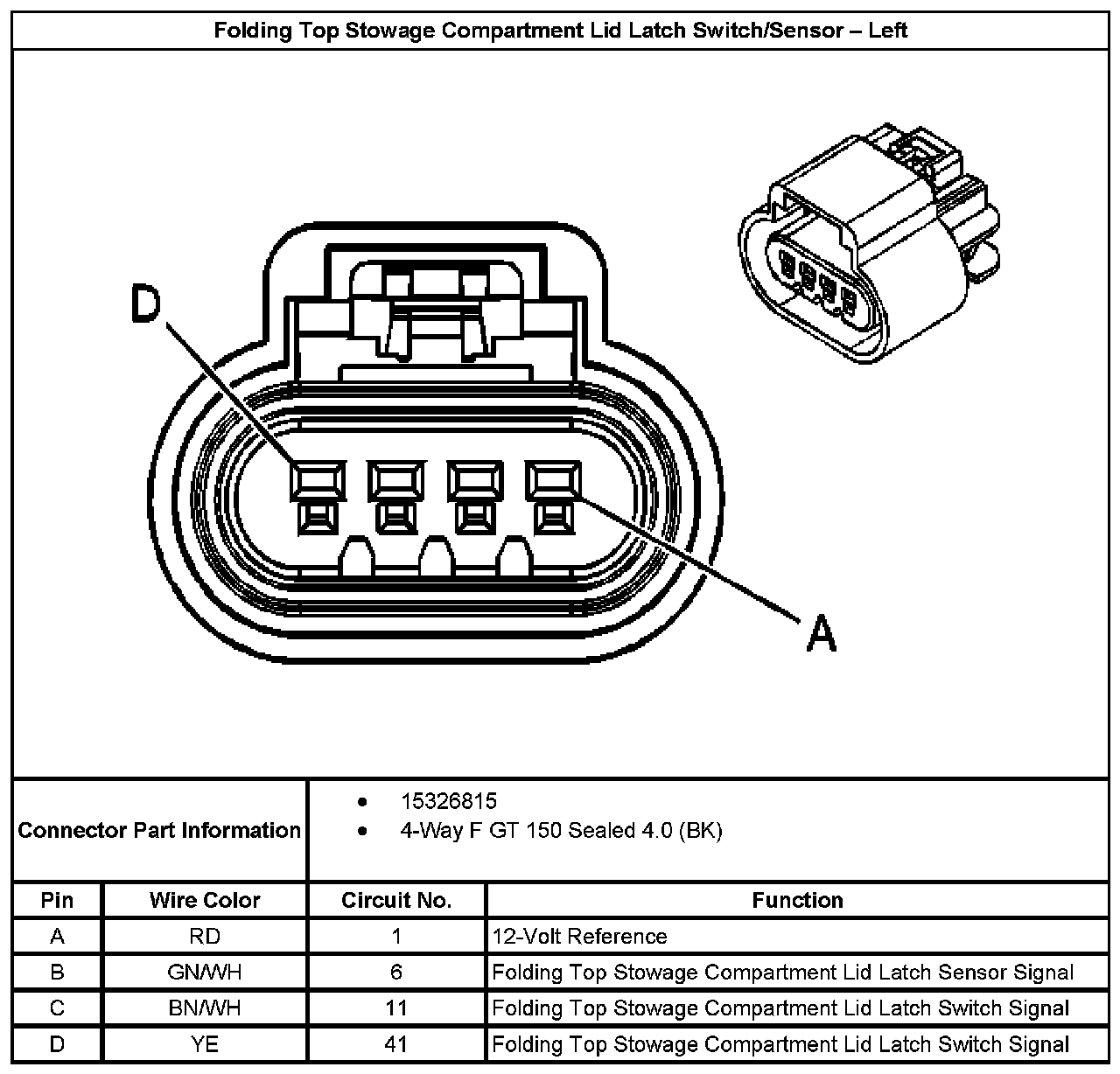

Folding Top Stowage Compartment Lid Latch Switch/Sensor - Left:

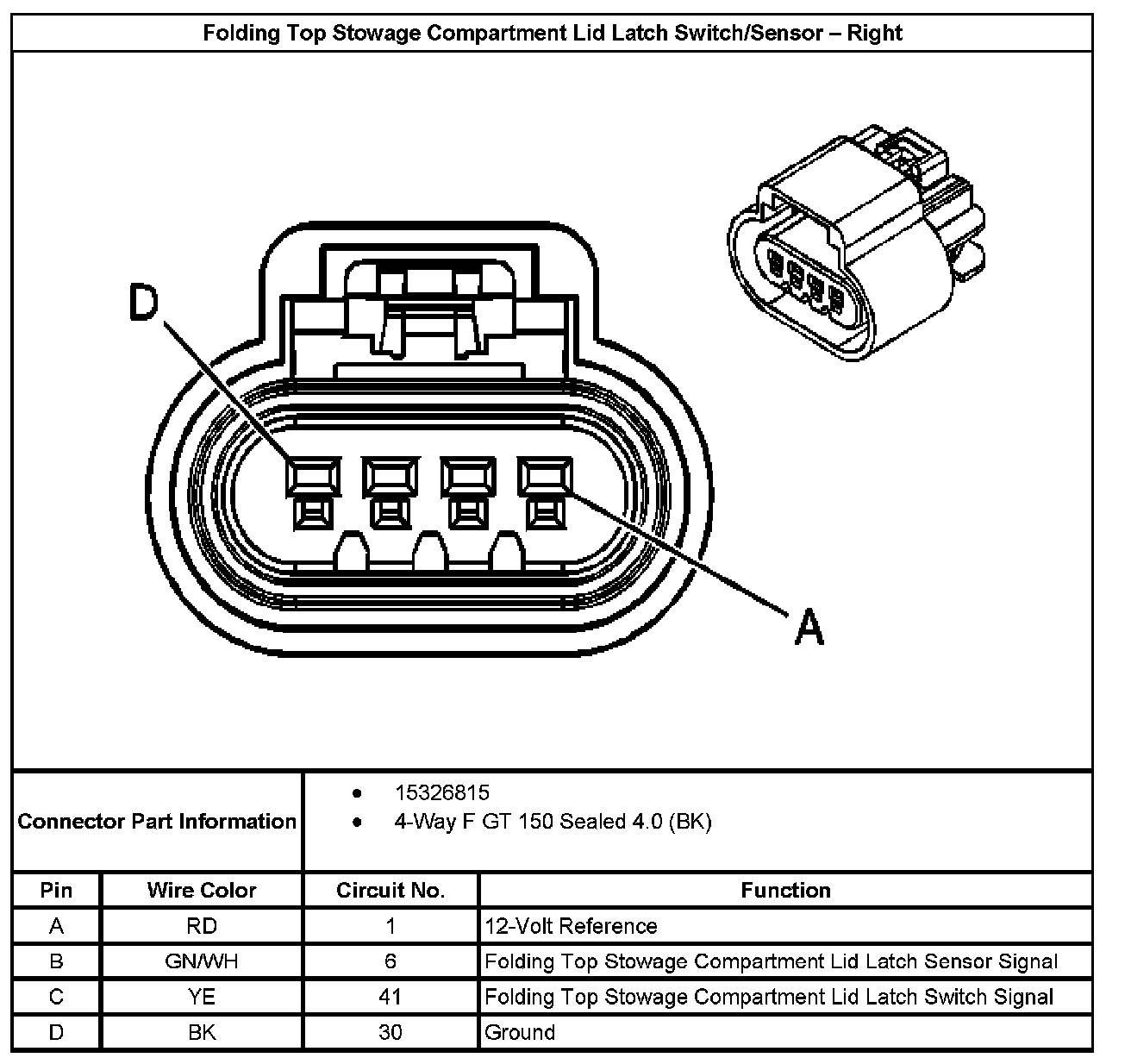

Folding Top Stowage Compartment Lid Latch Switch/Sensor - Right:
