Convertible Top Pump

Folding Top Pump Motor Assembly C1 - Valve 1:

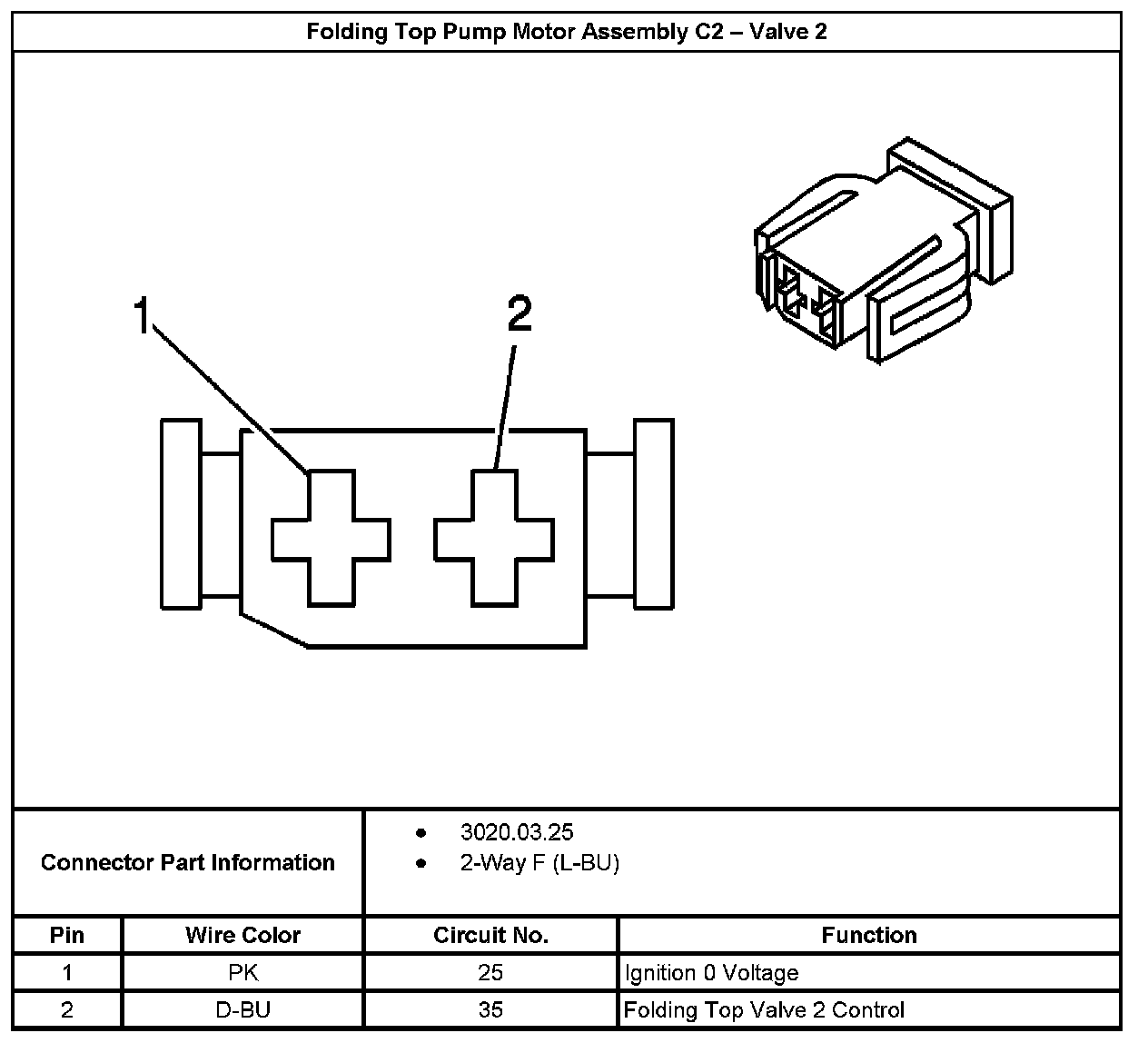

Folding Top Pump Motor Assembly C2 - Valve 2:

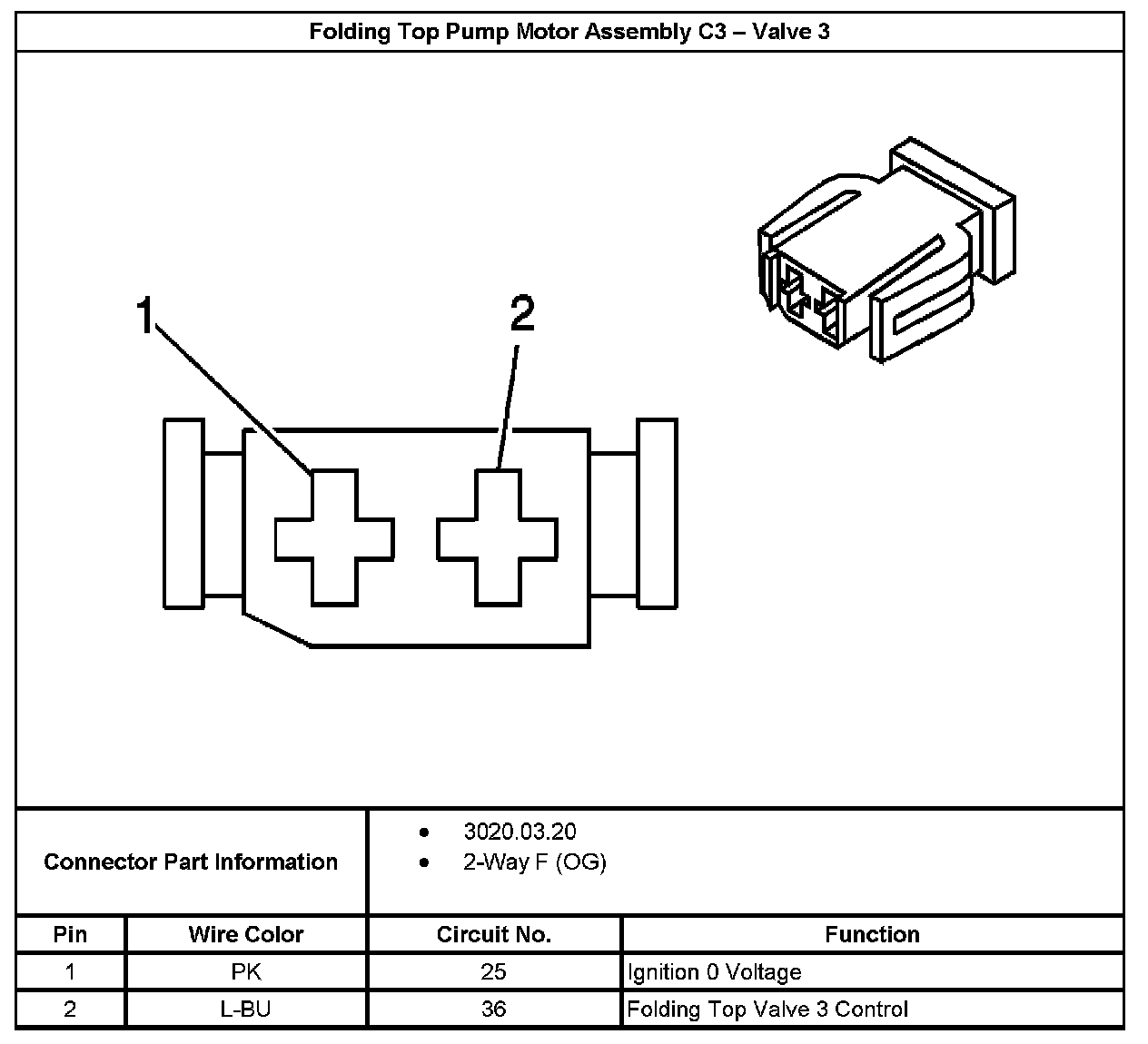

Folding Top Pump Motor Assembly C3 - Valve 3:

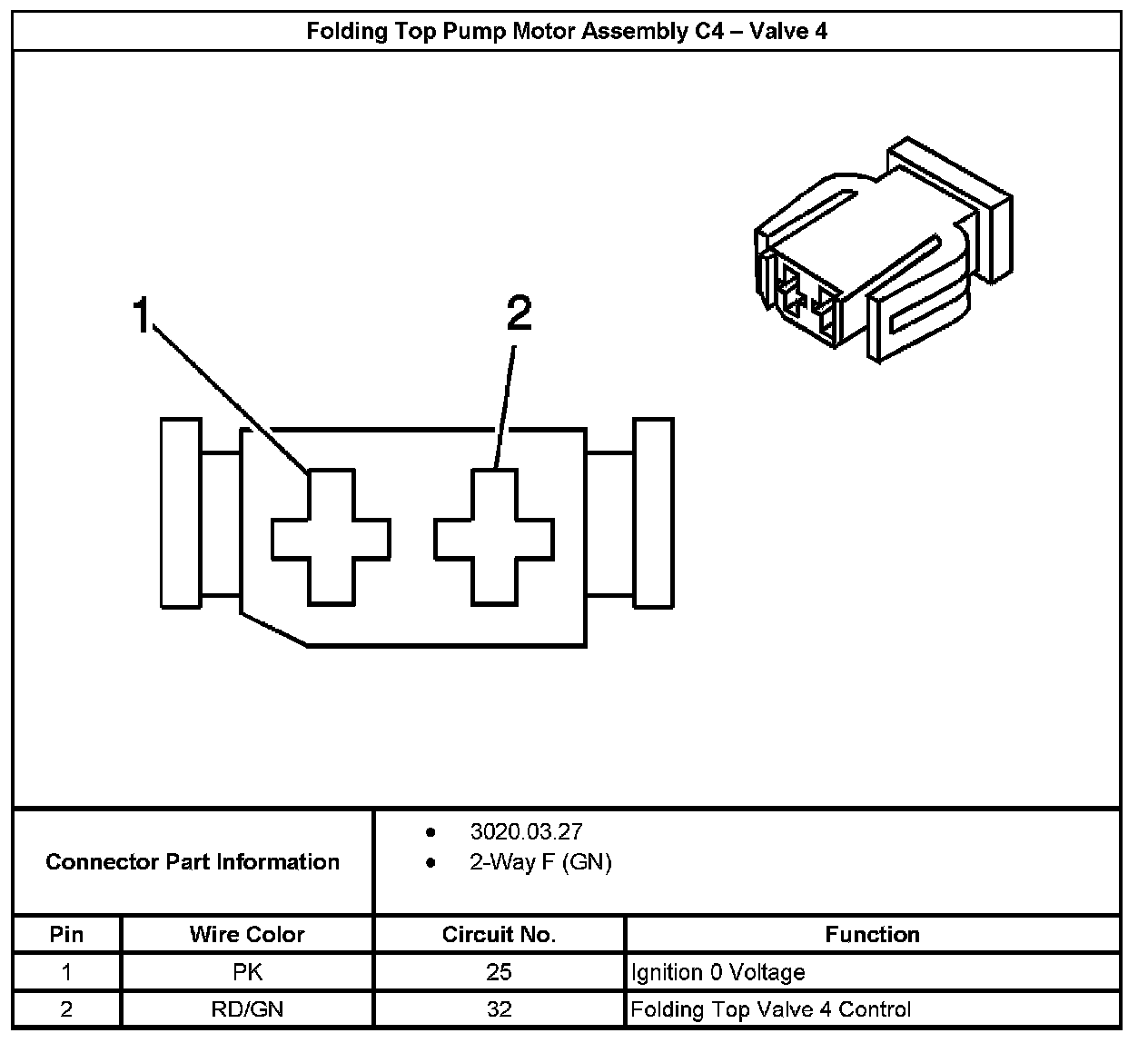

Folding Top Pump Motor Assembly C4 - Valve 4:

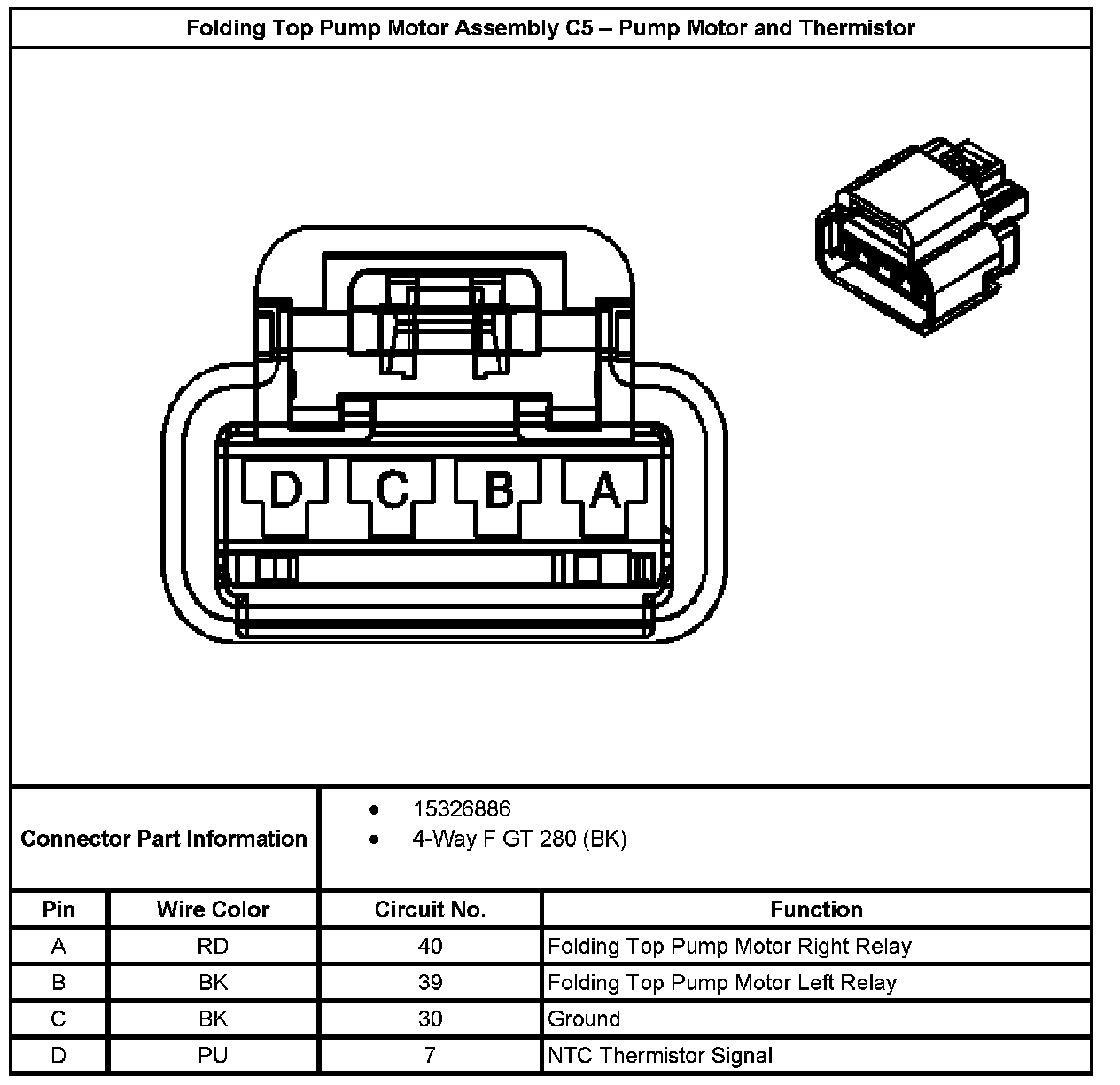

Folding Top Pump Motor Assembly C5 - Pump Motor and Thermistor:
