Seat Belt Buckle Switch

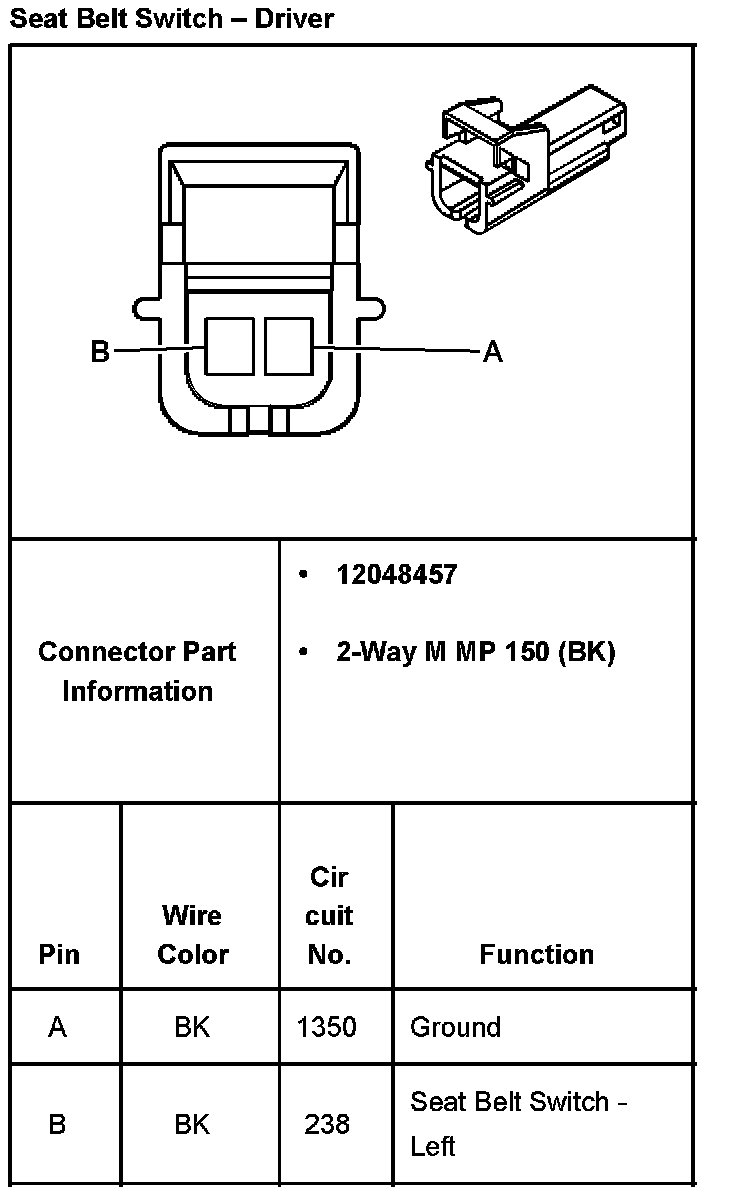

Seat Belt Switch-Driver:



Seat Belt Switch - Passenger (With RPO Code KA1):
