Seat Occupant Sensor

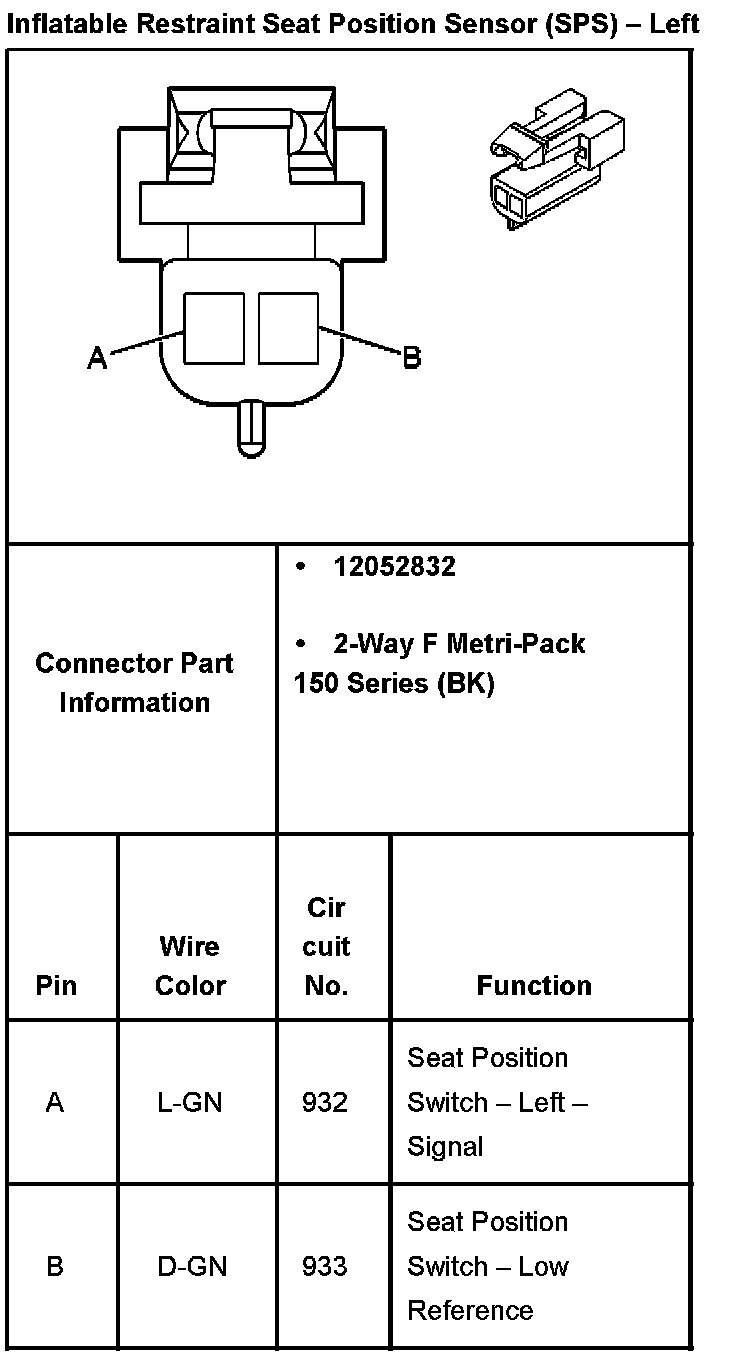

Inflatable Restraint Seat Position Sensor (SPS)-Left:

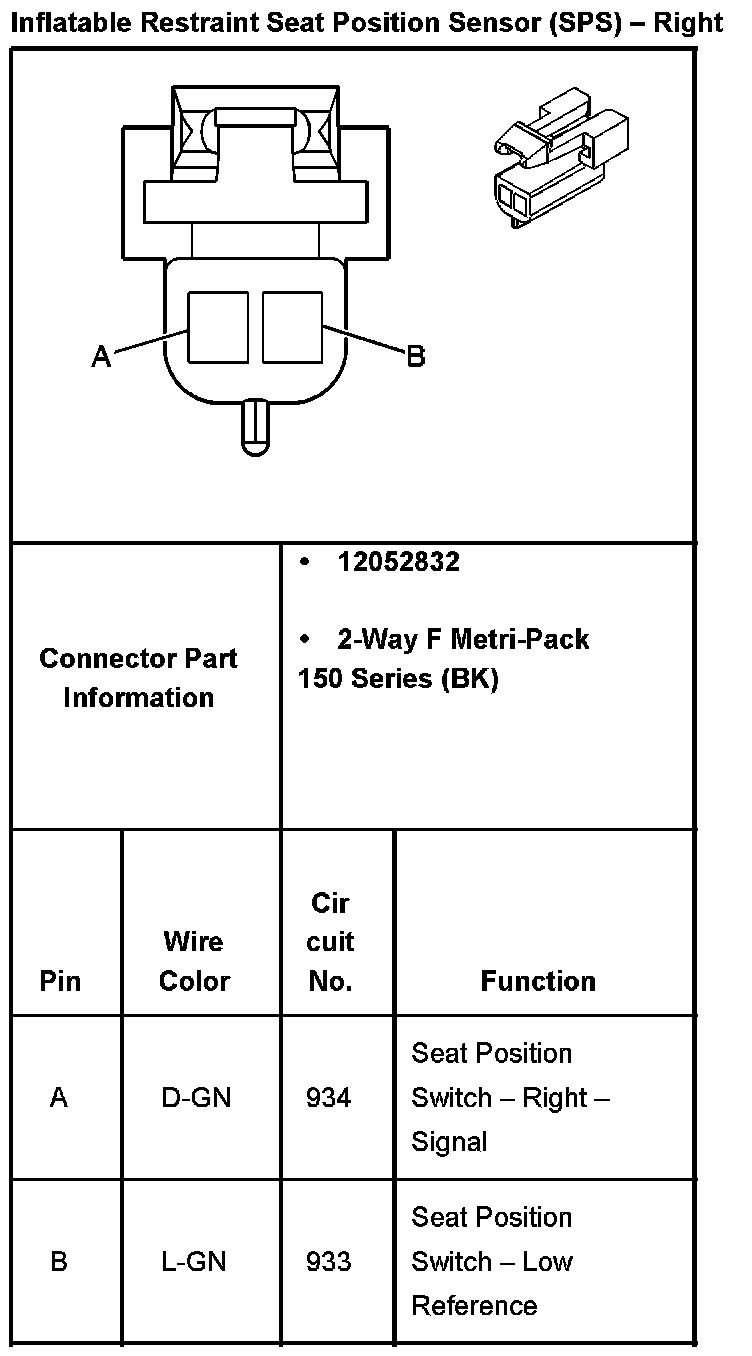

Inflatable Restraint Seat Position Sensor(SPS)-Right:
