Trunk Lamp

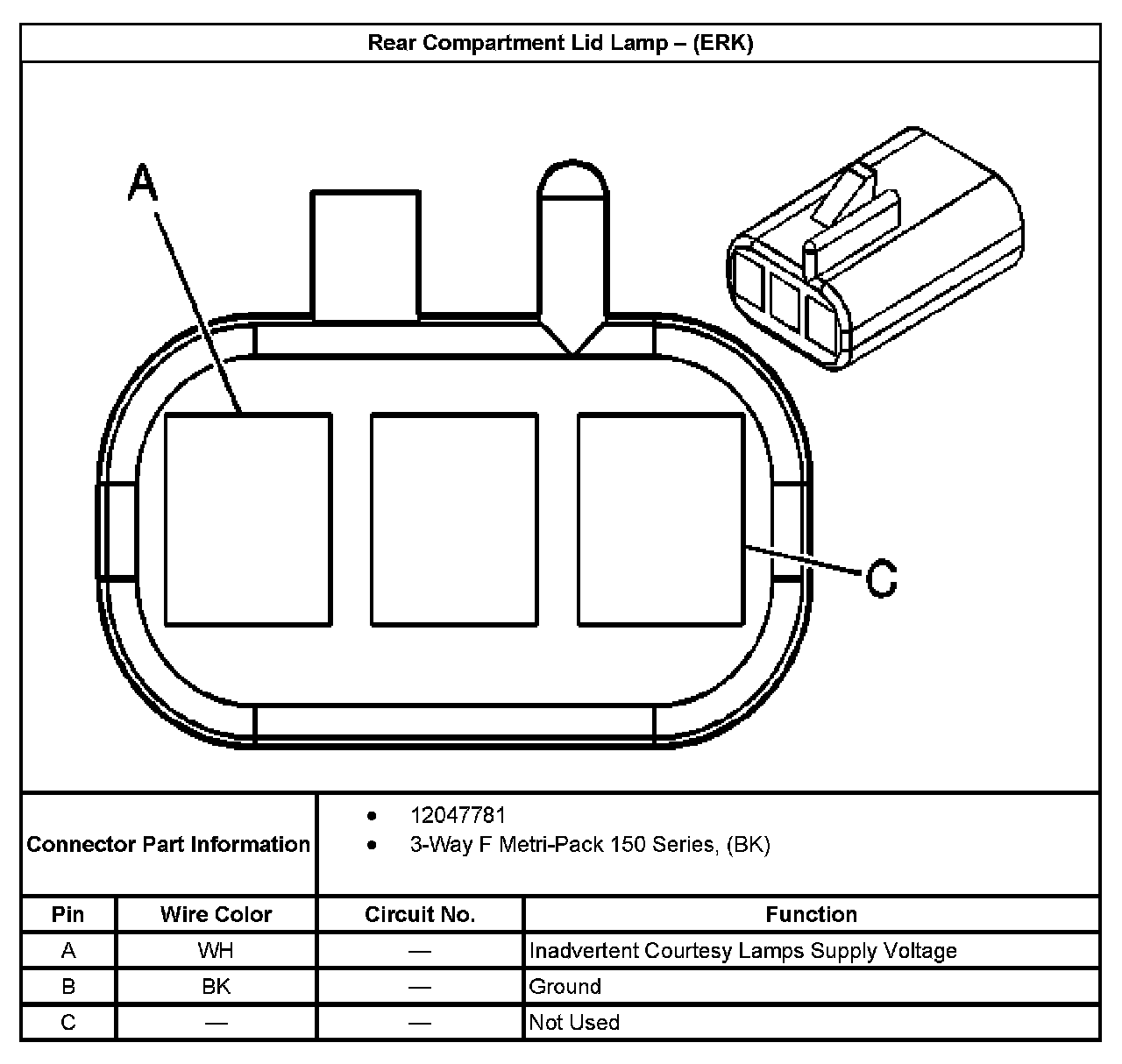

Rear Compartment Lid Lamp - (ERK):

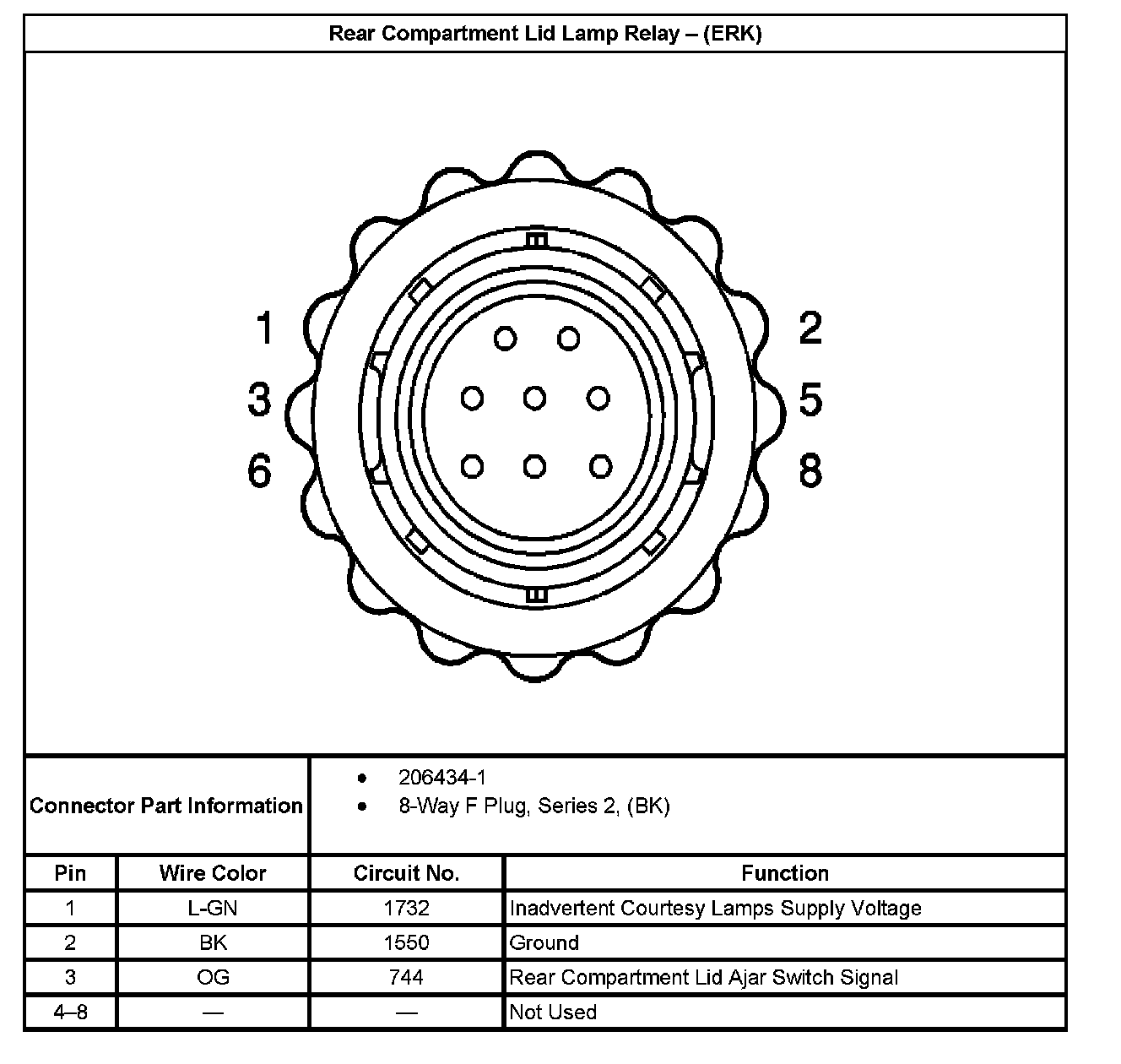

Rear Compartment Lid Lamp Relay - (With RPO Code ERK):
