Automatic Transmission/Transaxle
>>
Manual Shift and Parking System Assembly
Manual Shift and Parking System Assembly
Disassembled Views

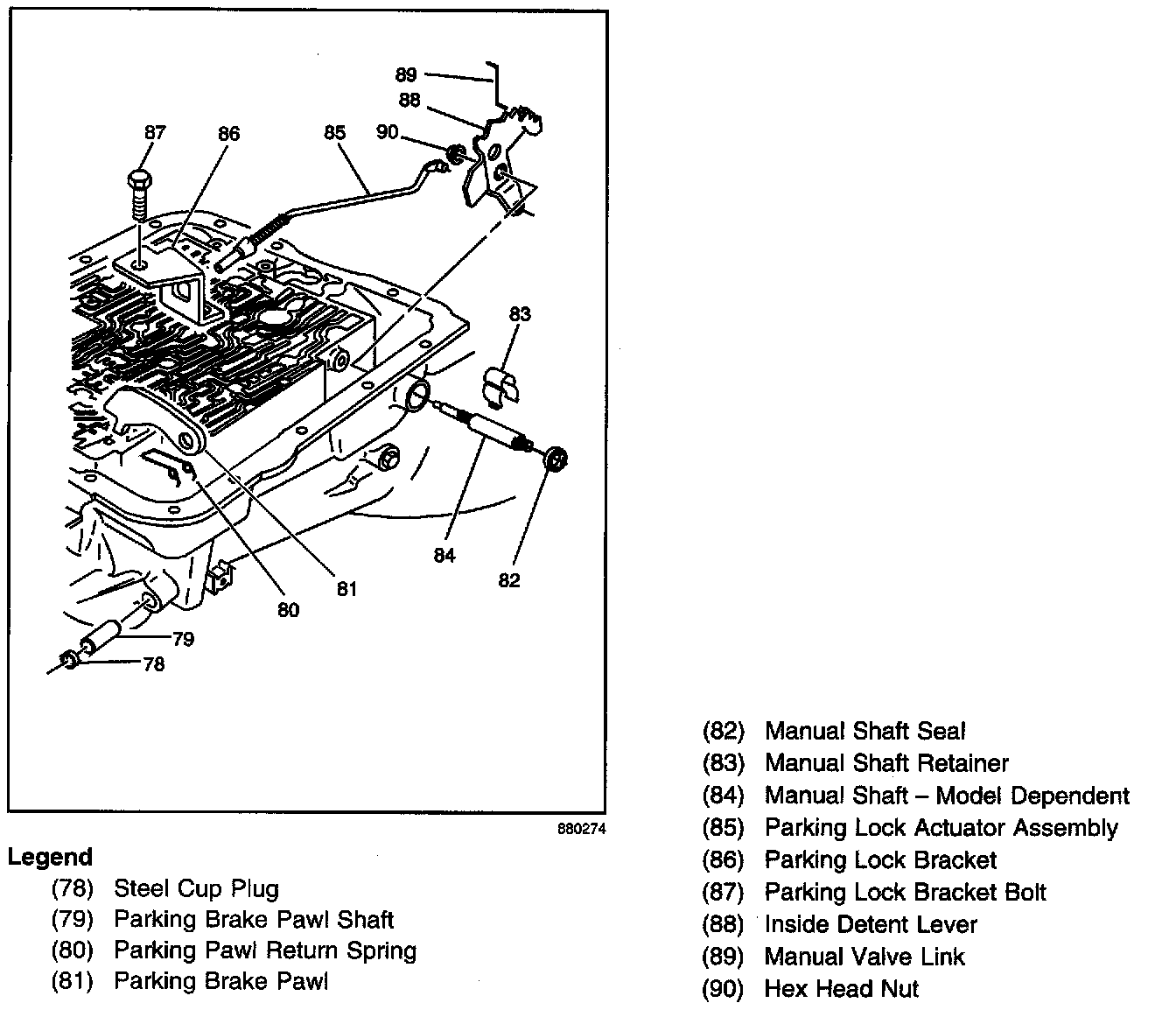

Parking Lock and Manual Shift Shaft Assembly
