Radiator Replacement

Radiator Replacement

^ Tools Required
- J 38185 Hose Clamp Pliers

Removal Procedure





1. Remove the cooling fan assembly.
2. Drain the cooling system.
3. Remove the condenser.

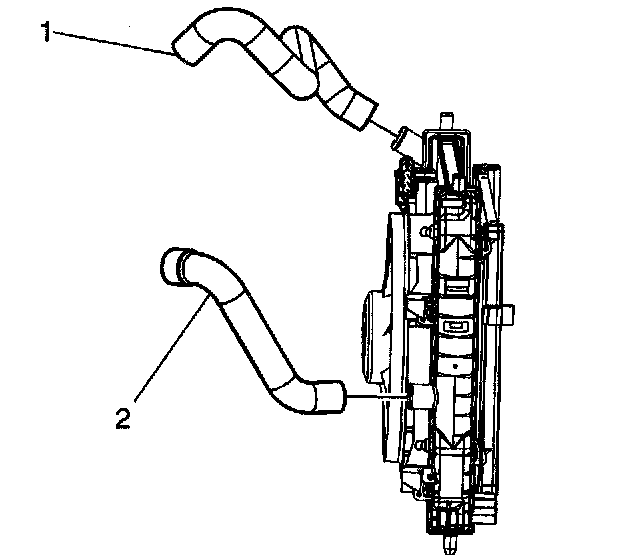

4. Use the J 38185 to remove the upper radiator hose (1) from the radiator.
5. Use the J 38185 to remove the lower radiator hose (2) from the radiator.
6. Remove the vent hose from the radiator.
7. Disconnect both transmission oil cooler lines from the radiator.
8. Remove the radiator.

Installation Procedure





1. Install the radiator.
2. Connect both transmission oil cooler lines to the radiator.
3. Install the vent hose from the radiator.
4. Use the J 38185 to install the lower radiator hose (2) from the radiator.
5. Use the J 38185 to install the upper radiator hose (1) from the radiator.
6. Install the condenser.
7. Fill the cooling system.
8. Install the cooling fan assembly.
