Radiator Support Replacement

Radiator Support Replacement

Removal Procedure





1. Remove the air cleaner assembly.

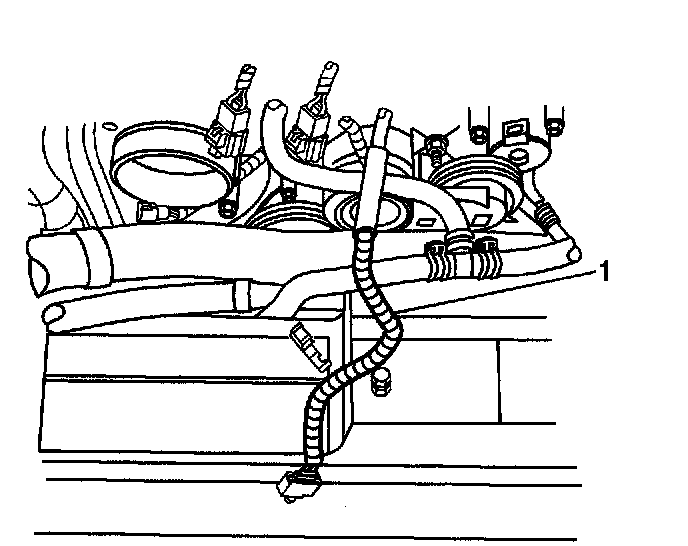

2. Disconnect the mass air flow (MAF) sensor wire (1) from the radiator support retainer clip.

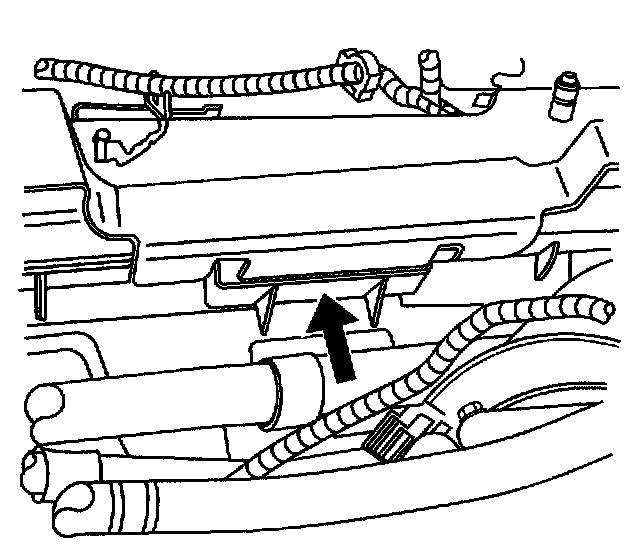

3. Disconnect the surge tank inlet hose assembly from the radiator support tabs.

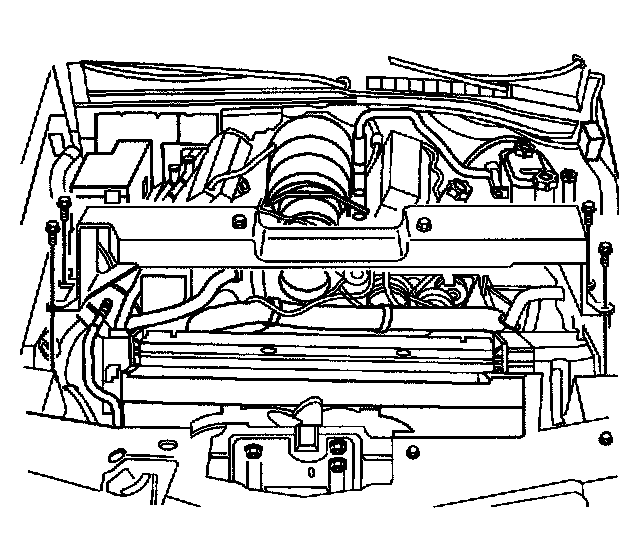

4. Remove the radiator support bolts.





Important: Note the position of the radiator support in relationship to the fan shroud. This must be reassembled correctly in order to retain the fan shroud.

5. Remove the radiator support.

Installation Procedure





Important: Position the radiator support in the correct relationship to the fan shroud.

1. Install the radiator support.





Notice: Refer to Fastener Notice in Service Precautions.

2. Install the radiator support bolts.
^ Tighten the bolts to 9 Nm (80 inch lbs.).





3. Connect the surge tank inlet hose assembly to the radiator support tabs.
4. Connect MAF sensor wire (1) to the radiator support retainer clip.
5. Install the air cleaner assembly.
