SERVICE PORT VALVE CORE REPLACEMENTTOOLS REQUIRED
- J 39400-A Halogen Leak Detector
- J 46246 Valve Core Tool
REMOVAL PROCEDURE
1. Remove the service port valve cap.
2. Recover the refrigerant from the A/C system. Refer to Refrigerant Recovery and Recharging.

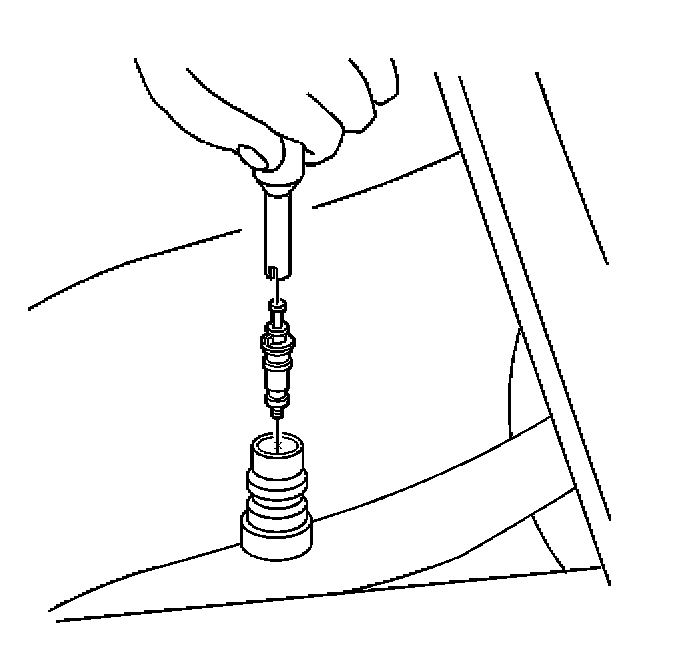

3. Using the J 46246, remove the valve core from the service port.
INSTALLATION PROCEDURE

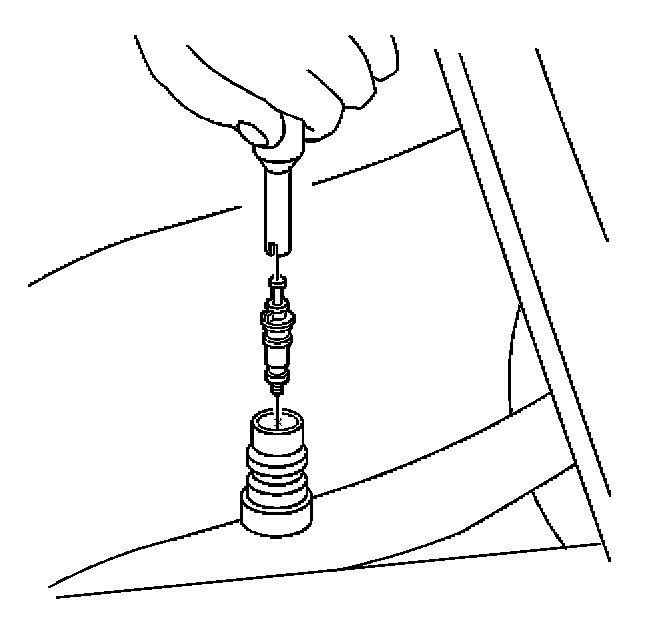

1. Install the valve core to the service port.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Using the J 46246, tighten the valve core.
Tighten
Tighten the valve core to 11 N.m (97 lb in).
3. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging.
4. Leak test the fittings of the component using J 39400-A.
5. Install the service port valve cap.
