Home
>>
Chevrolet
>>
2004
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>

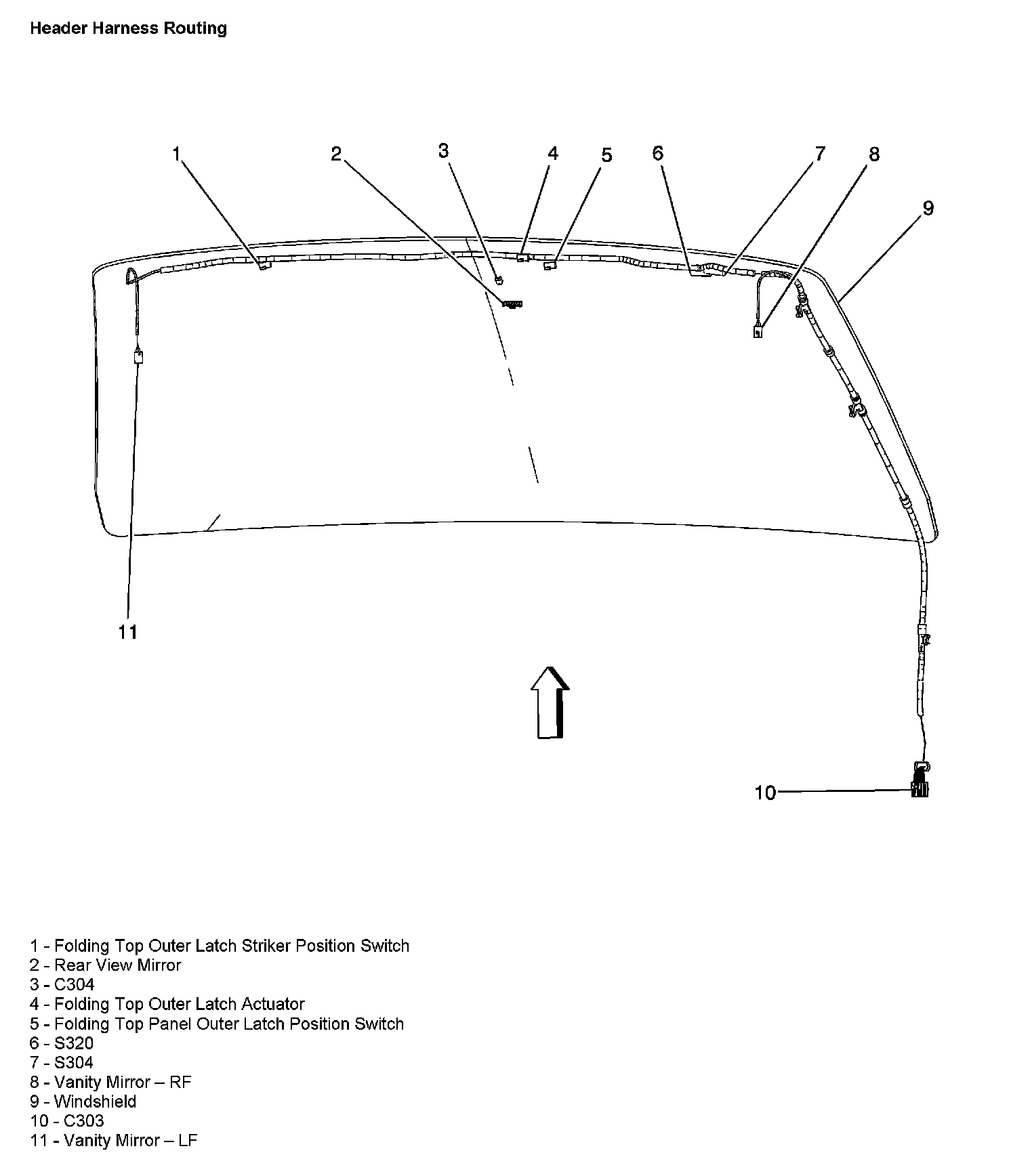

Header Harness Routing View
Header Harness Routing View
Header Harness Routing:
