Chevrolet
>>
2004
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>

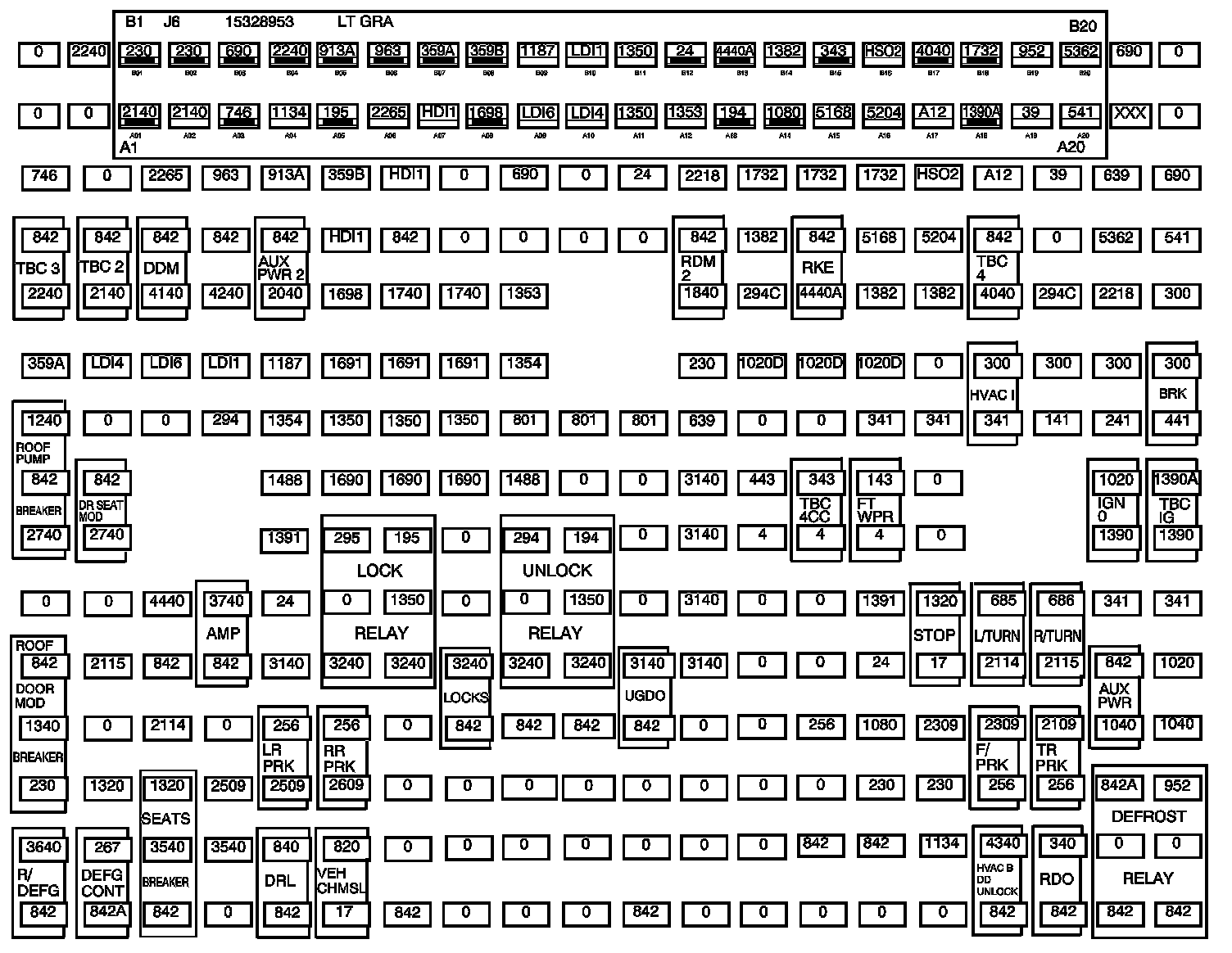

Fuse Block - Rear, Top View
Fuse Block - Rear, Top View
Location View:
