Procedures

FUEL TANK DRAINING PROCEDURE

CAUTION: Refer to Gasoline/Gasoline Vapors Caution in Service Precautions.

1. Loosen the fuel filler cap in order to relieve the fuel tank vapor pressure.
2. Raise the vehicle. Refer to Vehicle Lifting.

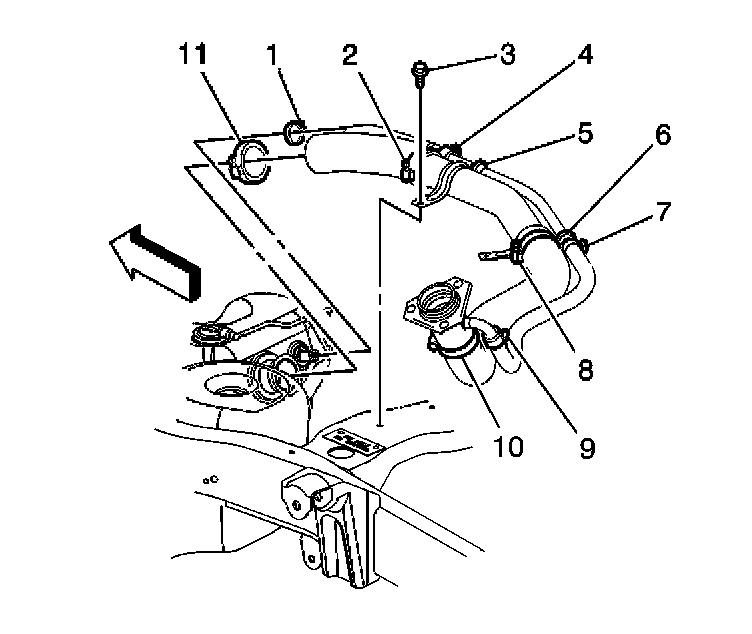

3. Loosen the fuel fill hose clamp (2).
4. Disconnect the fuel fill hose from the fuel fill pipe.
5. Use a hand or air operated pump device in order to drain as much fuel through the fuel fill hose as possible.
