Convertible Top Relay: Locations

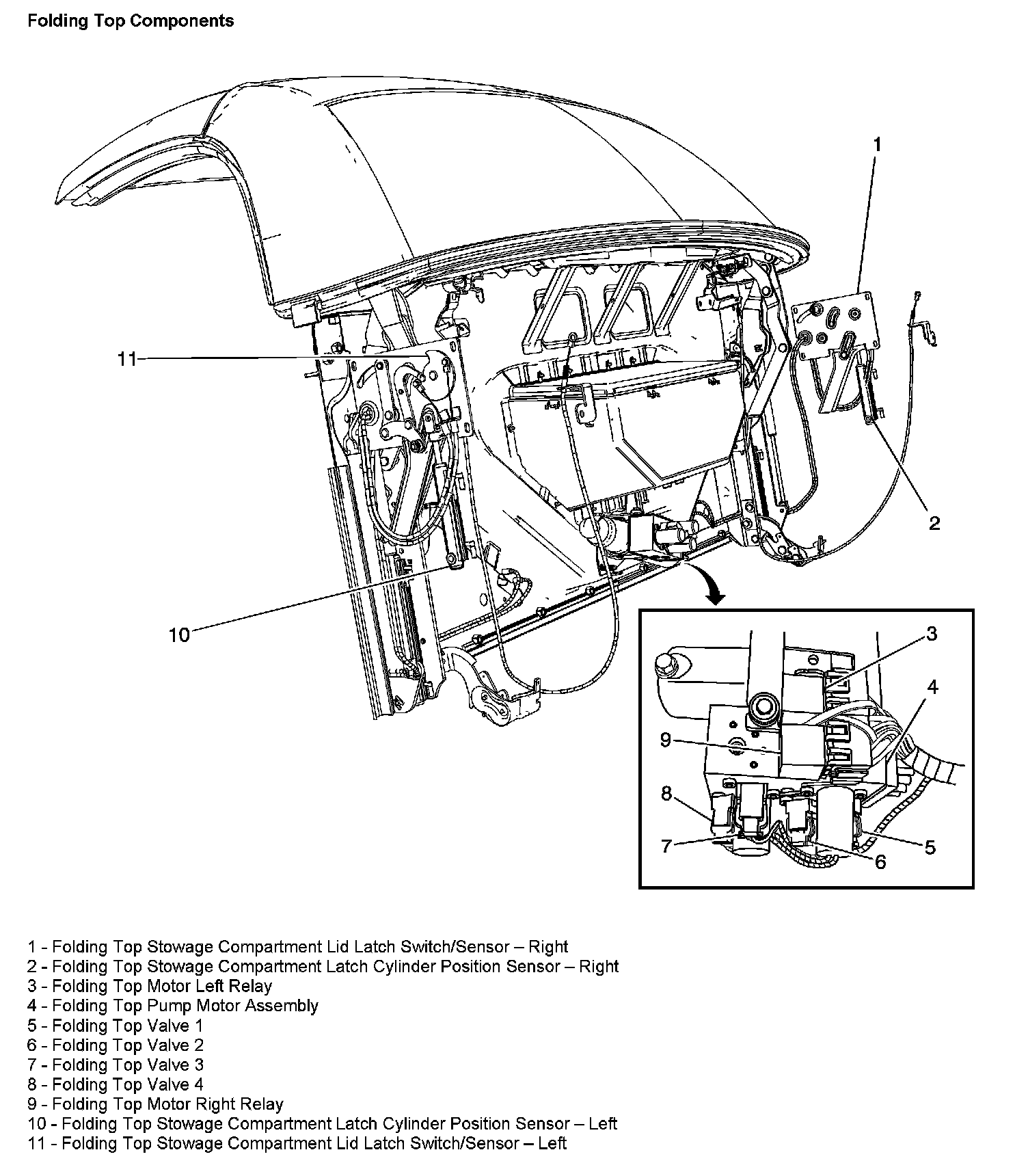

Folding Top Components:

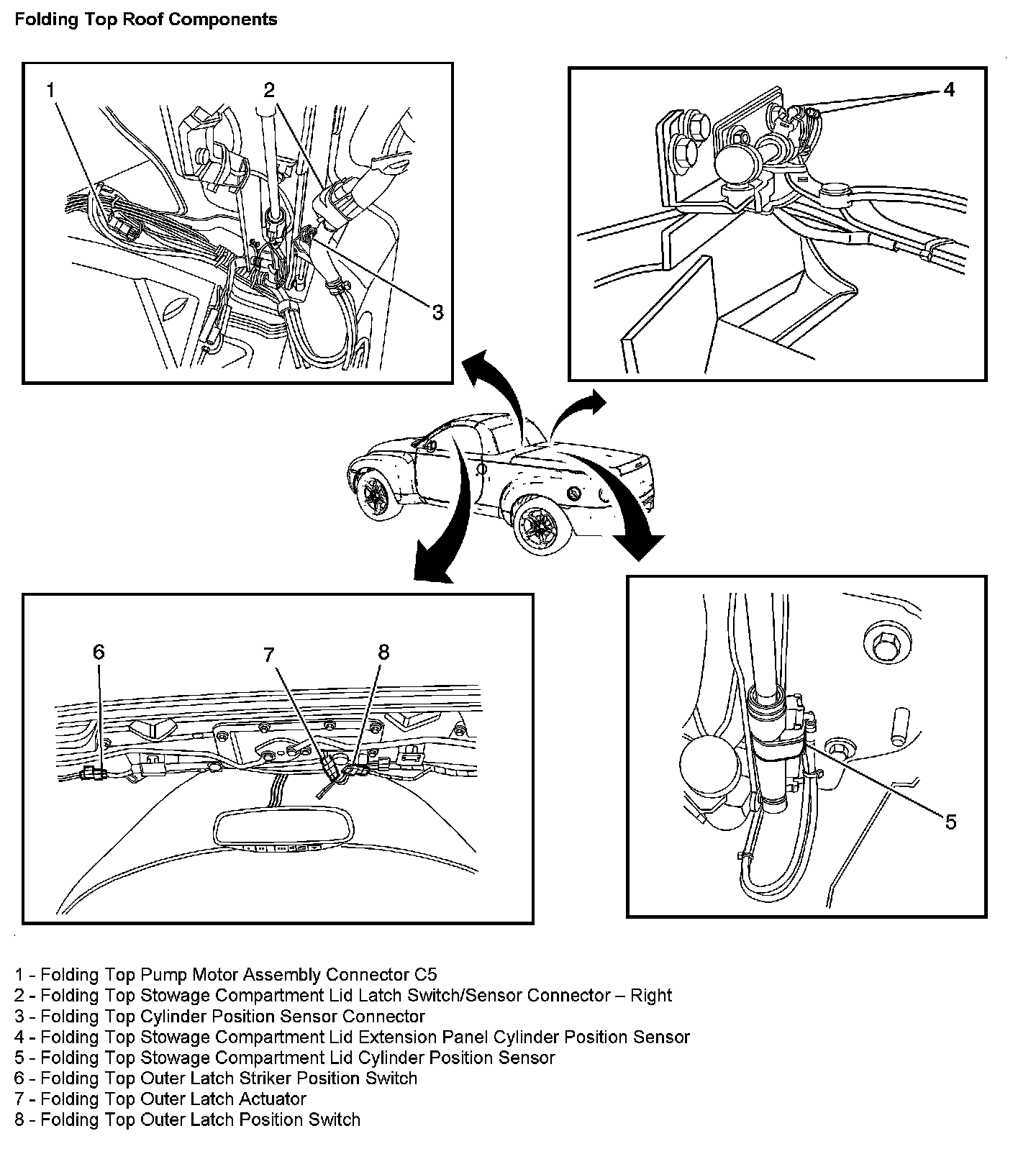

Folding Top Roof Components:



Header Harness Routing:
