SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Locations
>>

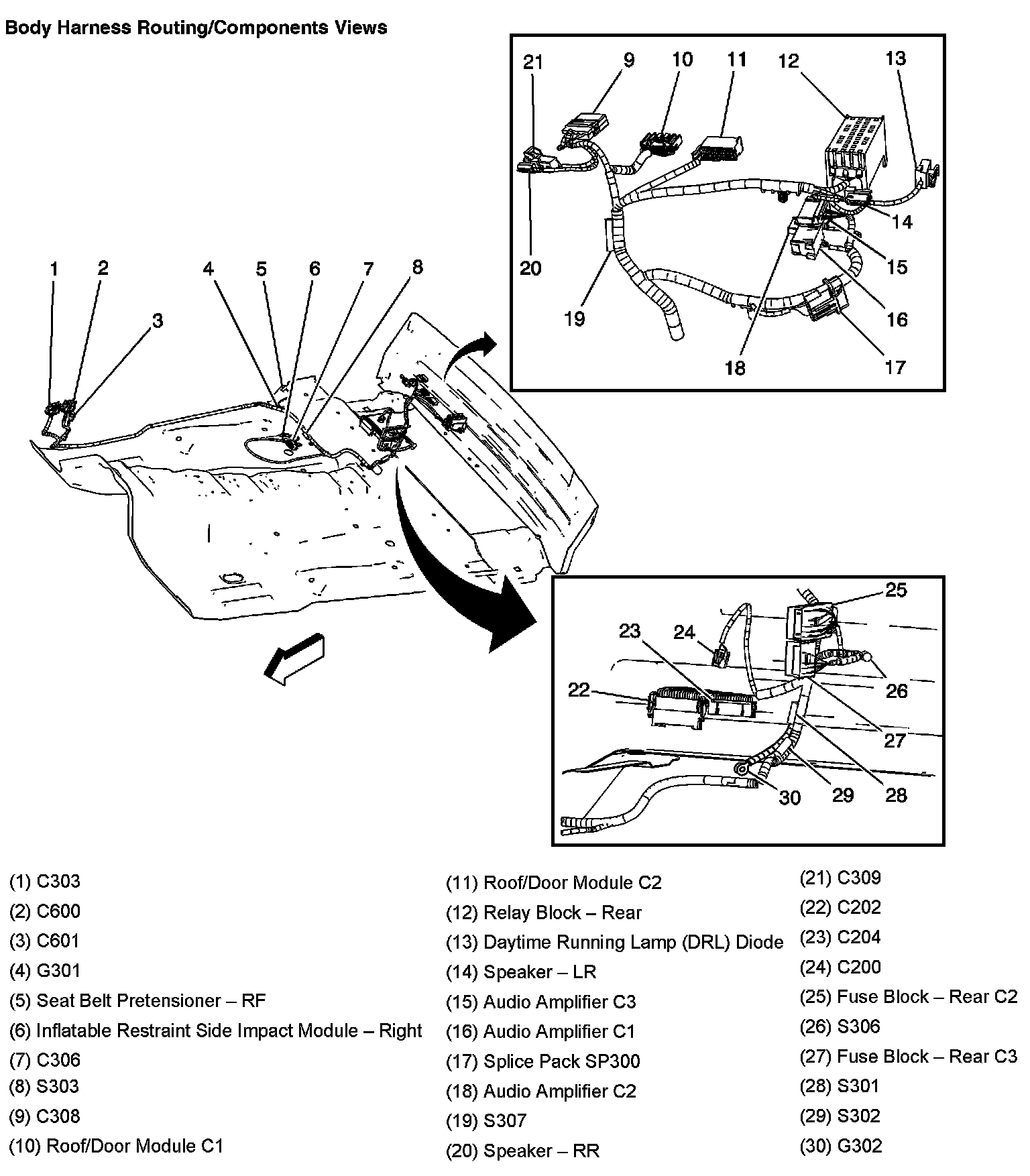

Body Harness Routing/Components Views
Body Harness Routing/Components Views
Body Harness Routing/Components Views:
