Flex Plate
Engine Flywheel Bolts
First Pass 20 Nm (15 lb ft)
Second Pass 50 Nm (37 lb ft)
Final Pass 100 Nm (74 lb ft)

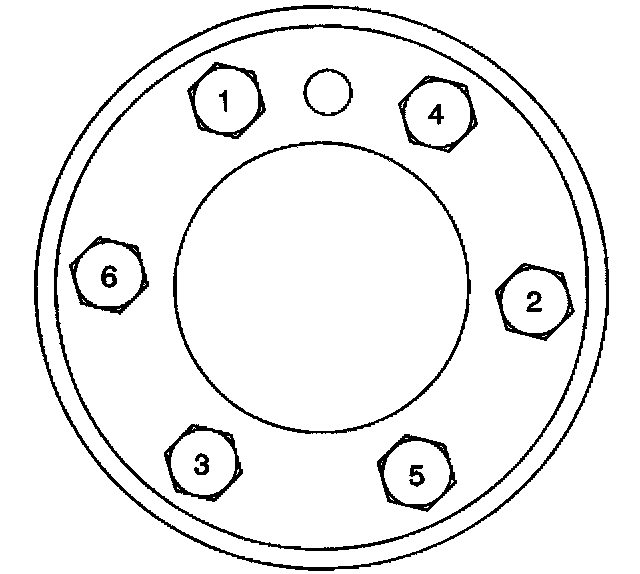

Tightening Torque & Sequence
Engine Flywheel Cover Bolts 10 Nm (89 lb in)
Flywheel to Torque Converter Bolt 63 Nm (46 lb ft)
Engine Flywheel Bolts
First Pass 20 Nm (15 lb ft)
Second Pass 50 Nm (37 lb ft)
Final Pass 100 Nm (74 lb ft)
Tightening Torque & Sequence
Engine Flywheel Cover Bolts 10 Nm (89 lb in)
Flywheel to Torque Converter Bolt 63 Nm (46 lb ft)
