Transmission Mode Switch: Locations

Automatic Transmission Electronic Component Views





Electronic Components

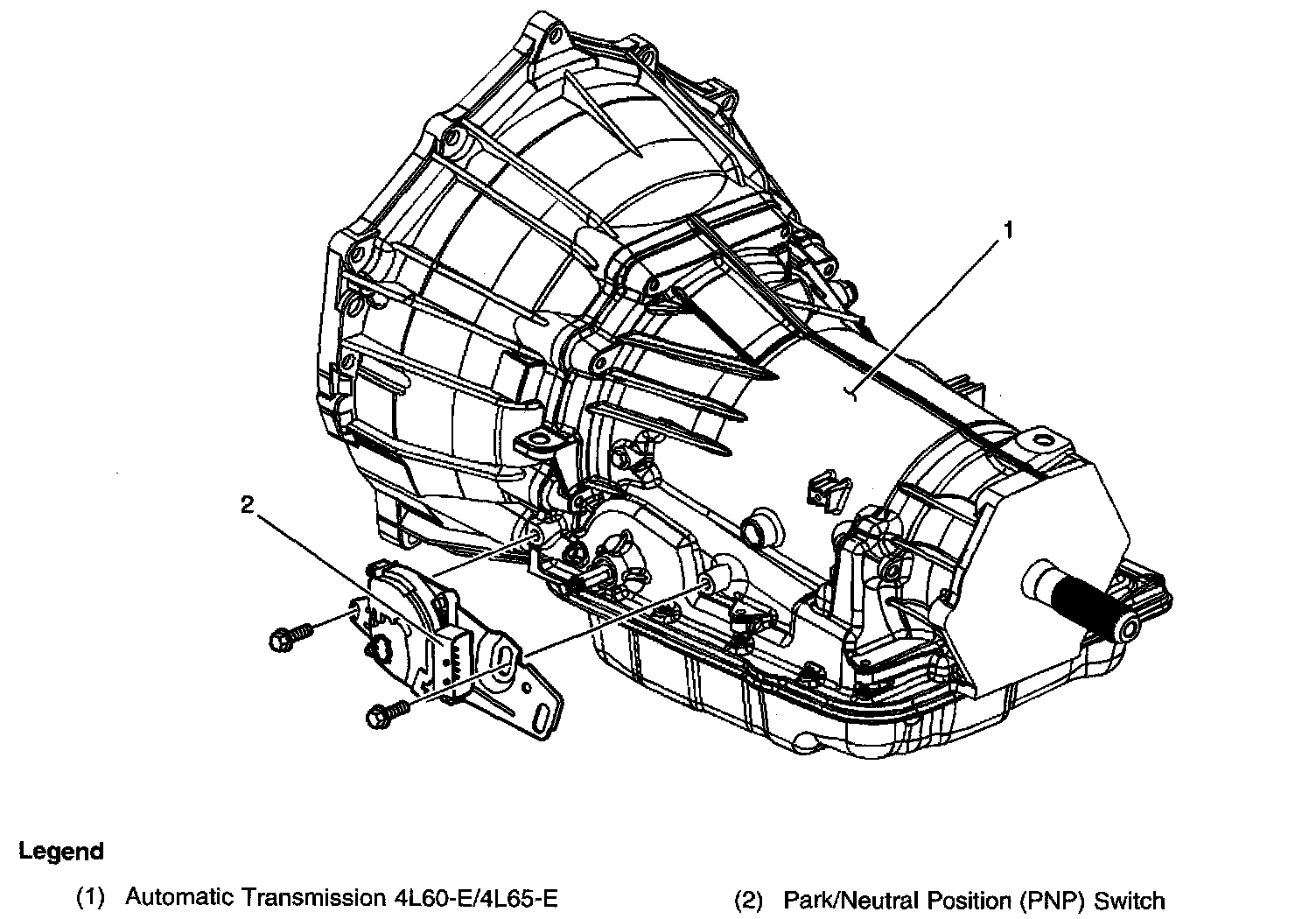

Park Neutral Position (PNP) Switch

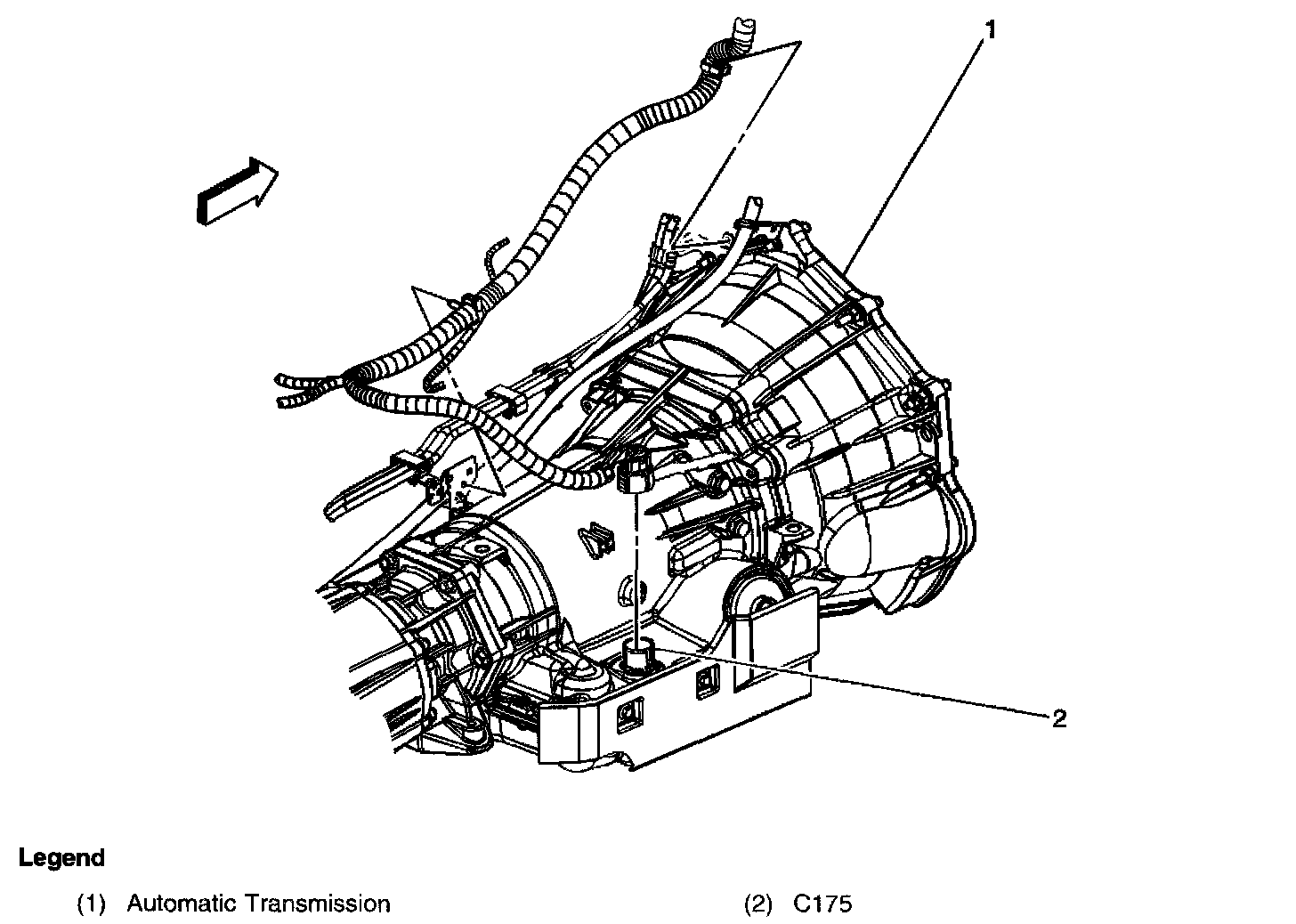

C175
