Home >> Chevrolet >> 2004 >> SSR V8-5.3L VIN P >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Motor >> Locations

Power Window Motor: Locations

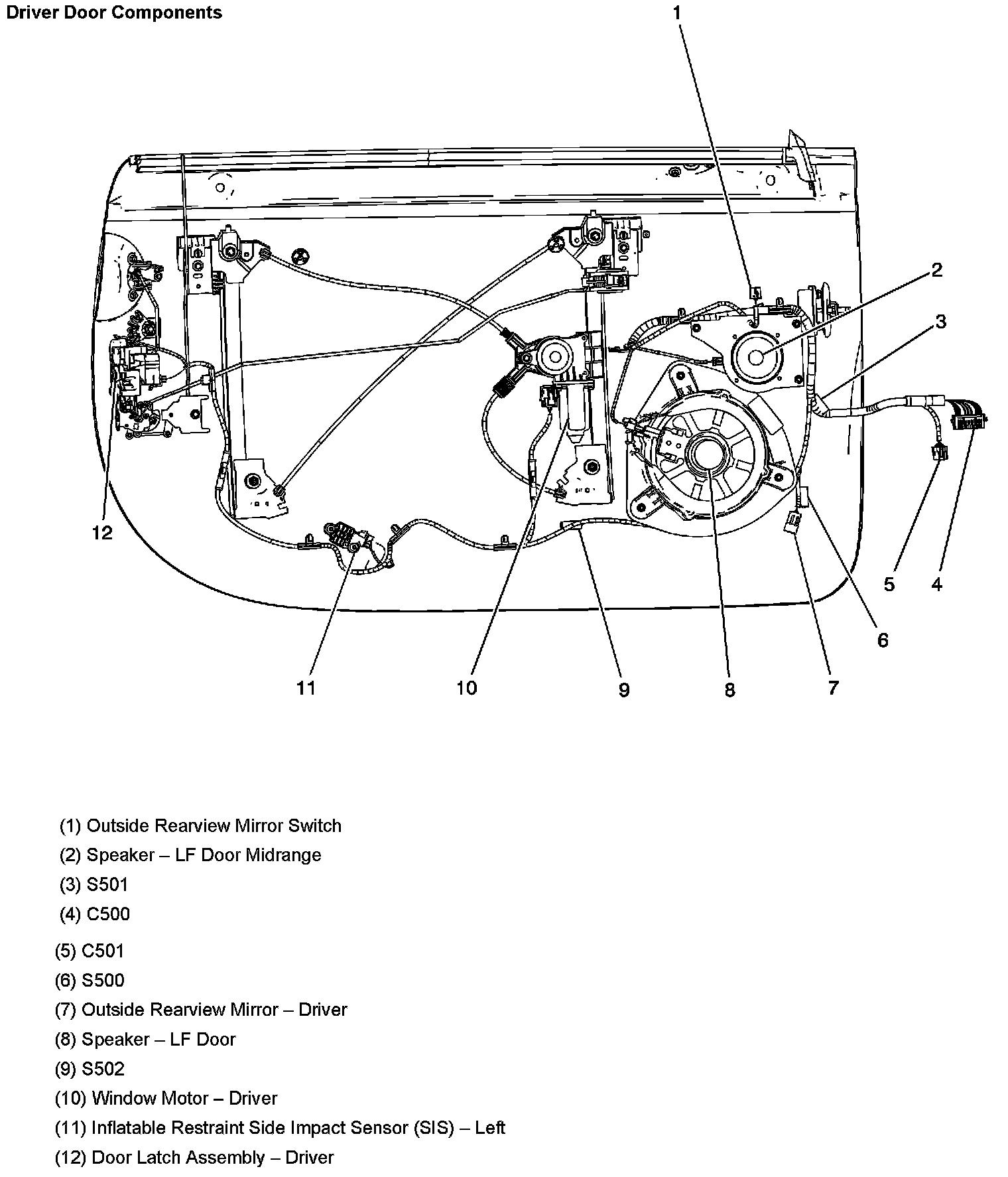

Driver Door Components:

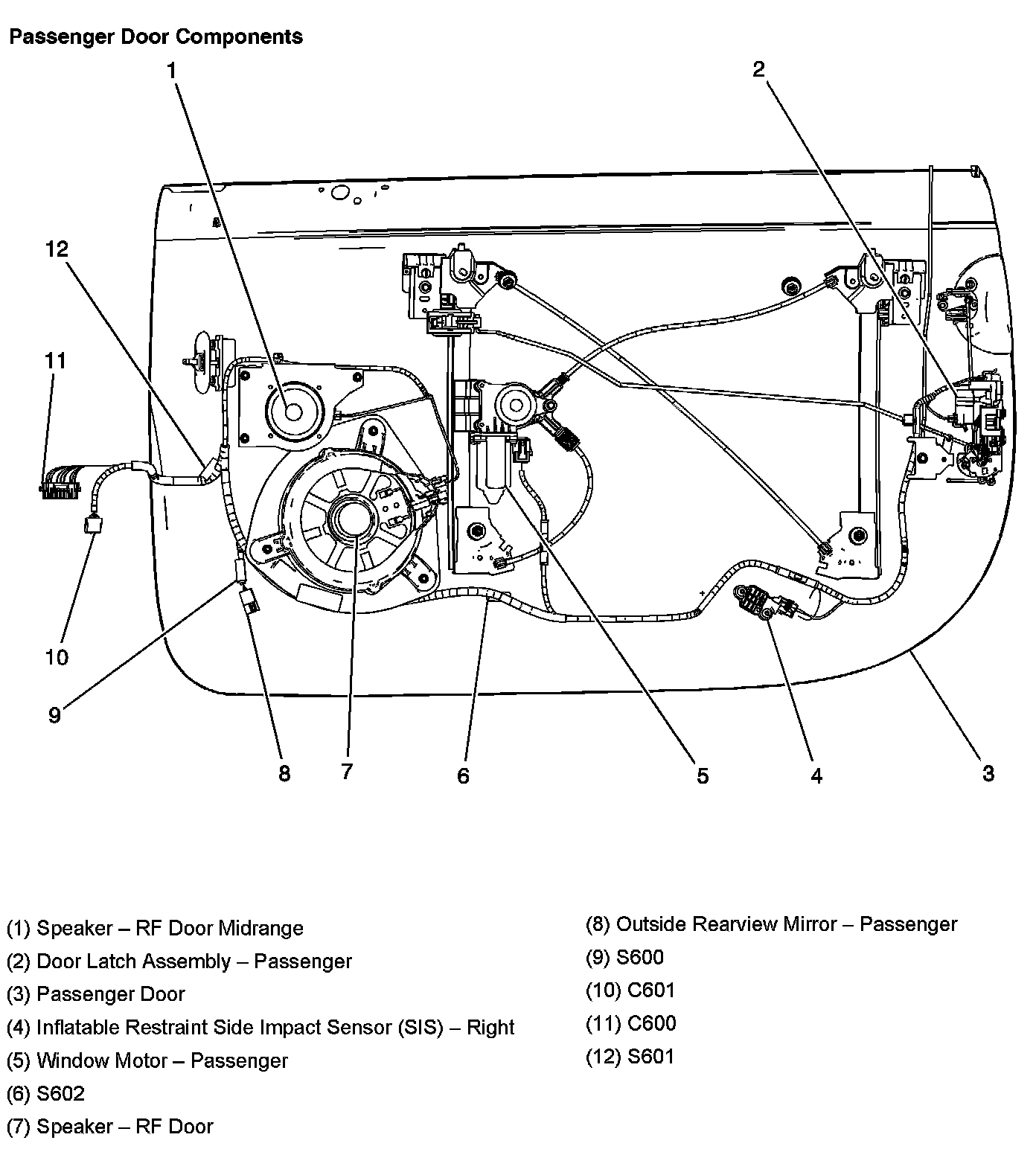

Passenger Door Components:
