Windshield Washer Pump: Service and Repair

WASHER PUMP REPLACEMENT

REMOVAL PROCEDURE
1. Open the hood.
2. Remove the PCM.
3. Drain the washer solvent from the washer solvent container.

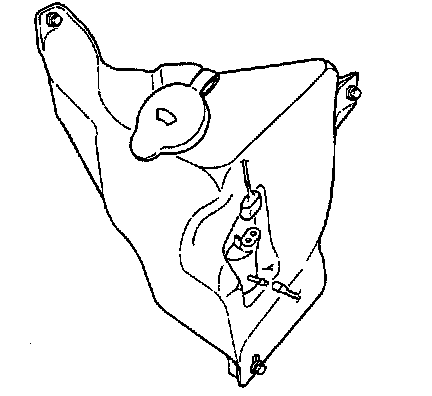

4. Disconnect the washer pump electrical connector.
5. Disconnect the washer hose from the washer pump.

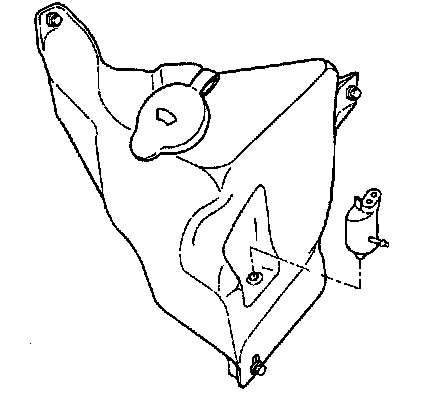

6. Using a small flat-bladed tool, remove the washer pump from the washer solvent container.

INSTALLATION PROCEDURE




1. Position the washer pump to the washer solvent container pressing in until fully seated.




2. Connect the washer hose to the washer pump.
3. Connect the washer pump electrical connector.
4. Fill the washer solvent container with washer solvent.
5. Install the PCM.
6. Close the hood.
