Wiper Arm: Service and Repair
WIPER ARM REPLACEMENTTOOLS REQUIRED
J 39637 Wiper Arm Removal Tool
REMOVAL PROCEDURE
1. Turn the ignition ON.
2. Turn the wiper switch to DELAY.
3. Turn the ignition OFF when the wiper arms are paused at the bottom of the wipe pattern.
4. Open the hood.
5. Remove the wiper arm nut cover.

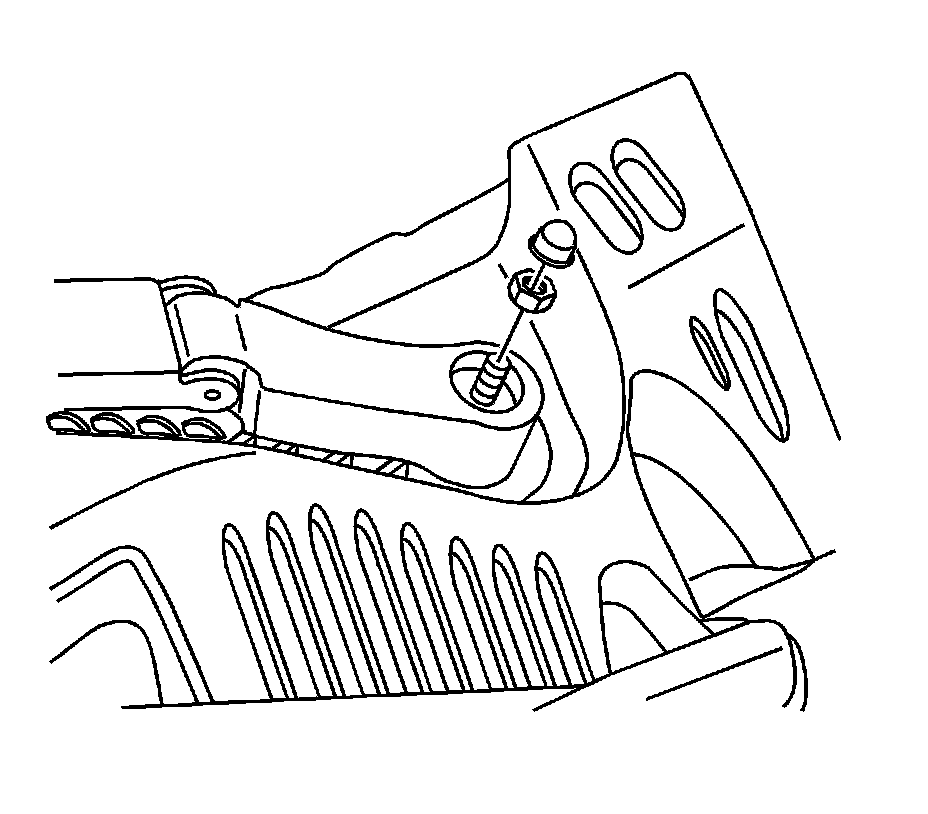

6. Remove the wiper arm nut.

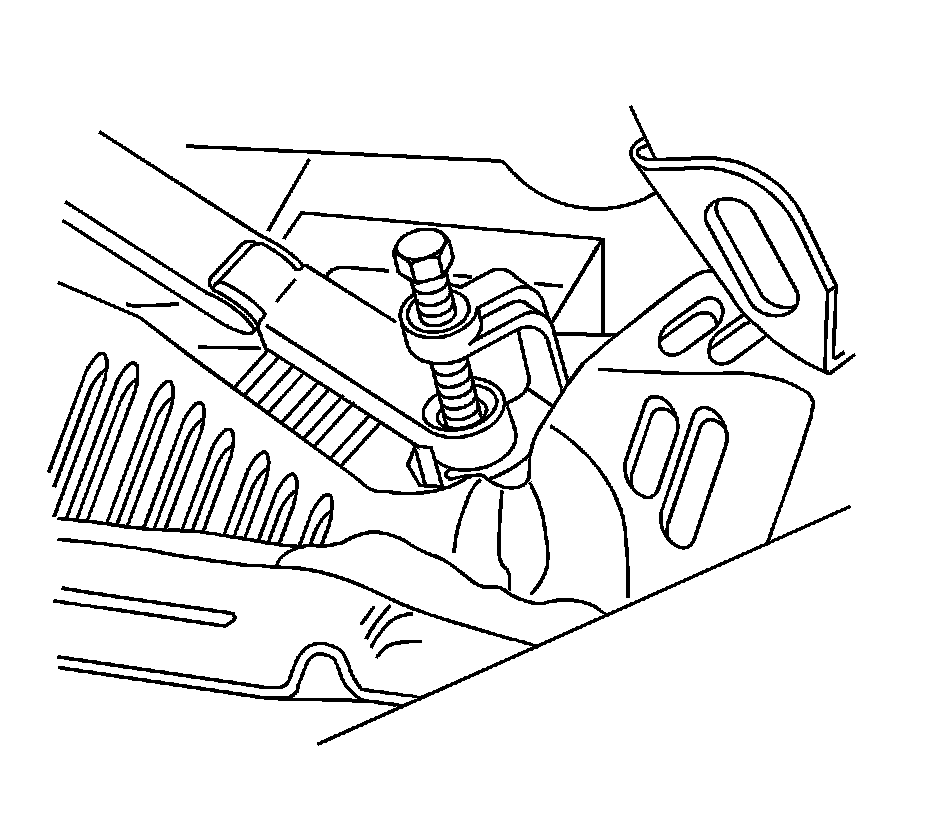

7. Using J 39637 , remove the wiper arm from the wiper pivot stud.
8. Disconnect the washer hose.
9. Remove the wiper arm from the vehicle.
INSTALLATION PROCEDURE
1. Install the wiper arms onto the wiper transmission.
2. Align the wiper blades to the alignment marks.
3. Install the wiper arm nut.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the nut to 30 N.m (22 lb ft).
4. Install the wiper arm nut cover.
5. Connect the washer hose.
6. Operate the windshield wipers and inspect for proper operation.
7. Close the hood.
