4L80-E / 4L85-E Automatic Transmission

DTC P2771

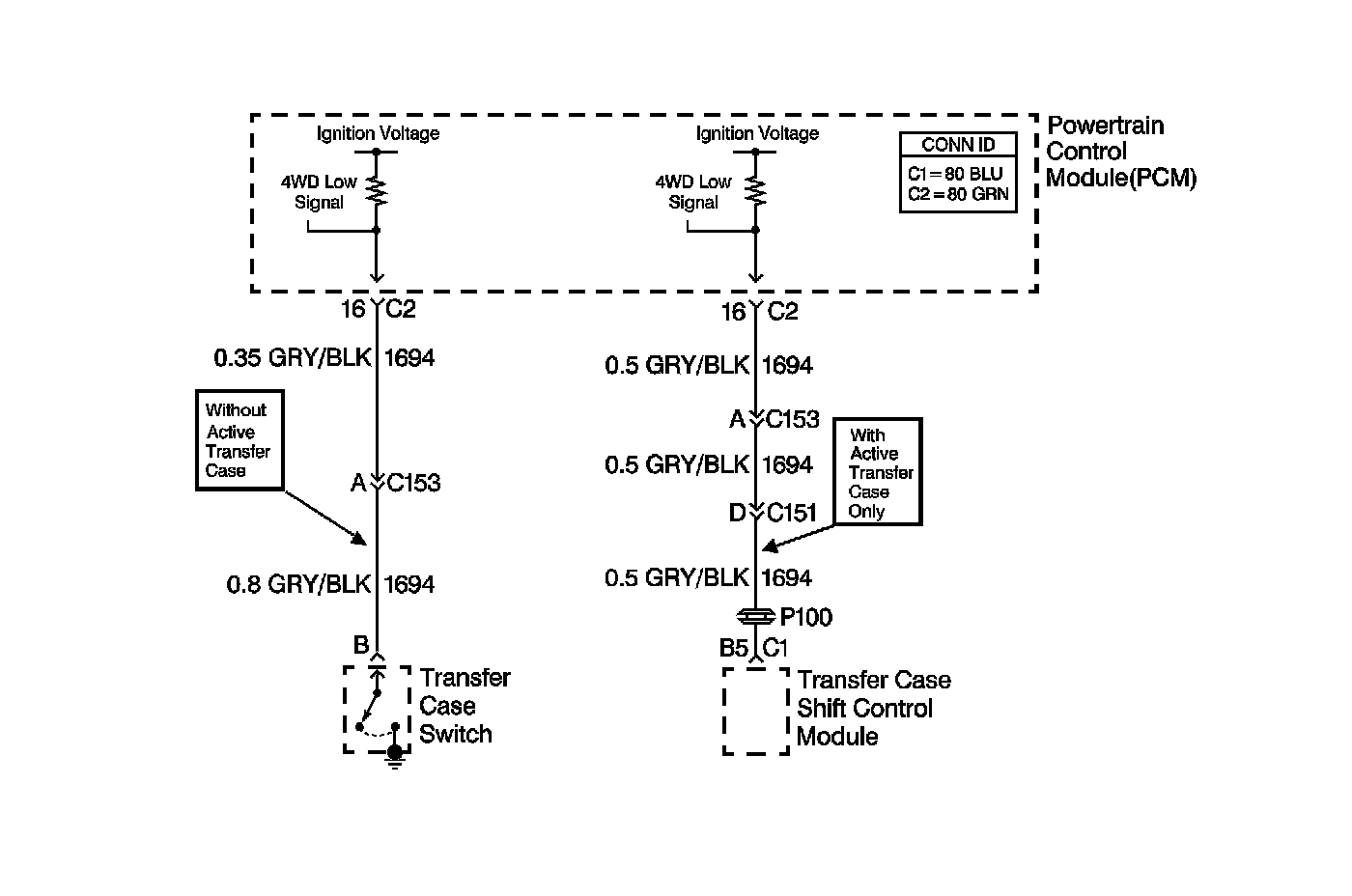

Circuit Description with 4L80-E / 4L85-E Automatic Transmission
Vehicles equipped with an active transfer case have a four-wheel drive (4WD) low circuit consisting of a powertrain control module (PCM), an active transfer case control module, and the circuit wiring. The active transfer case control module controls the 4WD low signal circuit. When the operator selects 4WD low, the active transfer case control module grounds the low signal circuit, and the 4WD low signal voltage on the circuit changes from ignition voltage to zero. The PCM then compensates for transfer case gear reduction in the automatic transmission output shaft speed (AT OSS) signal. The PCM uses the transmission OSS signal to adjust shift points, line pressure and torque converter clutch (TCC) scheduling.

Vehicles not equipped with an active transfer case have a 4WD low circuit consisting of a PCM, transfer case switch, and the circuit wiring. The transfer case switch is used to control the 4WD low signal circuit. When the operator moves the 4WD selector lever to 4WD low, the transfer case switch closes, and the 4WD low signal circuit changes from B+ voltage to zero volts. The PCM then compensates for transfer case gear reduction in the AT OSS sensor readings. The PCM uses the transmission OSS signal in order to adjust shift points, line pressure and TCC scheduling.

If the PCM detects a continuous open or short to ground in the 4WD low signal circuit, then DTC P2771 sets. DTC P2771 is a type C DTC. For California emissions vehicles DTC P2771 is a type B DTC.

Conditions for Running the DTC
^ No MAF DTCs P0101, P0102 or P0103.
^ No MAP sensor DTCs P0106, P0107 or P0108.
^ No TP sensor DTCs P0120 or P0220.
^ No VSS DTCs P0502 or P0503.
^ No ISS DTCs P0716 or P0717.
^ No 1-2 SS valve DTCs P0751, P0752 or P0753.
^ No 2-3 SS valve DTCs P0756, P0757 or P0758.
^ No TFP manual valve position switch DTC P1810.
^ No TCC Stuck Off DTC P0741.
^ No TCC PWM solenoid DTC P2761.
^ Throttle angle is 5-100 percent.
^ The TFT is 20-130°C (68-266°F).
^ The TFP manual valve position switch is D4.
^ The engine torque must be 95-542 Nm (70-400 ft. lbs.).
^ Vehicle speed is 2 km/h (1 mph) or greater.

Conditions for Setting the DTC
One of the following conditions occur:
^ The four-wheel drive low circuit is closed, grounded, for more than 7 seconds with a transfer case ratio of 0.95-1.05:1, for 1 occurrence.
^ The four-wheel drive low circuit is open for 2 seconds, with a transfer case ratio of 2.65-2.76:1 in two different commanded gears, for 2 occurrences.

Action Taken When the DTC Sets
^ The PCM assumes a 4WD low state if measured transfer case ratio is 2.65-2.76.
^ The PCM assumes a non-4WD low state if the measured transfer case ratio is 0.95-1.05.
^ The PCM freezes transmission adaptive functions.
^ The PCM records the operating conditions when the Conditions for Setting the DTC are met. The PCM stores this information as Freeze Frame, California only, and Failure Records, California and Federal.
^ The PCM stores the DTC P2771 in PCM history during the second consecutive trip, California, or the first trip, Federal, in which the Conditions for Setting the DTC are met.

Conditions for Clearing the MIL/DTC
^ For California emissions, the PCM turns OFF the MIL during the third consecutive trip in which the diagnostic test runs and passes.
^ A scan tool can clear the MIL/DTC.
^ For California emissions, the PCM clears the DTC from PCM history if the vehicle completes 40 warm-up cycles without an emission related diagnostic fault occurring.
^ For Federal emissions, the PCM clears the DTC from PCM history if the vehicle completes 40 warm-up cycles without a non-emission related diagnostic fault occurring.
^ The PCM cancels the DTC default actions when the fault no longer exists and the ignition switch is OFF long enough in order to power down the PCM.

Diagnostic Aids
^ Low pump pressure and a slipping transmission may cause DTC P2771 to set.
^ Transfer case ratio is calculated by dividing the ISS by the OSS.

Test Description

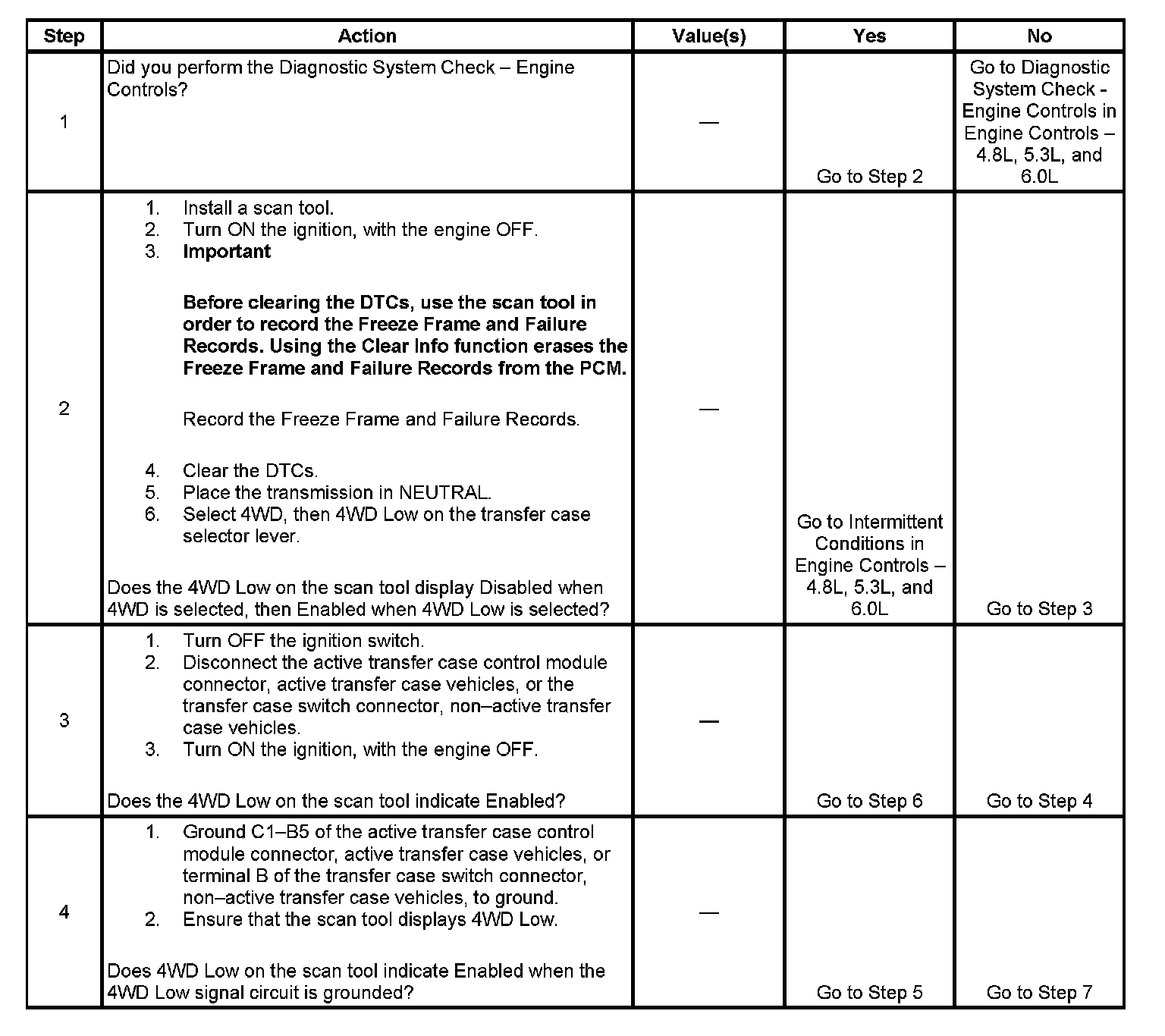

Steps 1-4:

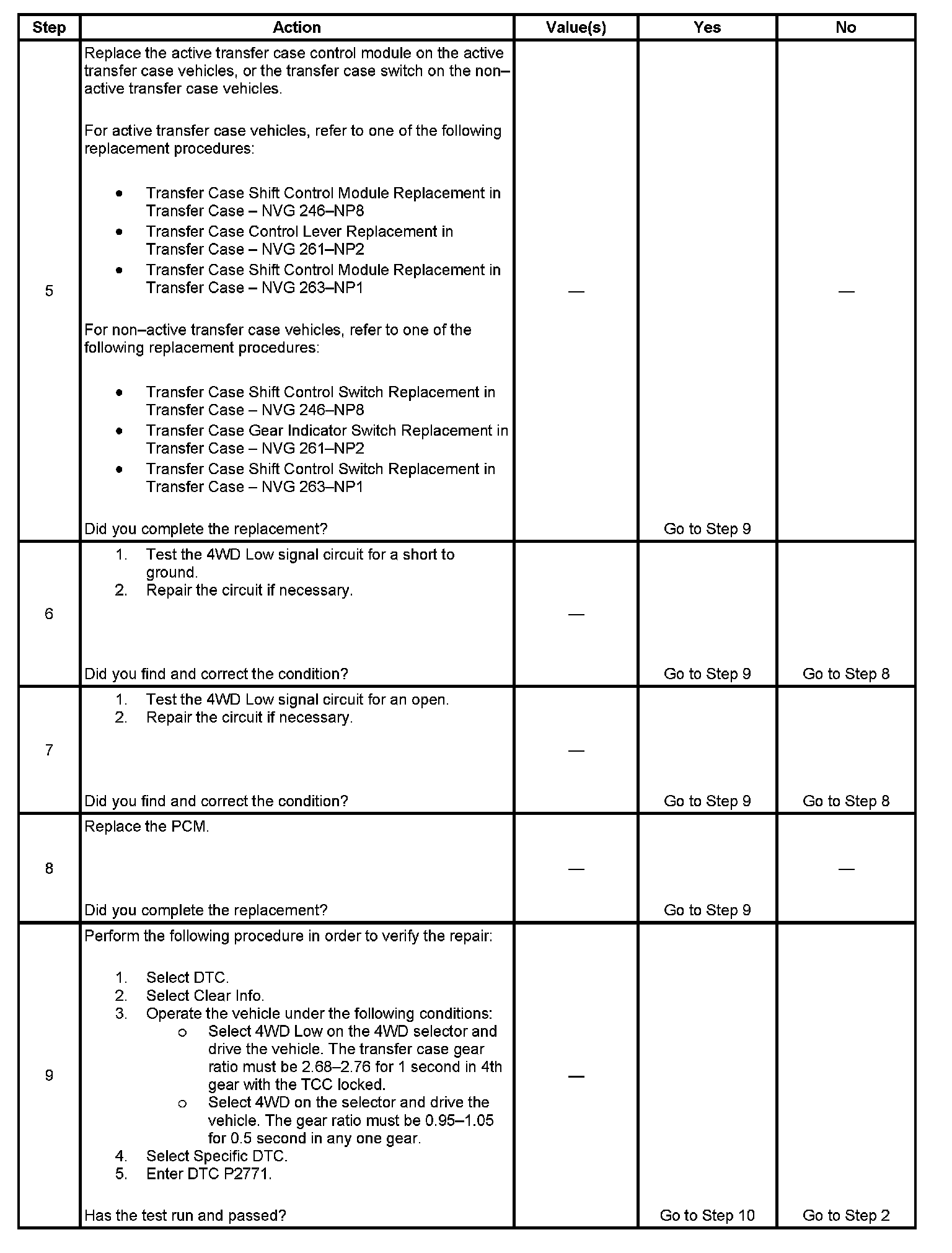

Steps 5-9:

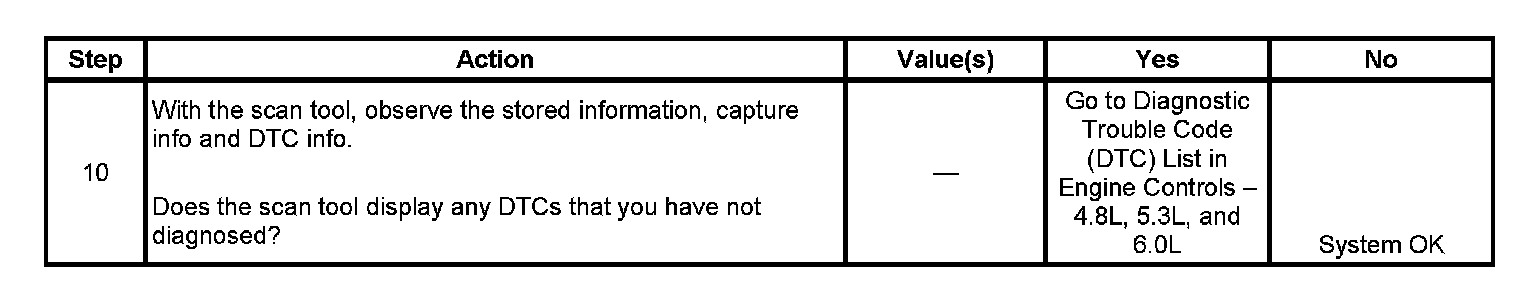

Step 10:

The numbers below refer to the step numbers on the diagnostic table.
3. This step tests for a short to ground in the 4WD Low signal circuit.
4. This step tests for an open in the 4WD Low signal circuit, a faulty transfer case control module, active transfer case vehicles, or transfer case switch, non-active transfer case vehicles.
