Home
>>
Chevrolet
>>
2004
>>
Silverado 2500 2WD V8-6.6L DSL Turbo VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
C305 - C399
>>
C396 Body Harness to Right Rear Door Harness (Crew Cab)
C396 Body Harness to Right Rear Door Harness (Crew Cab)

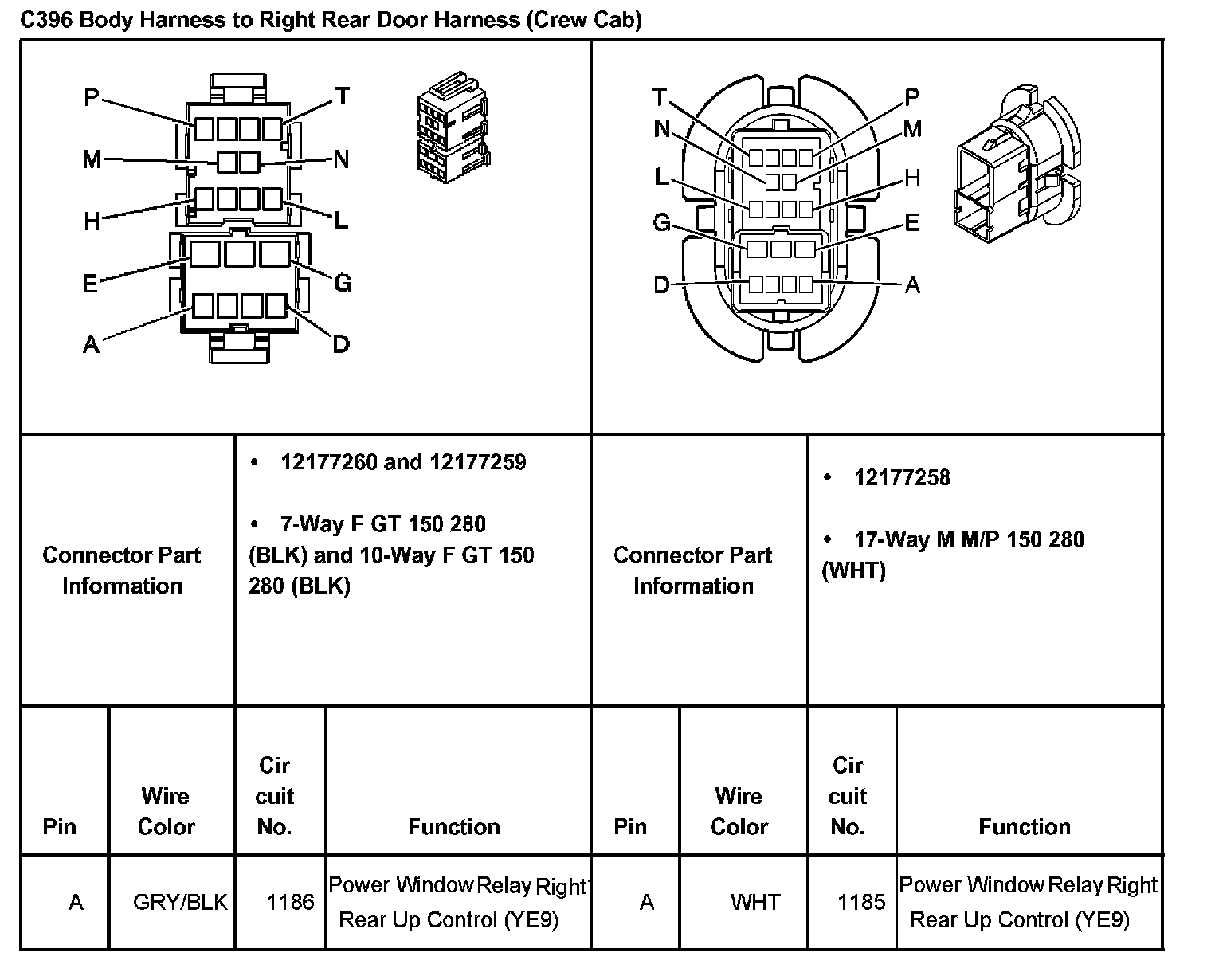

C396 Body Harness To Right Rear Door Harness (Crew Cab) Part 1:

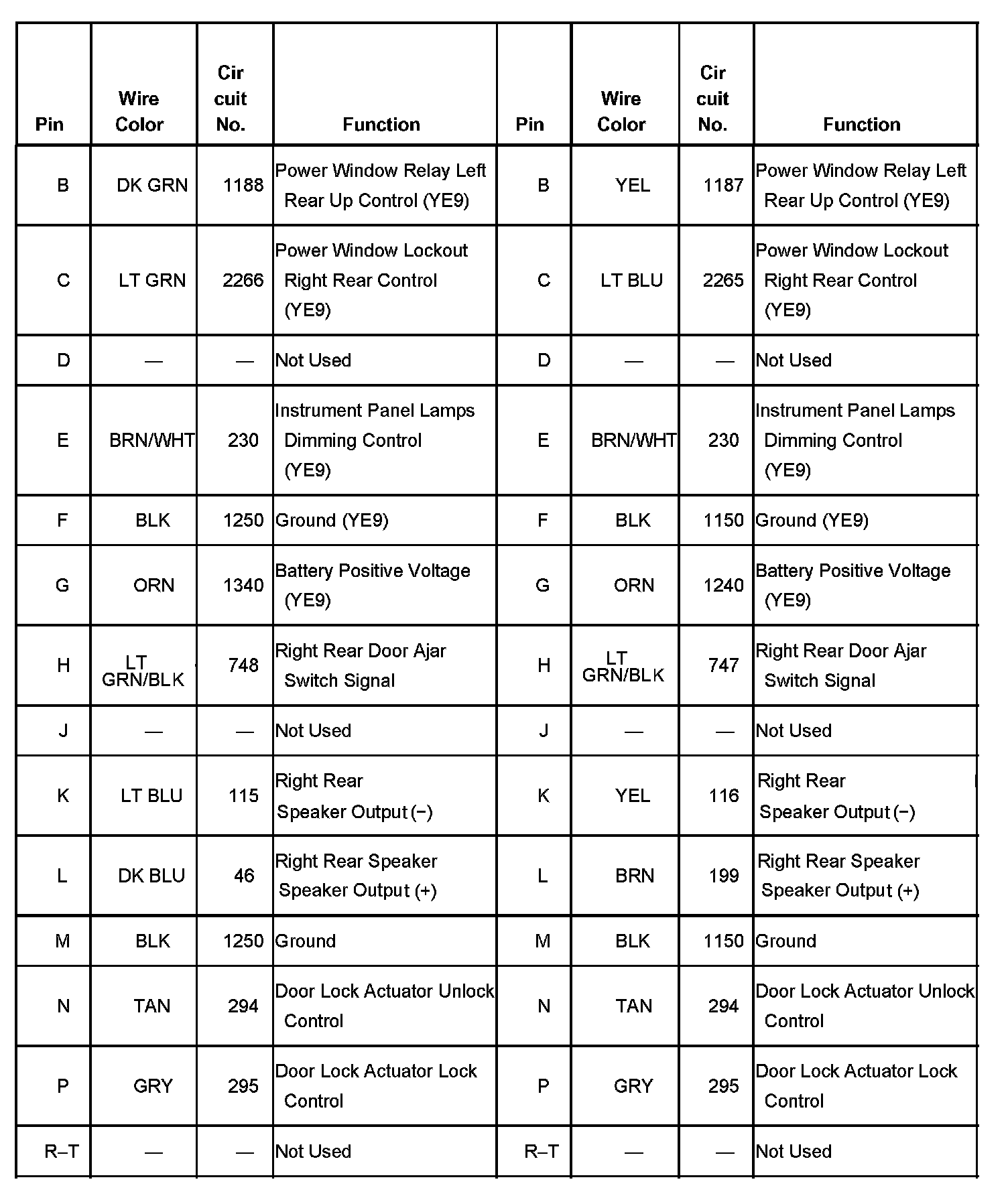

C396 Body Harness To Right Rear Door Harness (Crew Cab) Part 2:
