P0802
DTC P0802CIRCUIT DESCRIPTION
The transmission control module (TCM) malfunction indicator lamp (MIL) request circuit signals the engine control module (ECM) that the TCM is requesting MIL illumination.
DTC DESCRIPTOR
This diagnostic procedure supports the following DTC:
DTC P0802 Transmission Control Module (TCM) MIL Request Circuit
CONDITIONS FOR RUNNING THE DTC
The ignition is ON.
CONDITIONS FOR SETTING THE DTC
The ECM is detecting an improper voltage level on the TCM MIL request circuit.
ACTION TAKEN WHEN THE DTC SETS
- The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
- The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.
CONDITIONS FOR CLEARING THE MIL/DTC
- The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
- A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
- A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
- Clear the MIL and the DTC with a scan tool.
TEST

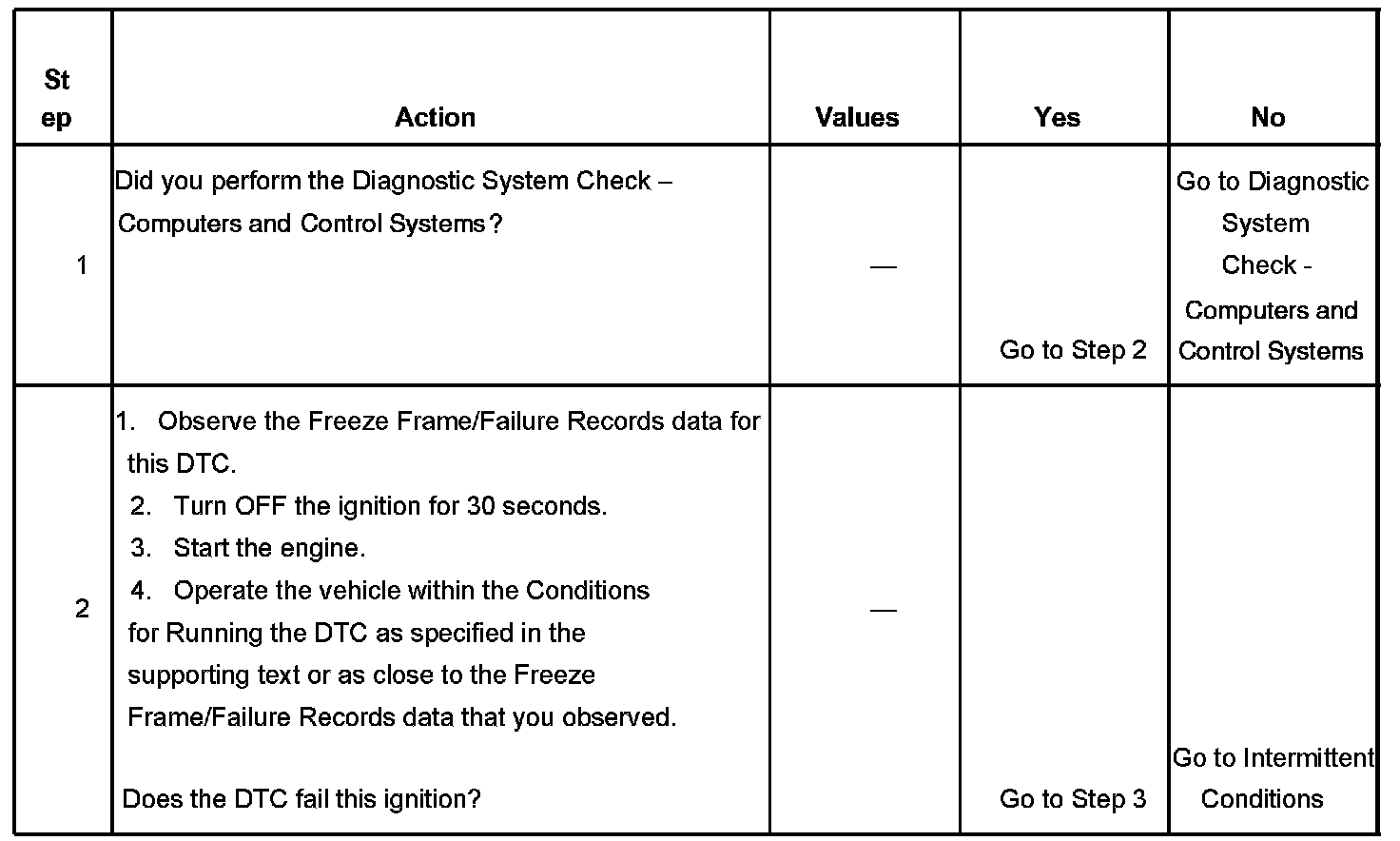

Steps 1-2:

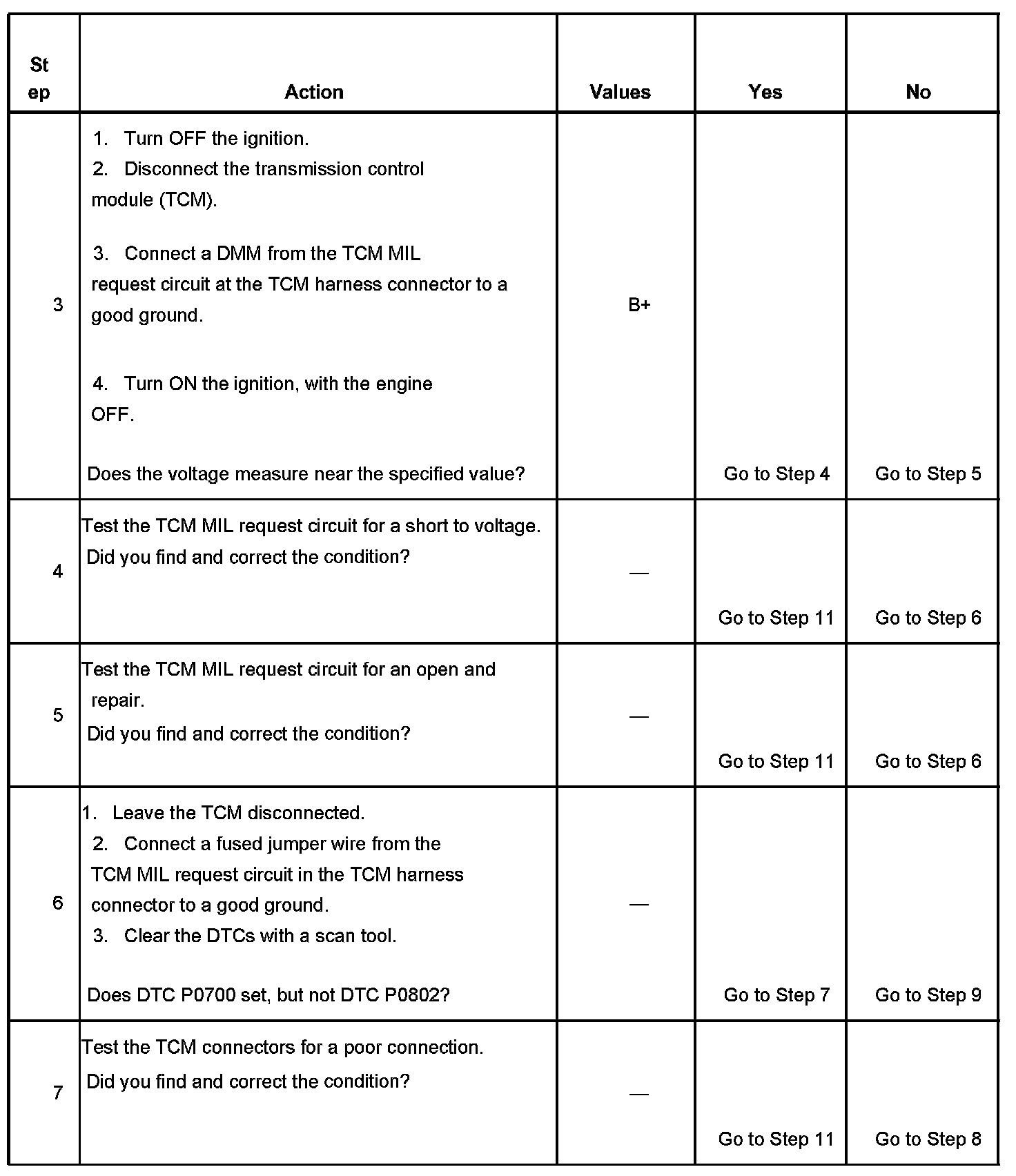

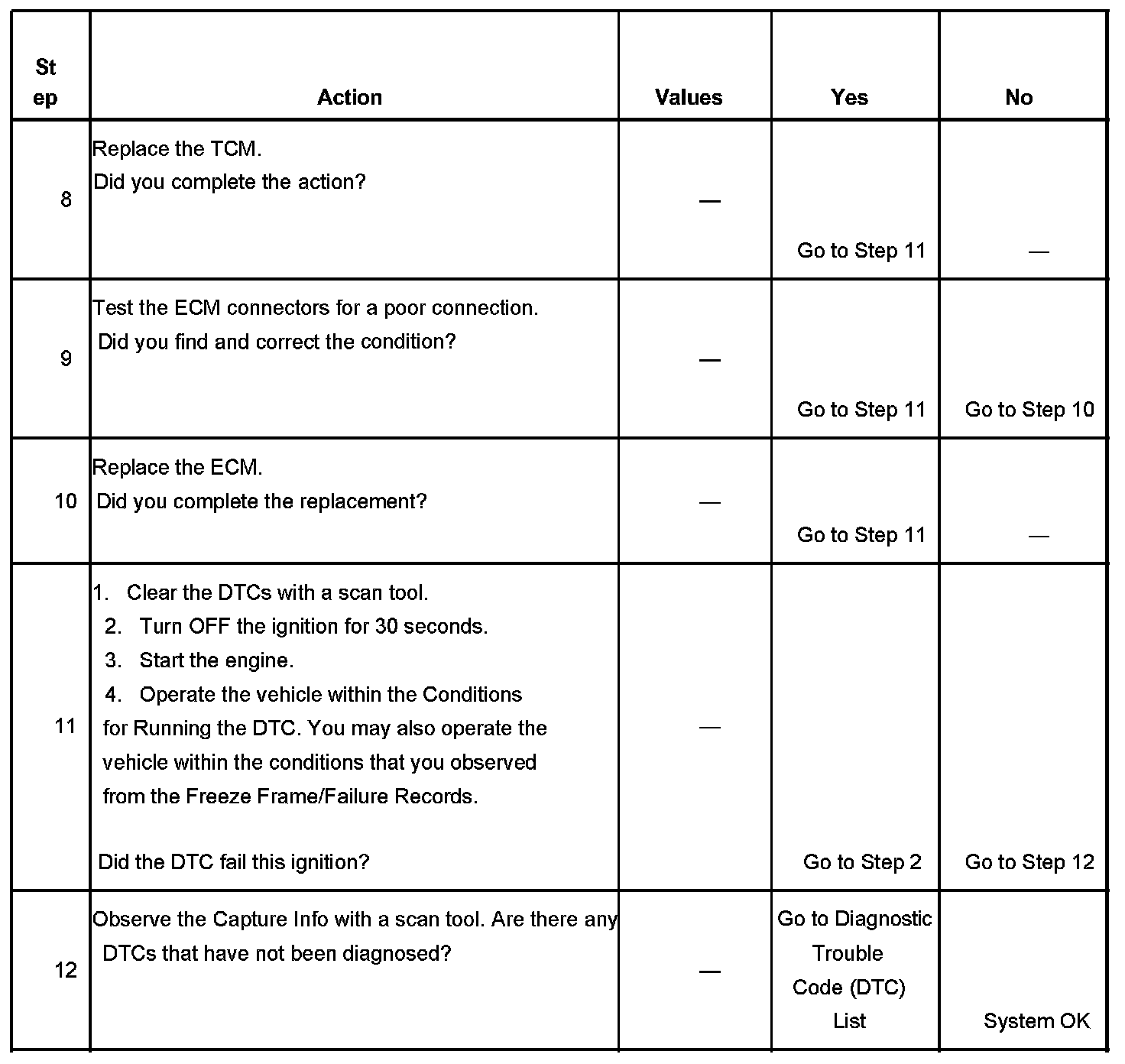

Steps 3-7:
