Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2004
>>
Silverado 2500 2WD V8-6.6L DSL Turbo VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Switch
>>

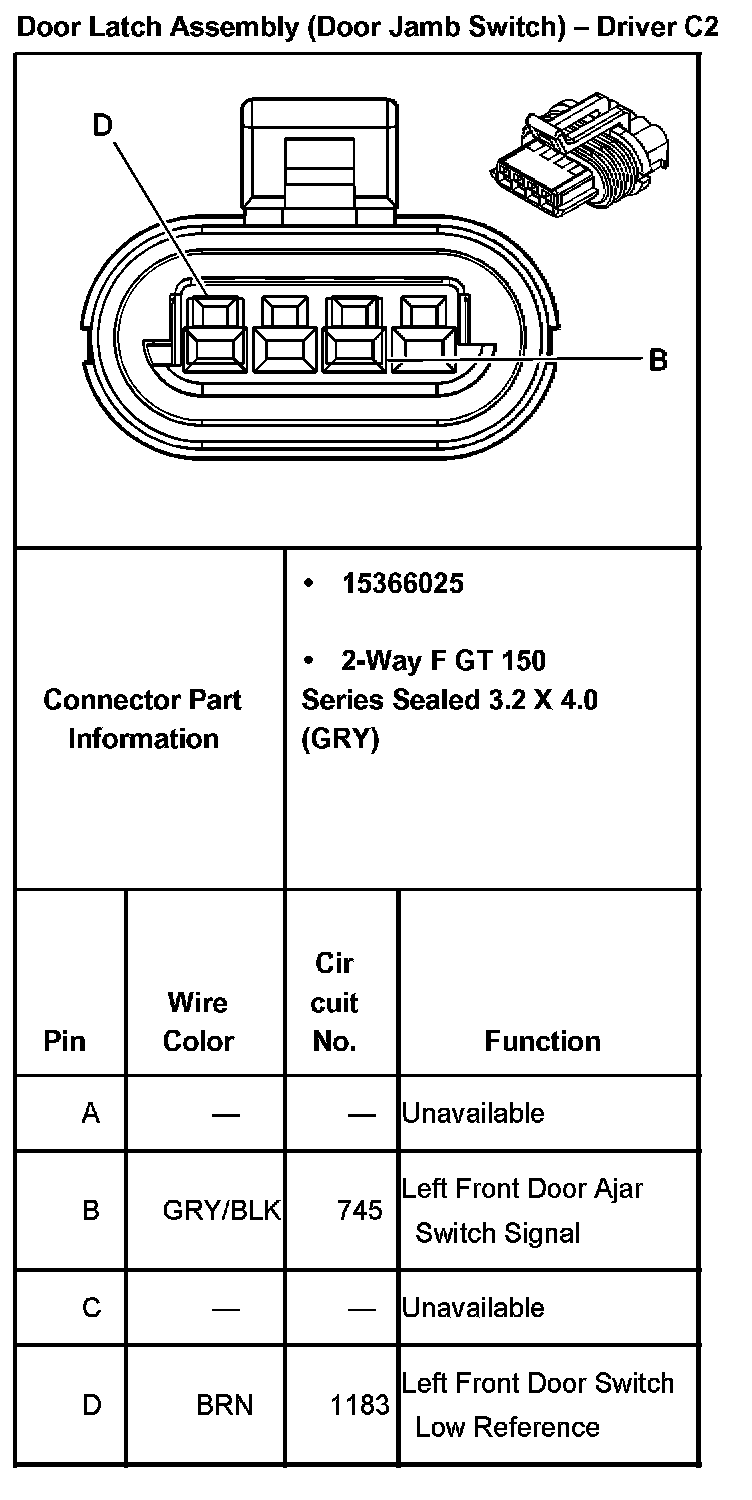

Door Latch Assembly (Door Jamb Switch) - Driver C2
Door Latch Assembly (Door Jamb Switch) - Driver C2
Door Latch Assembly (Door Jamb Switch) - Driver C2:
Door Latch Assembly (Door Jamb Switch) - Driver - C2:
