Without RPO PHT

A/C System Pressure - Zone Classification:

A/C System Pressure Zone Classification:

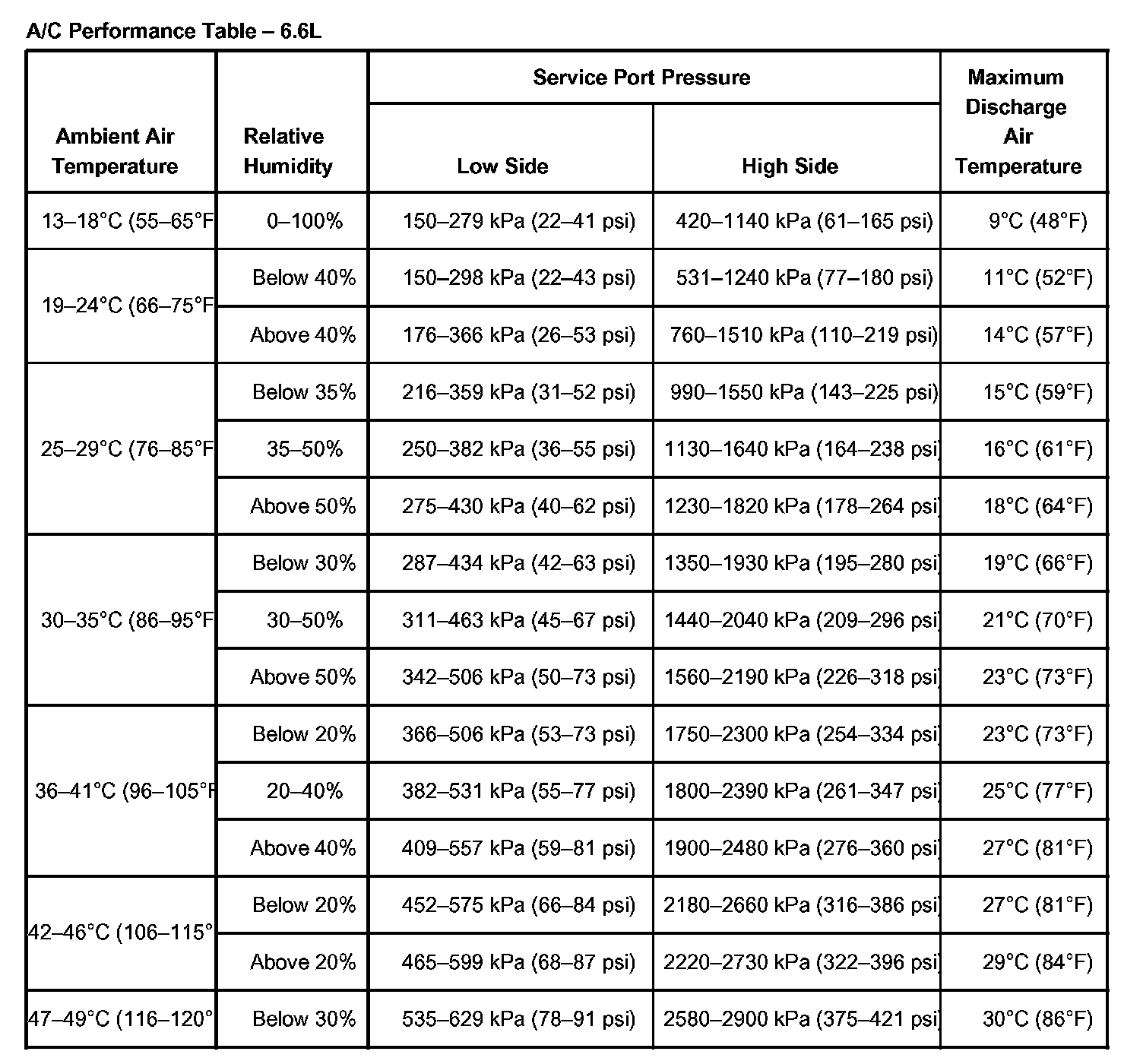

A/C Performance Table:
