Scan Tool Data List - Instrument Panel Cluster (IPC)
Scan Tool Data List - Instrument Panel Cluster (IPC)

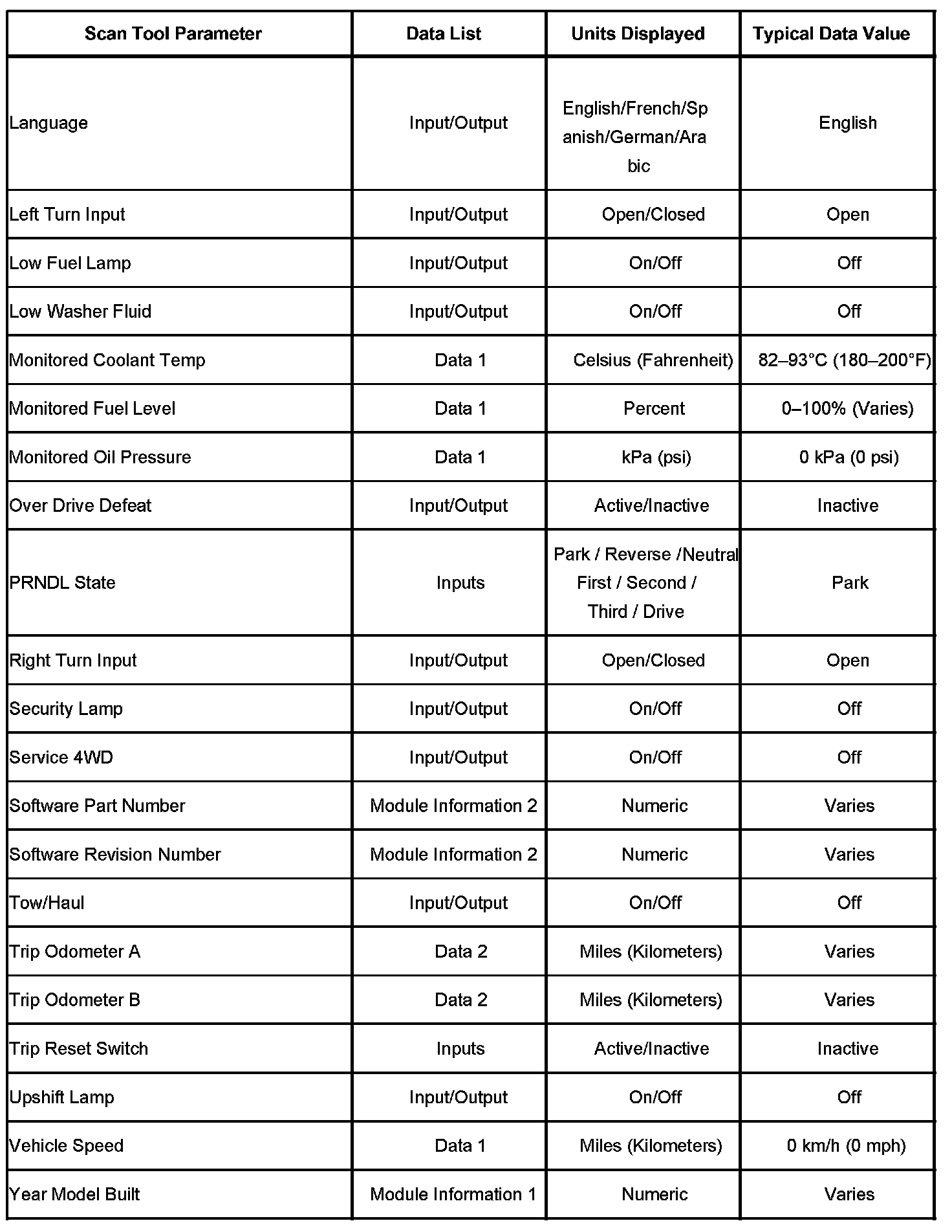

Instrument Panel Cluster (IPC) part 1:
Instrument Panel Cluster (IPC) Part 2:
Instrument Panel Cluster (IPC) Part 3:
