Electrical Diagrams

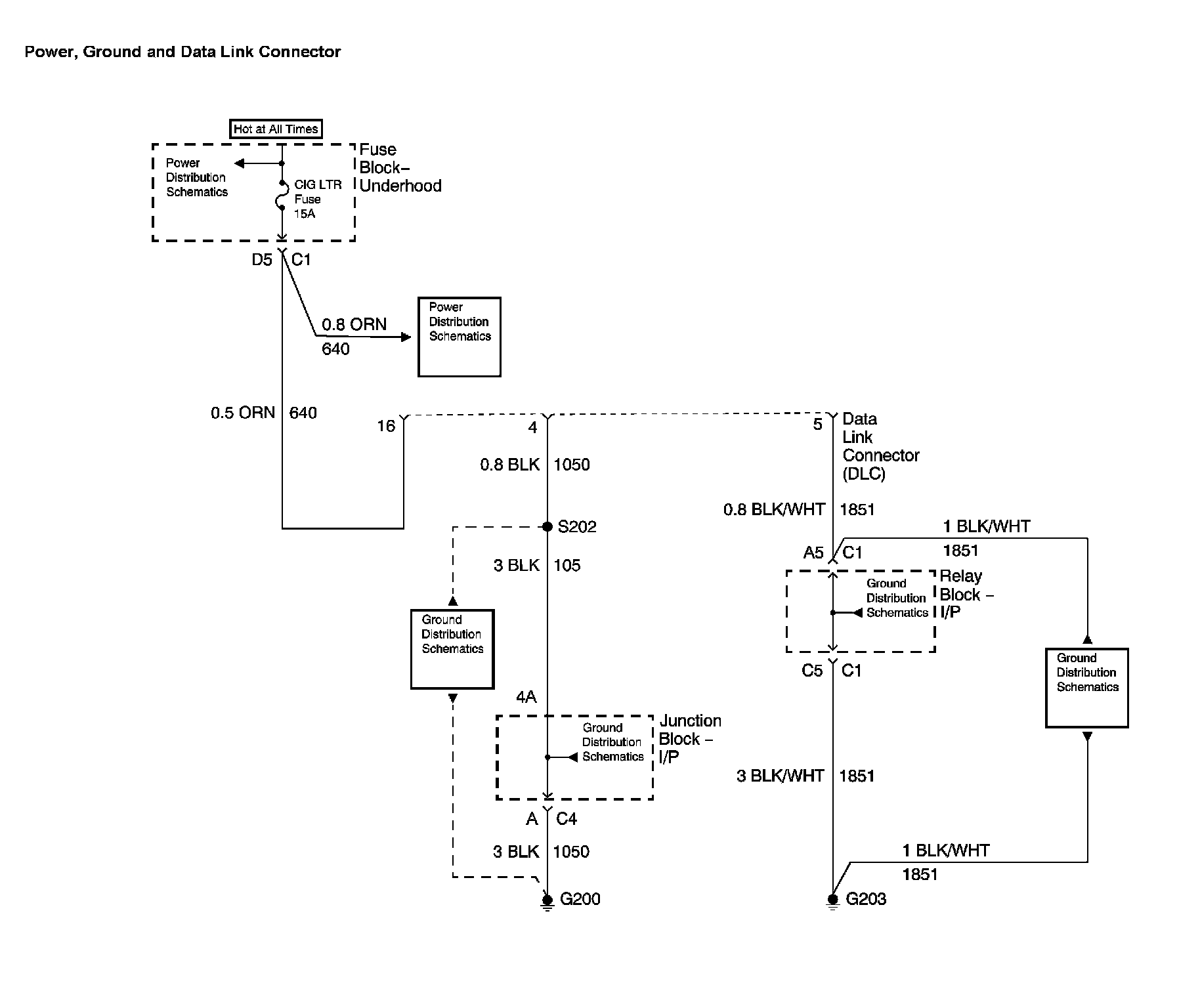

Data Link Connector (DLC) Diagram 1:




Data Link Connector (DLC) Diagram 2 (1 Of 2):




Data Link Connector (DLC) Diagram 2 (2 Of 2):




Data Link Connector (DLC) Diagram 3:




Data Link Connector (DLC) Diagram 4:
