Front Fender Liner: Service and Repair

Fender Liner Replacement

Removal Procedure

1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
2. Remove the following components from the vehicle:

1. The screw
2. The 11 plastic retainers

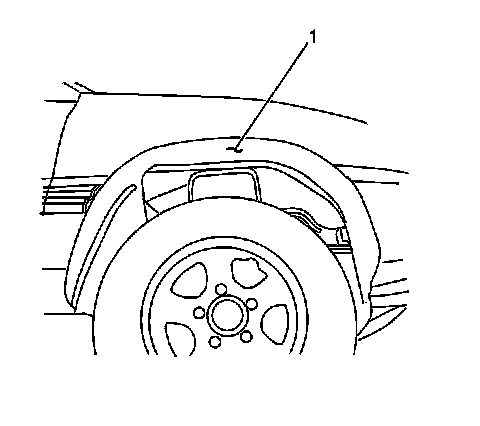

3. The front fender liner (1)

Installation Procedure

1. Install the front fender liner (1) to the vehicle. Secure the liner with the 11 plastic retainers and 1 screw.
2. Lower the vehicle.
