Grille Replacement

Grille Replacement

Removal Procedure

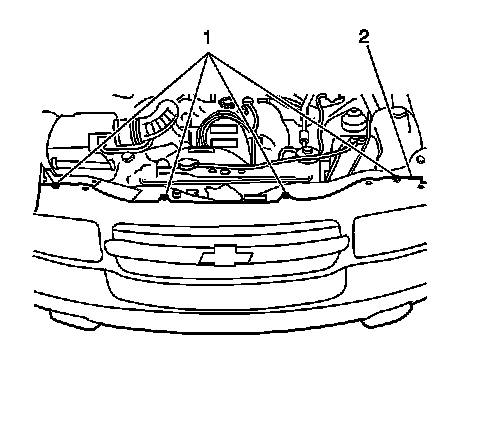

1. Remove the 4 plastic retainers (1) from the top of the radiator grille (2).
2. Gently pull the radiator grille (2) from the vehicle by releasing the plastic retainers.

Installation Procedure

1. Install the radiator grille (2) to the vehicle. Ensure that the plastic retainers are fully engaged.
2. Install the 4 plastic retainers (1) along the top of the radiator grille (2).
