Power Door Lock Relay: Service and Repair

LOCK RELAY REPLACEMENT - POWER DOOR

REMOVAL PROCEDURE
1. Remove the instrument panel steering column opening trim plate.




2. Slide the LOCK or the UNLOCK relay from the remote control door lock receiver bracket.

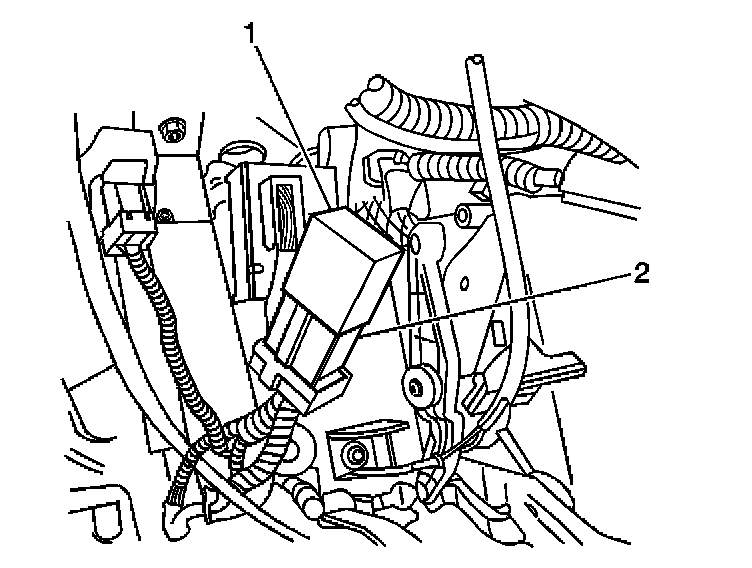

3. Remove the relay (1) from the relay connector (2).

INSTALLATION PROCEDURE
1. Install the relay (1) to the relay connector (2).




2. Slide the relay onto the remote control door lock receiver bracket.
3. Install the instrument panel steering column opening trim plate.
