Heated Oxygen Sensor (HO2S) 2 Replacement
HO2S BANK 1 SENSOR 2NOTE: Refer to Heated Oxygen and Oxygen Sensor Notice in Service Precautions.
REMOVAL PROCEDURE
IMPORTANT: The HO2S may be difficult to remove at temperatures above 48°C (120°F). In order to prevent damage to any threads in the exhaust manifold, allow the exhaust system to cool down before attempting to remove the HO2S.
1. Disconnect the HO2S 2 electrical connector.
2. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
CAUTION: Refer to Vehicle Lifting Caution in Service Precautions.

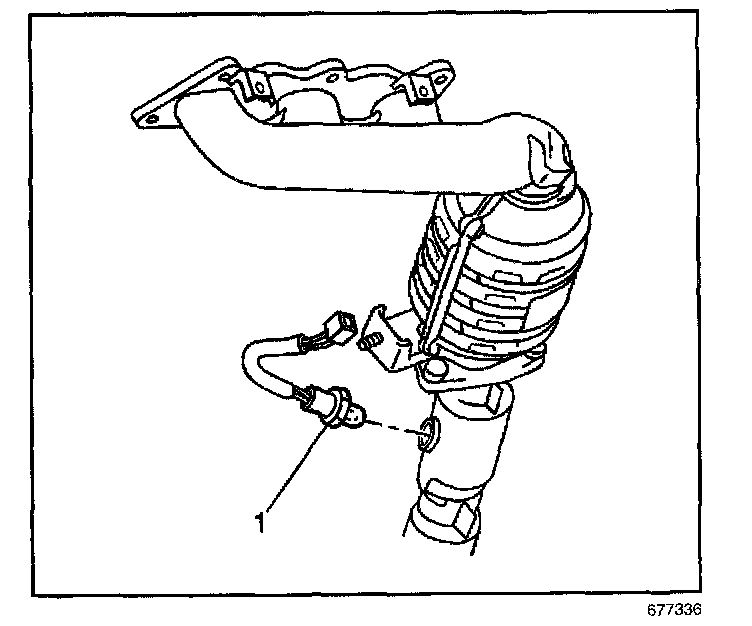

3. Remove the HO2S 2 (1) from the exhaust pipe below the catalytic converter.
INSTALLATION PROCEDURE
1. Install HO2S 2 (1) into the exhaust pipe below the catalytic converter.
NOTE: Refer to Component Fastener Tightening Notice in Service Precautions.
IMPORTANT: The new HO2S 1 comes with an antiseize coating on the sensor threads. Take precautions in order to prevent the removal of any of the antiseize coating prior to installation. If the sensor was removed and is being reinstalled, an antiseize compound must be applied to the threads before installation.
Tighten
Tighten HO2S sensor to 45 N.m (32 lb ft).
2. Lower the vehicle.
3. Connect the HO2S 2 electrical connector.
HO2S BANK 2 SENSOR 2
NOTE: Refer to Heated Oxygen and Oxygen Sensor Notice in Service Precautions.
REMOVAL PROCEDURE
IMPORTANT: The HO2S may be difficult to remove at temperatures above 48°C (120°F). In order to prevent damage to any threads in the exhaust manifold, allow the exhaust system to cool down before attempting to remove the HO2S.
1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
CAUTION: Refer to Vehicle Lifting Caution in Service Precautions.
2. Disconnect the HO2S 2 electrical connector.

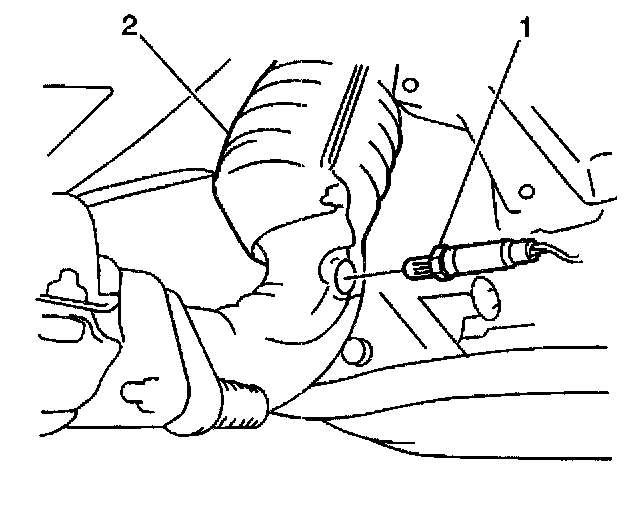

3. Remove the HO2S 2 (1) from the exhaust pipe below the catalytic converter (2).
INSTALLATION PROCEDURE
1. Install HO2S 2 (1) into the exhaust pipe below the catalytic converter (1).
NOTE: Refer to Component Fastener Tightening Notice in Service Precautions.
IMPORTANT: The new HO2S 2 comes with an antiseize coating on the sensor threads. Take precautions in order to prevent the removal of any of the antiseize coating prior to installation. If the sensor was removed and is being reinstalled, an antiseize compound must be applied to the threads before installation.
Tighten
Tighten HO2S sensor to 45 N.m (32 lb ft).
2. Connect the HO2S 2 electrical connector.
3. Lower the vehicle.
