17. Secondary Timing Chain Removal - Right

Secondary Timing Chain Removal- Right





1. Remove the engine front cover.
2. Remove the left secondary timing chain.
3. Remove the primary timing chain.
4. Remove the 2 bolts and the timing chain guide (1).





5. Remove the camshaft bearing cap bolts in the proper sequence.
6. Remove the camshaft bearing caps.





7. Remove the camshafts and secondary timing chain as a set.

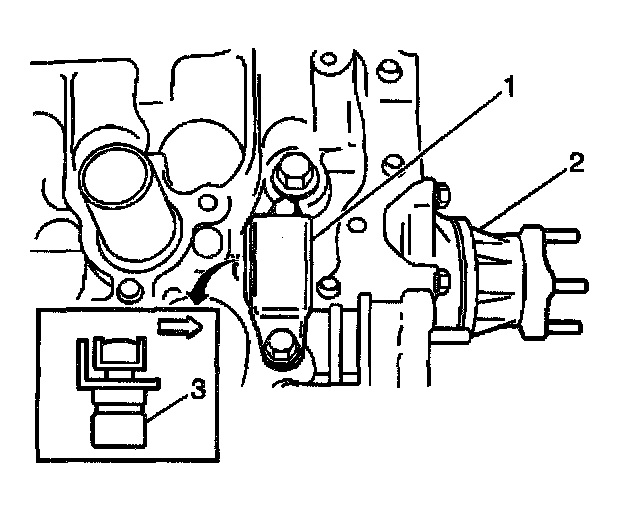

8. Remove the 2 bolts and the timing chain tensioner (1).
