Mirror Replacement

MIRROR REPLACEMENT

REMOVAL PROCEDURE
1. Remove the door trim panel.
2. Remove the outside rear view mirror (ORVM) harness from the door.

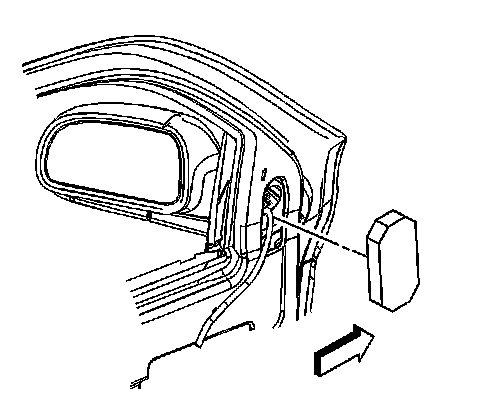

3. Remove the side door insulator.




4. Remove the 3 ORVM retaining bolts.
5. Release the clip that retains the ORVM to the door.
6. Remove the ORVM assembly from the door.

INSTALLATION PROCEDURE




1. Install the ORVM assembly to the door. Ensure that the retaining clip is fully seated.
2. Install the 3 ORVM retaining bolts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the bolts to 10 N.m (88 lb in).




3. Install the side door insulator.
4. Install the ORVM harness to the door.
5. Install the door trim panel.
