Heater Case/Cover Replacement

HEATER CORE COVER REPLACEMENT - AUXILIARY

REMOVAL PROCEDURE
1. Remove the right rear quarter trim panel.

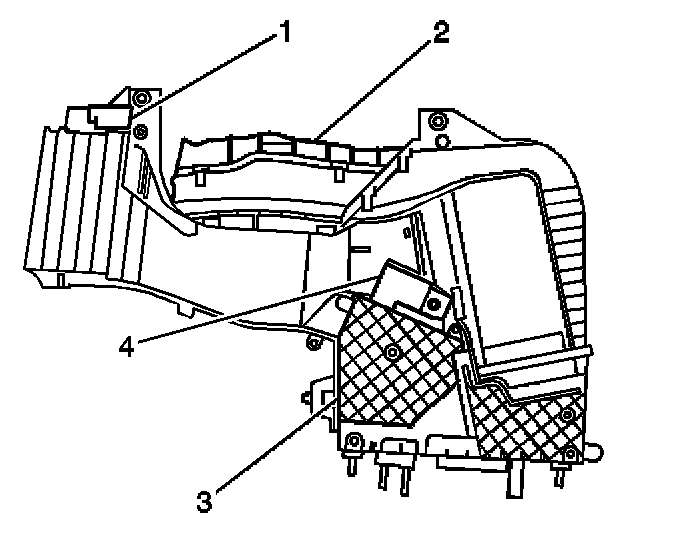

2. Remove the screws from the heater core cover-auxiliary (3).
3. Remove the heater core cover-auxiliary (3).



INSTALLATION PROCEDURE

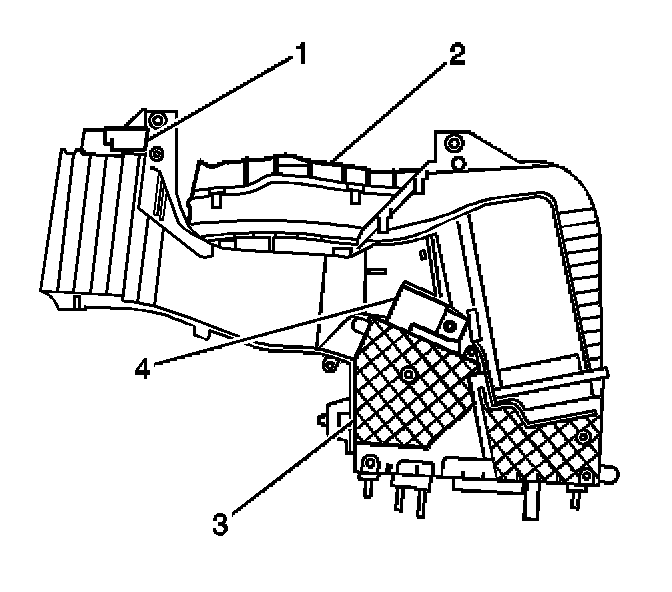

1. Install the heater core cover-auxiliary (3).
2. Install the screws to the heater core cover-auxiliary.

NOTE: Refer to Fastener Notice in Service Precautions.
Vehicle Damage Warnings

Tighten
Tighten the screws to ......2 N.m (18 lb in).

3. Install the right rear quarter trim panel.
