Ignition Coil: Diagrams

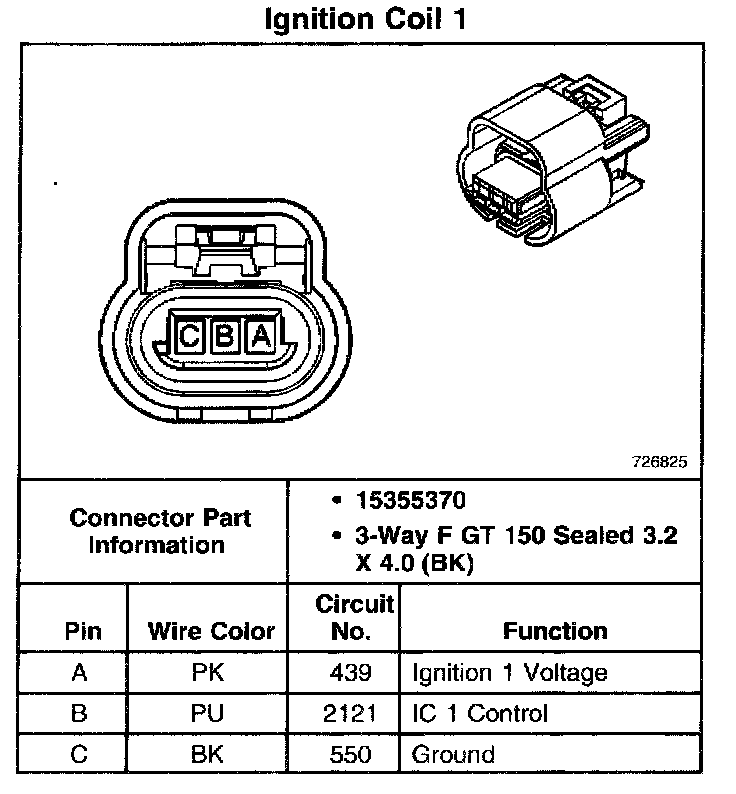

Ignition Coil 1:
Ignition Coil 2:

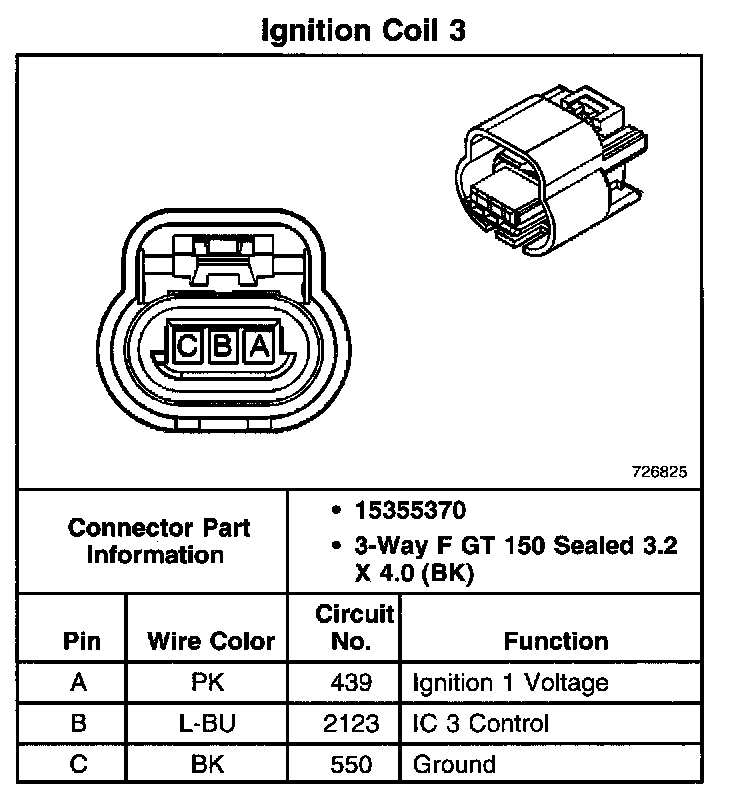

Ignition Coil 3:
Ignition Coil 4:

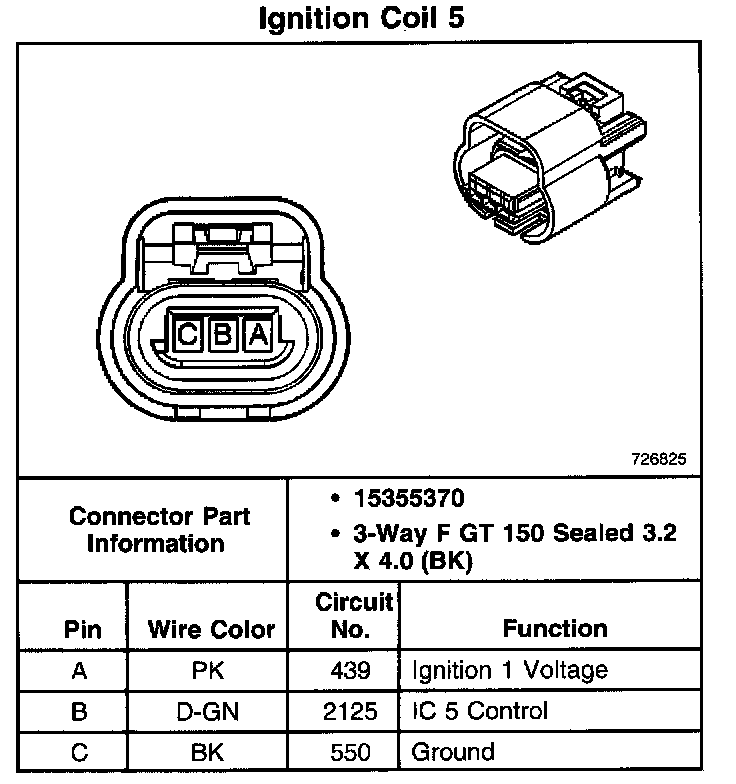

Ignition Coil 5:
Ignition Coil 6:
