Refrigerant Pressure Sensor / Switch: Locations

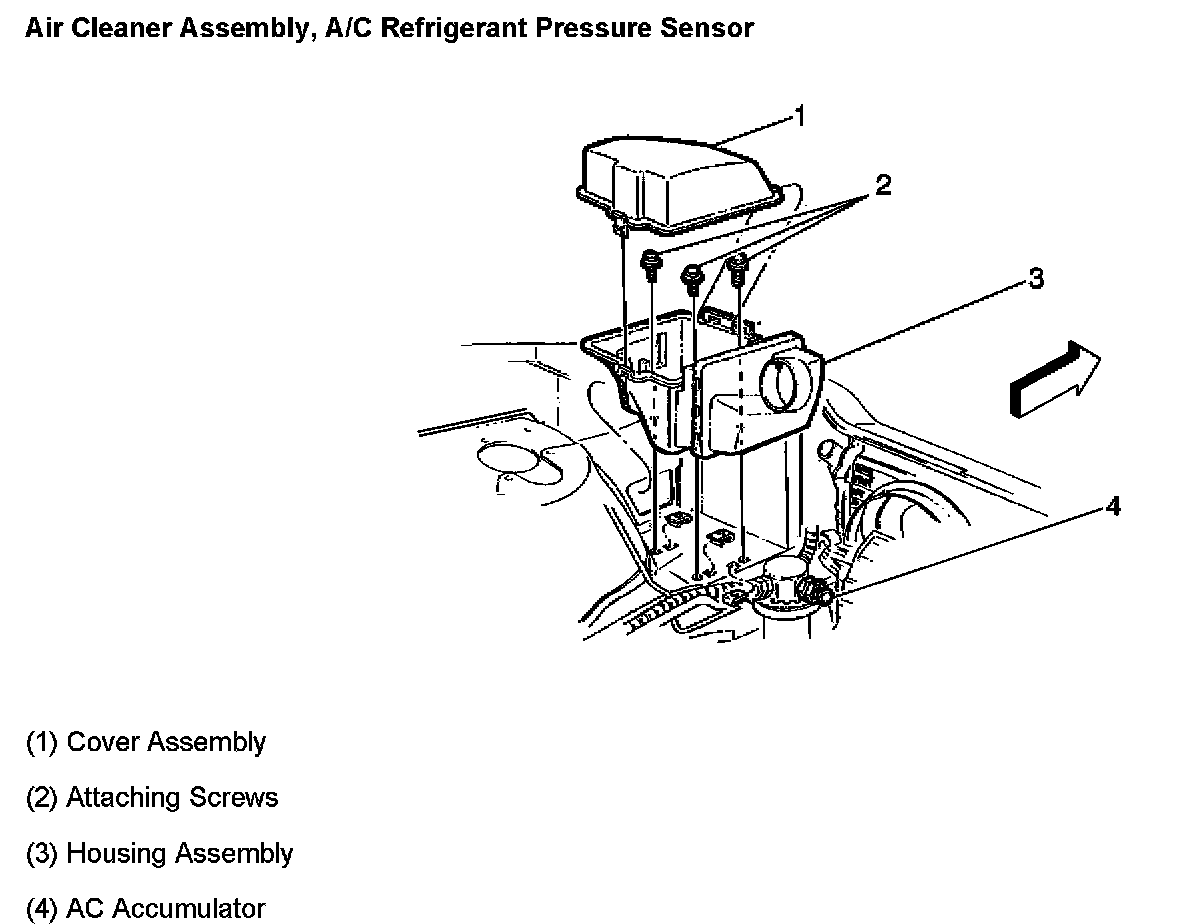

Air Cleaner Assembly, A/C Refrigerant Pressure Sensor:

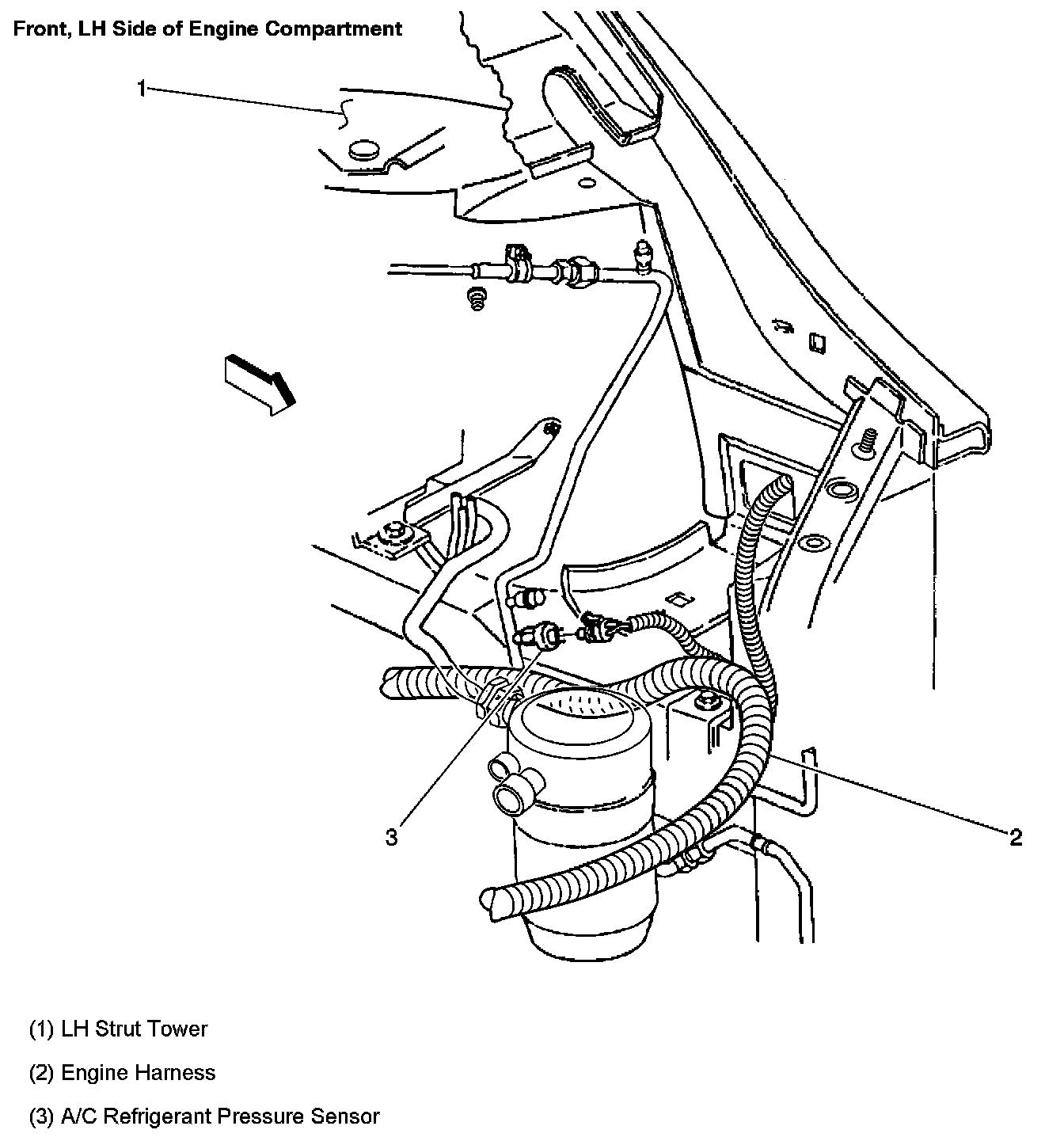

Front, LH Side of Engine Compartment:
